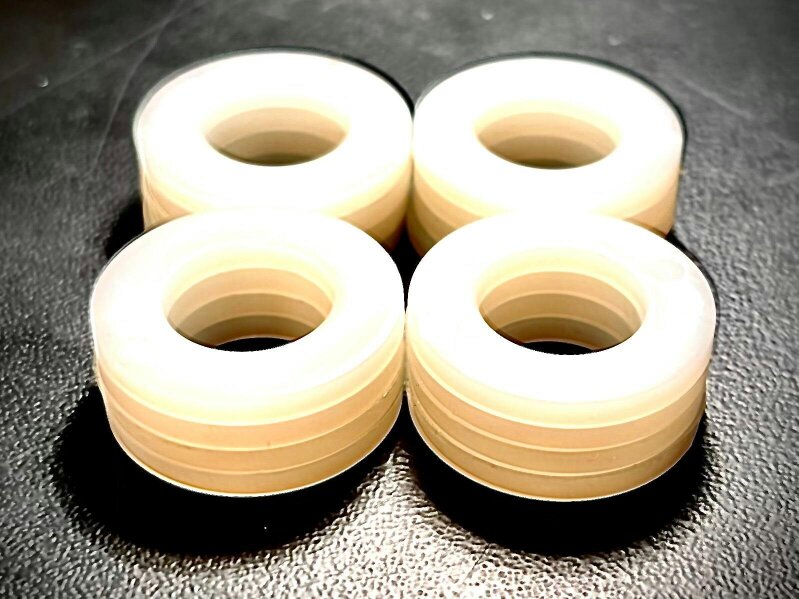

Fixaball Metric Washers Nylon Plastic Form A Flat M4 - M24

For lightweight fastening applications, these Fixaball Form A flat washers are made from natural white nylon and manufactured to DIN 125A. The range covers metric sizes from M4 to M24, making them suitable where a nylon washer is required to sit between fastened components.

Form A washers are commonly used to help distribute pressure at fixing points, protect contact surfaces, assist with tightening and loosening, and control spacing between connected parts.

Available options

• M4 DIN125A flat natural nylon washer
• M5 DIN125A flat natural nylon washer
• M6 DIN125A flat natural nylon washer
• M8 DIN125A flat natural nylon washer
• M10 DIN125A flat natural nylon washer
• M12 DIN125A flat natural nylon washer
• M16 DIN125A flat natural nylon washer
• M20 DIN125A flat natural nylon washer
• M24 DIN125A flat natural nylon washer

Key features

• Form A flat washer
• Natural white nylon
• DIN 125A
• Metric sizes available from M4 to M24
• Pack quantity selectable

Sizing

• M4: 4.3mm internal diameter, 9.0mm outside diameter, 0.8mm thickness
• M5: 5.3mm internal diameter, 10mm outside diameter, 1.0mm thickness
• M6: 6.4mm internal diameter, 12mm outside diameter, 1.6mm thickness
• M8: 8.4mm internal diameter, 16mm outside diameter, 1.6mm thickness
• M10: 10.5mm internal diameter, 20mm outside diameter, 2.0mm thickness
• M12: 13mm internal diameter, 24mm outside diameter, 2.5mm thickness
• M16: 17mm internal diameter, 30mm outside diameter, 3.0mm thickness
• M20: 21mm internal diameter, 37mm outside diameter, 3.0mm thickness
• M24: 25mm internal diameter, 44mm outside diameter, 4.0mm thickness
