Fixaball M6 Throughbolts A4 Stainless Steel Masonry Anchor ETA Option 7

For masonry and non-cracked concrete fixings, the Fixaball M6 throughbolt provides a heavy duty expansion anchor in A4/316 stainless steel. It is suitable for non-cracked concrete, masonry including brick and blocks, and non-porous stone, with use in concrete over C20/25 strength.

This torque controlled anchor is intended for through fixing, with the hole diameter matching the bolt diameter so the fixing can be passed through the fixture once positioned. ETA Option 7 approval supports use in non-cracked concrete applications, including installations where close edge distances or close anchor spacing are required.

Key features

• Diameter: M6
• Material: A4/316 stainless steel
• ETA Approved Option 7
• Suitable for non-cracked concrete, masonry, brick, blocks and non-porous stone
• Torque controlled anchor
• Hole diameter matches bolt diameter for through fixing

Specifications

• Suitable for use in concrete over C20/25 strength
• Installation temperature range for base material: -5 / + 40 ºC
• 80 ºC for a short period of time

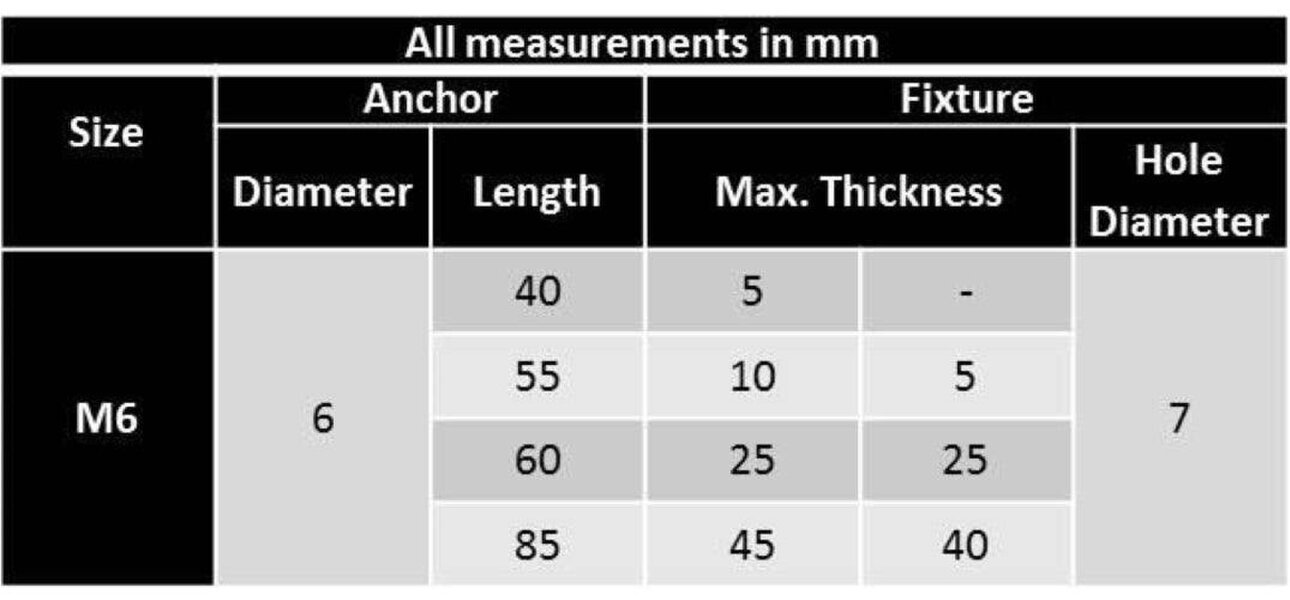

Sizing

• Anchor hole size 6mm, anchor length 40mm
• Anchor hole size 6mm, anchor length 67mm
• M6, anchor diameter 6, length 50, max. thickness 10, hole diameter -
• M6, anchor diameter 7, length 65, max. thickness 25, hole diameter 5
• M6, anchor diameter 85, length 45, max. thickness 25
• M6, anchor diameter 100, length 60, max. thickness 40

Safety information

• Check the concrete strength, grade and edge distance before installation to ensure the substrate is suitable.
• Use only in compact, crack-free concrete.
• Minimum installation depth, anchor-to-anchor distances and anchor-to-edge distances must always be respected.
• Drill to the specified minimum depth and diameter, perpendicular to the base material surface.
• Take care when drilling near reinforcement areas to avoid damage.
• Clean holes thoroughly to remove dust and debris with a suitably sized brush.
• When temperature is below 0ºC, ensure water does not seep into the hole.
• Insert the anchor through the material to be fixed up to the embedment depth according to the stated values.
• Do not apply any intermediate layer between the material to be fixed and the washer, including sealing products.
• Apply the specified torque with a torque wrench.
• If the holes in the material to be fixed are larger than required, a thicker washer of bigger diameter is necessary.
