Fixaball M8 Throughbolts A2 Stainless Steel Heavy Duty Masonry Concrete Anchor

For masonry and concrete fixings, the Fixaball M8 throughbolt provides a stainless steel expansion anchor in A2/304 grade. It is suitable for fixing materials to non-cracked concrete, masonry including brick and blocks, and non-porous stone.

This torque-controlled anchor is intended for through fixing, with the hole diameter matching the bolt diameter. It allows the fixing to pass through the fixture once positioned, which is useful when securing awkward fixtures in place. The anchor is suitable for use in concrete over C20/25 strength.

Available options

• 50mm length
• 75mm length
• 95mm length
• 120mm length

Key features

• Diameter: M8
• Material: A2/304 stainless steel
• Expansion anchor for non-cracked concrete, masonry and non-porous stone
• Torque-controlled anchor
• Suitable for concrete over C20/25 strength

Specifications

• Anchor hole size: 8mm
• Hole diameter: 9mm
• Installation temperature range for base material: -5 / + 40 ºC (80 ºC for a short period of time)

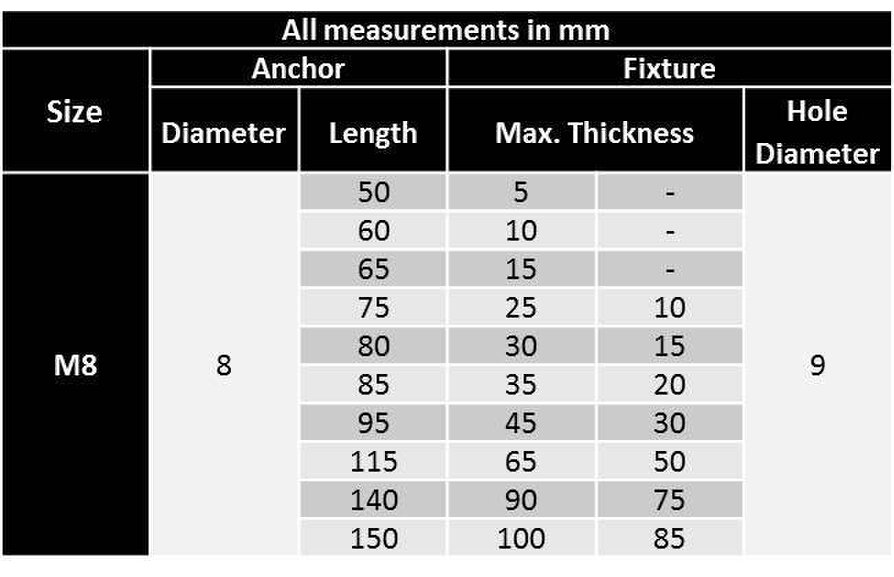

Sizing

• Anchor length: 50mm
• Anchor length: 75mm
• Anchor length: 95mm
• Anchor length: 120mm

Safety information

• Check the concrete strength, grade and edge distance before installation to ensure suitability.
• The concrete base must be compact and crack free.
• Minimum installation depth values must always be respected for anchor depth, anchor-to-anchor distances and anchor-to-edge distances.
• Drill to the specified minimum depth and diameter, perpendicular to the base material surface.
• Take special care when drilling near reinforcement areas to avoid damage.
• Clean holes thoroughly to remove dust and debris before installation.
• When temperature is below 0ºC, ensure water does not seep into the hole.
• Do not apply any intermediate layer between the material being fixed and the washer.
• Apply the specified torque with a torque wrench.
