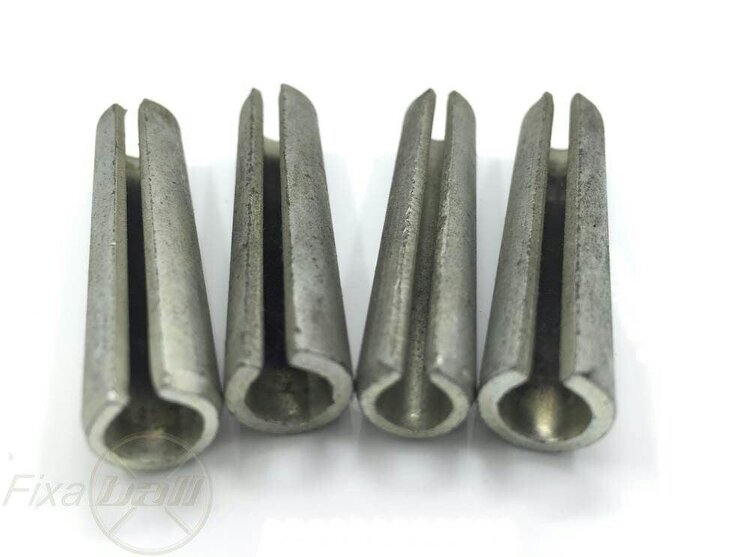

Fixaball 6mm Spring Tension Pin Stainless Coiled Roll Slotted Heavy

For mechanical fastening where a self-retaining pin is required, the Fixaball 6mm slotted spring pin is supplied in A1 stainless steel and produced in a heavy type to ISO 8752 and DIN 1481. It is suited to securing the position of two or more machine parts relative to each other.

The body diameter is larger than the hole diameter, allowing the pin to compress as it is driven into place. Radial force against the hole wall retains it in position, and the chamfered end helps with insertion. This type is intended for double shear applications.

Available options

• 6.0 x 12
• 6.0 x 14
• 6.0 x 16
• 6.0 x 18
• 6.0 x 20
• 6.0 x 24
• 6.0 x 26
• 6.0 x 28
• 6.0 x 30
• 6.0 x 32
• 6.0 x 36
• 6.0 x 40

Key features

• Diameter: 6mm
• Material: A1 stainless steel
• Heavy type
• Slotted spring pin
• Self-retaining fastener
• Suitable for double shear applications
• Standards: ISO 8752, DIN 1481

Sizing

• 6.0 x 12
• 6.0 x 14
• 6.0 x 16
• 6.0 x 18
• 6.0 x 20
• 6.0 x 24
• 6.0 x 26
• 6.0 x 28
• 6.0 x 30
• 6.0 x 32
• 6.0 x 36
• 6.0 x 40

Rackhams Reference : ZI4U9KWBBQ
