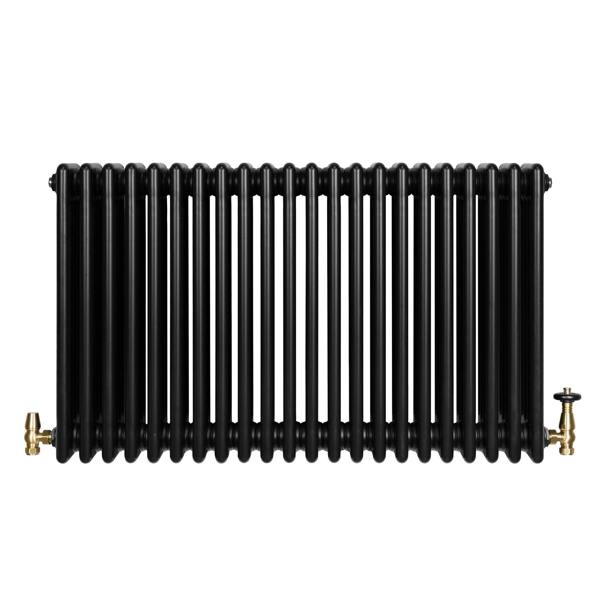

Monstershop Traditional 4 Column Radiator & Valves - 600 x 1010mm - Black

A bold, traditional profile meets a contemporary finish in the Monstershop Traditional 4 Column Radiator & Valves. This horizontal radiator comes in black with a triple layered powder-coated finish, bringing a strong visual statement to living spaces, hallways and larger rooms.

Made from 1.5mm carbon steel, it measures 600mm high by 1010mm wide, with a radiator depth of 140mm (155mm with bracket). Heat output is rated at 3437 BTU @ 50 and 4367 BTU @ 60, with watt ratings of 1007 @ 50 and 1280 @ 60. Standard 0.5" BSP inlets/outlets support straightforward integration, and the set includes satin brass thermostatic valves in an angled style, with rotary control and a 6–28 degrees temperature range. CE and UKCA certification is included, alongside testing to BS EN 442 and ISO9001:2015 standards.

Key features

• Traditional style horizontal radiator with black finish
• 4 column design with 22 columns
• 1.5mm carbon steel construction
• Triple layered powder coating
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled thermostatic valve set in brass
• Includes secure brackets, fixing kit and flexible cleaning brush
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Weight: 51kg
• Finish: Triple layered powder coating
• Height: 600mm / 60cm / 23.6”
• Width: 1010mm / 101cm / 39.8”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 22
• BTU rating @ 50: 3437
• BTU rating @ 60: 4367
• Watt rating @ 50: 1007
• Watt rating @ 60: 1280
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 13m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Colour: Brass
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
