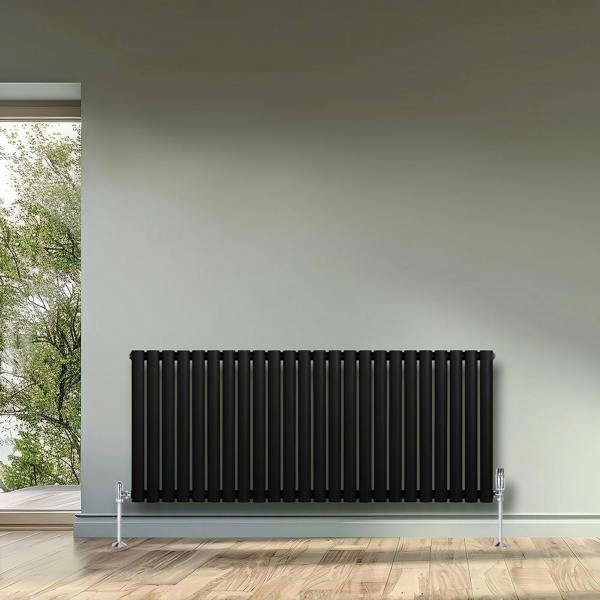

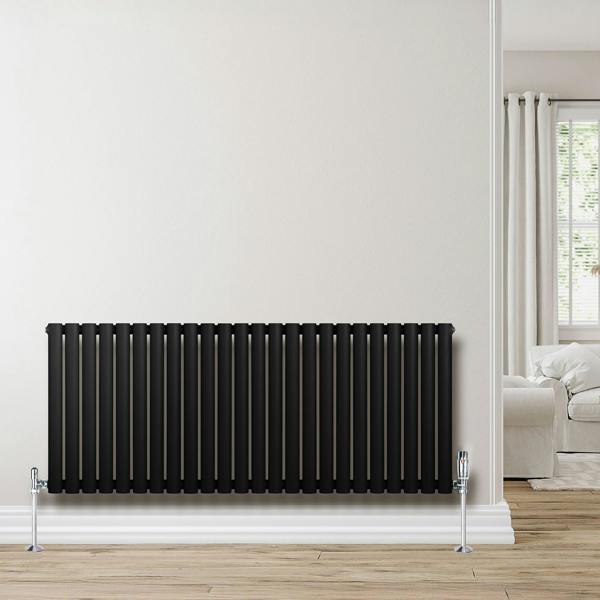

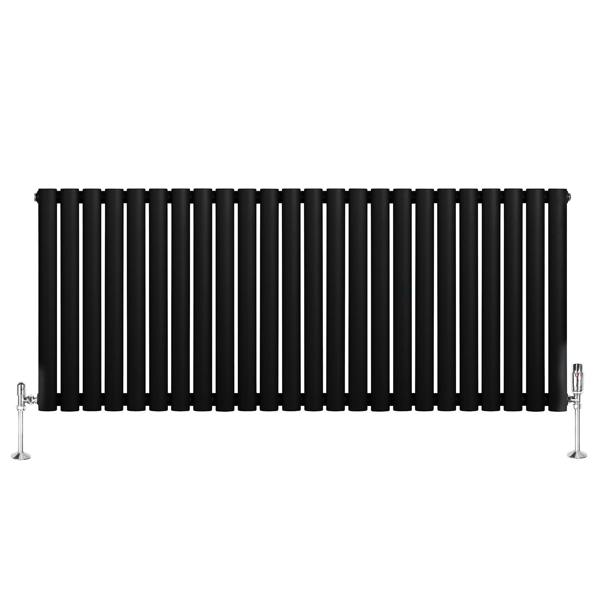

Monstershop Oval Single Column Radiator & Valves – 600mm x 1440mm – Black

Bring a bold, architectural look to your heating with the Monstershop Oval Single Column Radiator & Valves set. Finished in black with a triple layered powder coating, this 600mm x 1440mm radiator pairs clean lines with a substantial 24-column design, creating a striking feature for contemporary interiors.

Made from 1.5mm carbon steel and tested to BS EN 442 and ISO9001:2015 standards, it delivers a BTU rating @ 60 of 4674 (1369 watts @ 60), with a maximum working temperature of 95°C and maximum working pressure of 10 bar. Standard 0.5" BSP inlets/outlets support straightforward compatibility with UK and EU heating systems. A polished chrome thermostatic valve set is included, with angled connections and rotary control for temperature adjustment from 6–28 degrees.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• 600mm x 1440mm size with 24 columns
• Black finish with triple layered powder coating
• BTU rating @ 60: 4674; watt rating @ 60: 1369
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with rotary knob control (6–28 degrees)
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee on radiator; 10-year guarantee on valves

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 23.9kg
• Height: 600mm / 60cm / 23.6”
• Width: 1440mm / 144cm / 56.7”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• Number of columns: 24
• BTU rating @ 50: 3706
• BTU rating @ 60: 4674
• Watt rating @ 50: 1086
• Watt rating @ 60: 1369
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 14m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 554mm / 55.4cm / 21.8”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary knob
• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : 21DBSUTBN6
