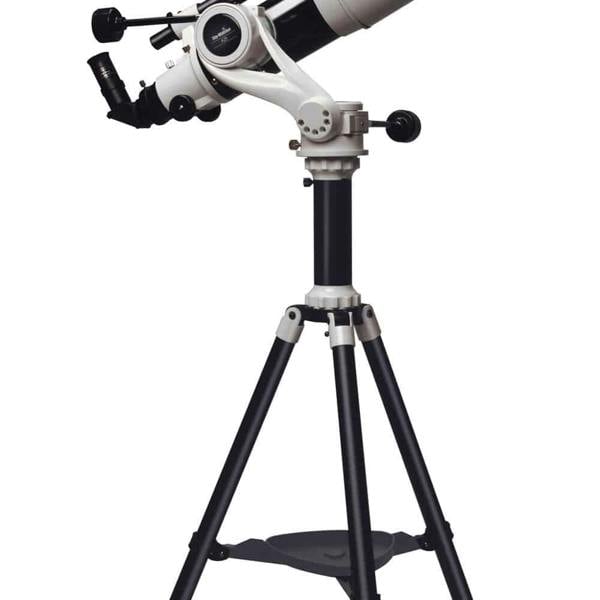

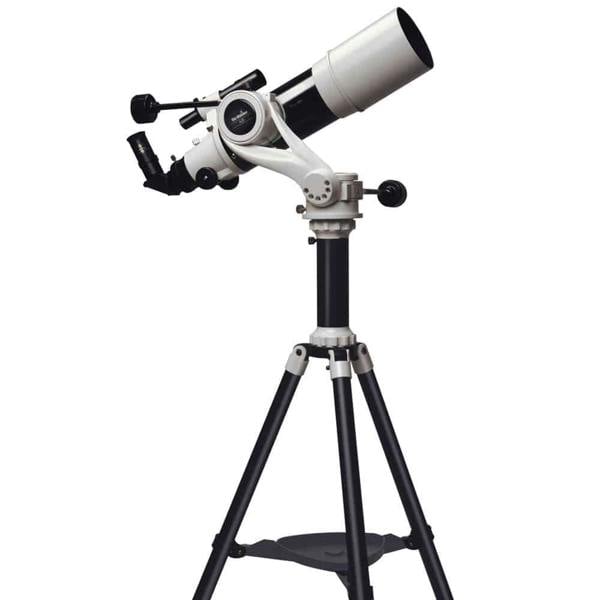

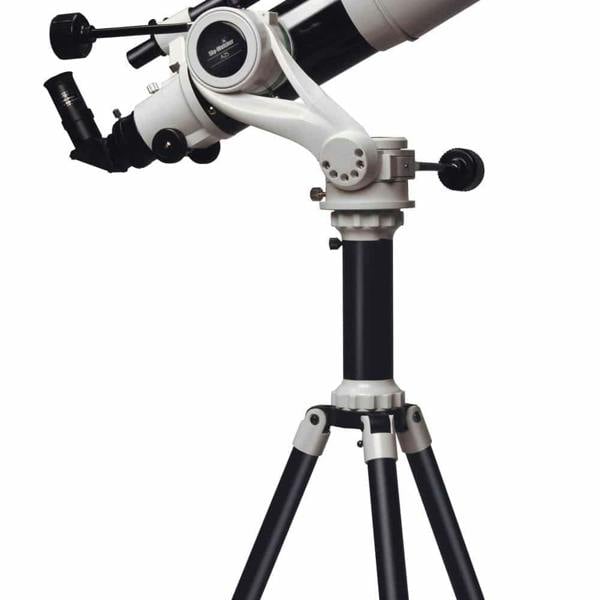

Sky Watcher Startravel 102 Refractor Astronomy Telescope with AZ5 Mount

Wide-field observing comes naturally to the Sky-Watcher Startravel 102, an achromatic refractor telescope paired here with the AZ5 deluxe alt-azimuth mount. With a 102mm aperture, 500mm focal length and fast f/4. 9 optical system, it is set up for rich-field astronomy as well as upright terrestrial viewing via the supplied 90 erect image diagonal.

The two-element, air-spaced objective is fully multi-coated, and the telescope is supplied with 10mm and 25mm eyepieces for x50 and x20 magnification. Sky-Watcher includes a 6x30 finderscope, dual-fit 1. 25"/2" focuser and an aluminium tripod with accessory tray. The AZ5 mount provides manual control on both altitude and azimuth axes, with continuous 360 azimuth rotation and an altitude range of -50 to +90. This combination suits beginners looking for a straightforward first telescope and also works well as a compact option for visual astronomy, daytime observation and fixed-aperture photography.

Key features

• 102mm achromatic refractor optical tube
• 500mm focal length with f/4. 9 focal ratio
• AZ5 deluxe manual alt-azimuth mount
• Two-element, air-spaced, fully multi-coated objective
• Dual-fit 1. 25"/2" focuser
• Direct SLR camera connection
• 90 erect image diagonal included
• 1-year warranty
• Model number: 10261

Specifications

Optics

• Optical design: Achromatic refractor
• Aperture: 102mm
• Focal length: 500mm
• Focal ratio: f/4. 9
• Highest practical power: x204
• Supplied magnifications: x20 and x50
• Eyepieces supplied: 10mm and 25mm
• Objective lens: 1. 25" multi-coated objective lens
• Finderscope: 6x30

Mount

• Mount type: Manual alt-azimuth
• Mount: AZ5 deluxe alt-azimuth
• Mount rotation angle: 360 (azimuth)
• Altitude range: -50 to +90
• Tripod: Aluminium tripod with accessory tray
• Total net weight: 8. 1kg
• Skill level: Beginner

Sizing

Height range of tripod/mount (excluding OTA): 86. 5cm - 158. 5cm

In the box

• 10mm eyepiece
• 25mm eyepiece
• 6x30 finderscope
• 90 erect image diagonal
• AZ5 deluxe alt-azimuth mount
• Aluminium tripod
• Accessory tray
• Tube mounting rings

Support & warranty

1-year warranty.

Rackhams Reference : K1Q13B34LF
