DwarfLab DWARF 3 Smart Telescope

Compact enough to travel easily yet equipped for app-guided imaging, the DwarfLab DWARF 3 Smart Telescope brings a highly portable approach to astronomy and terrestrial observation. This smart telescope combines a 35mm aperture with a 150mm telephoto focal length, an f/4. 2 telephoto lens, smartphone control and automated functions including one-click GOTO, auto star tracking and stacking. At 1. 3kg, it is built for use on the move and suits beginners looking for a more approachable route into astrophotography.

The periscope-style body houses ED lenses, a SONY IMX678 STARVIS 2 sensor and built-in filters for different shooting conditions. Tele and wide imaging modes support astronomy, panoramas, video, burst and time-lapse capture, while 128GB eMMC storage is included. Wi-Fi, Bluetooth, NFC one-touch connection and compatibility with iOS and Android complete a system that keeps setup streamlined whether capturing the Moon, Sun, nebulae or daytime subjects. A tripod is required for use and connects via a standard 1/4-inch thread.

Key features

• 35mm aperture smart telescope with 150mm telephoto focal length
• Smartphone control with iOS and Android compatibility
• One-click GOTO, AI-powered object tracking, auto star tracking and stacking
• ED lens system with SONY IMX678 STARVIS 2 sensor
• Built-in VIS, ASTRO and DUAL-BAND filters
• Tele and wide shooting with photo, video, astro, pano, burst and time-lapse modes
• 128GB eMMC storage included
• IP54 resistance to dust, moisture and dew
• Model number: ES-DWARF3

Specifications

Optics

• Aperture diameter: 35mm
• Focal length of the telephoto: 150mm
• Equivalent focal length: 737mm (Tele), 45mm (Wide)
• F-number: 4. 2 (Tele), 2. 4 (Wide)
• Working distance: 4m~∞
• Field of view: 3 (Tele), 50 (Wide)
• Digital resolution: 8 Megapixel (Tele), 2 Megapixel (Wide)
• Built-in filters: VIS (Tele), ASTRO (Tele & Wide), DUAL-BAND (Tele)

Imaging and connectivity

• Sensor: SONY IMX678 STARVIS 2
• Storage: 128GB eMMC included
• Storage format: JPEG, PNG, FITS, TIFF
• Connectivity: Wi-Fi & Bluetooth (no more than 32. 8' in distance)
• Compatible system: iOS & Android
• NFC one touch connection
• Shooting modes: Photo, Video, Astro, Pano, Burst, Time-lapse
• API available

Hardware

• CPU: 4-Core Cortex-A7 1. 5GHz
• NPU: 5 TOPS NPU
• Motor: 0. 001/s~30/s
• Visibility angle: Pitch 240, rotation 340
• Built-in battery: 10,000mAh (supports external USB charging)
• Mounting screw thread: 1/4"
• Tripod height: 13~17cm / 0. 51~0. 67in
• Operating temperature: 14~113F / -10~45C
• Weight: 1. 30kg

Sizing

222 × 65 × 142mm

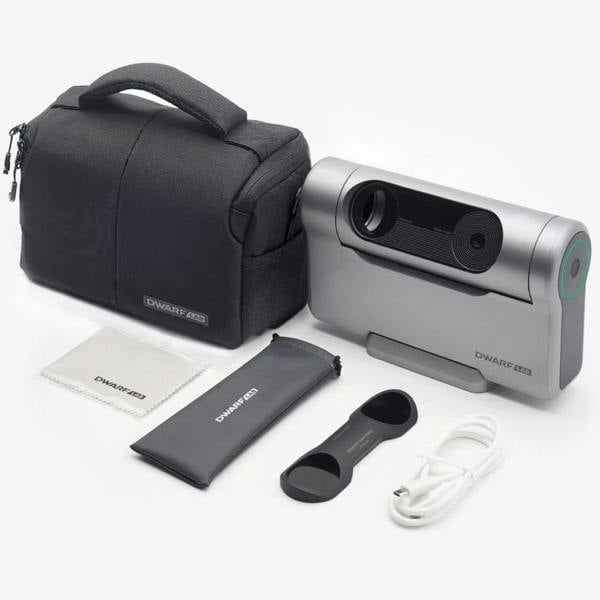

In the box

• Carrying bag
• Magnetic solar filters
• Pouch for solar filters
• USB-C cable
• Wipe cloth

Support & warranty

2-year warranty.
