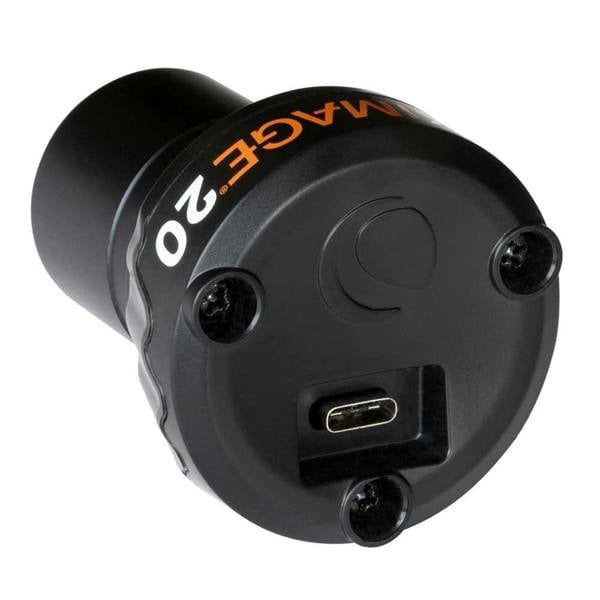

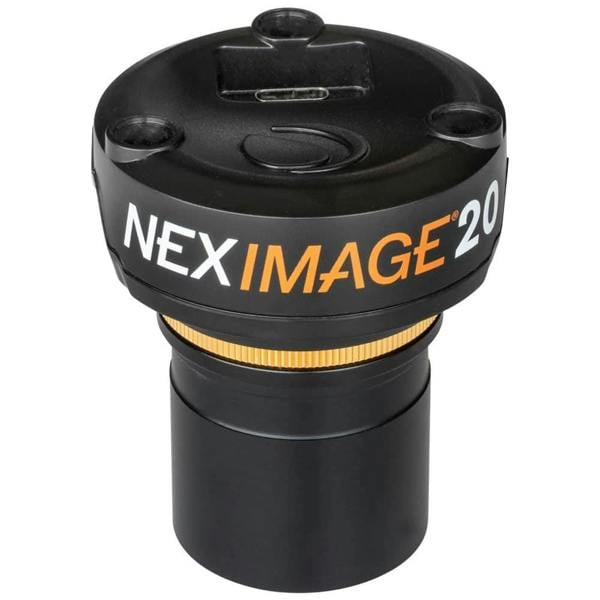

Celestron Neximage 20 Solar System Colour Imager

High-resolution planetary, lunar and solar imaging comes into focus with the Celestron NexImage 20 Solar System Colour Imager, a USB astro photography camera built around a 20MP back-illuminated CMOS sensor. It captures live video and 5240 x 3840 pixel still images, with a 7. 3mm x 5. 4mm Onsemi AR2020 sensor and 1. 4 micron square pixels for detailed image capture and post-processing workflows such as stacking, printing and sharing.

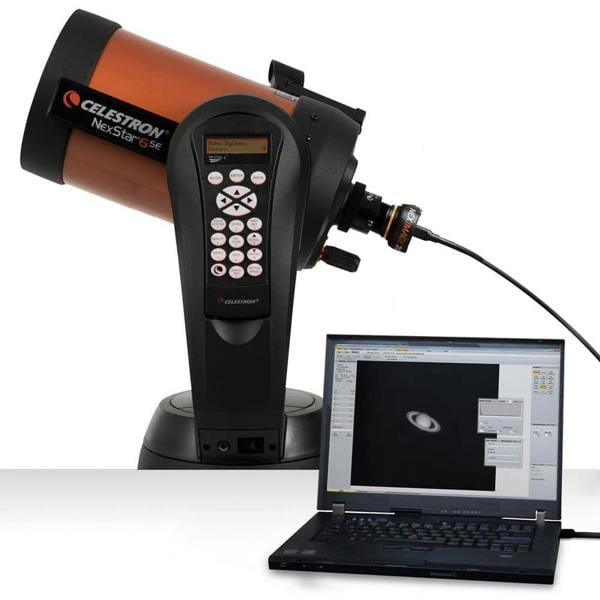

Connection is straightforward via the supplied 1. 25" nosepiece, which fits directly into a telescope’s 1. 25" eyepiece holder, while the USB-A to USB-C cable links the camera to a Windows computer. Hardware ROI sub-framing allows the frame to be cropped around the target for faster frame rates and smaller files, particularly useful for planetary work. NexImage 20 also supports autoguiding and includes iCap software for control over exposure, gain and frame rate.

Key features

• 20MP colour USB astro photography camera
• Back-illuminated Onsemi AR2020 CMOS sensor
• 5240 x 3840 image resolution with live video capture
• 1. 25" barrel fitting and C-thread mounting
• Hardware ROI sub-framing for cropped capture
• Can be used for imaging and autoguiding
• Powered by USB
• 2-year warranty
• Model number: 93707-CGL

Specifications

Imaging

• Colour or monochrome: Colour
• Imaging sensor: Onsemi AR2020 back-illuminated CMOS
• Camera resolution: 5240 x 3840 pixels
• Total number of pixels: 20 MP
• Sensor size: 7. 3mm x 5. 4mm (9mm diagonal)
• Pixel size: 1. 4 micron square
• A/D conversion: 10-bit RAW
• Shutter: Electronic rolling shutter
• Exposure range: 0. 0001 to 10 seconds
• Frames per second: Up to 90 (8 fps at full frame)
• Sub-framing: Hardware ROI
• Optical window: IR cutoff filter

Compatibility and build

• Mounting: 1. 25" barrel and C-thread
• USB: High-speed USB 3. 0, cable 10' length
• Power requirements: Powered by USB
• Camera housing construction: ABS with aluminium connection ring
• Software compatibility: iCap, IC Capture, DirectShow, oaCapture
• Operating environment: -40 - 104F (-40 - 40C)
• Back focus distance: 13. 1mm (0. 51") with nosepiece, 10. 6mm (0. 41") without nosepiece
• Recommended/best usage: Getting started in lunar, solar, and planetary imaging
• Weight: 57 g (2. 0 oz)

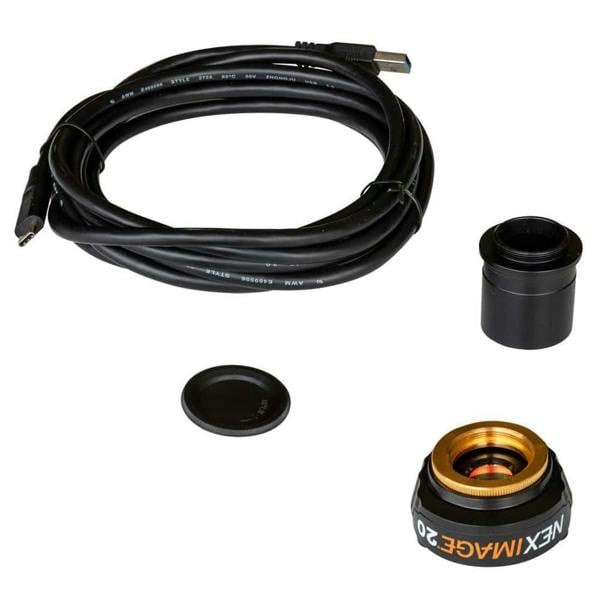

In the box

• NexImage 20 camera body
• 1. 25" nosepiece
• USB cable
• Instruction manual

Support & warranty

• 2-year warranty
