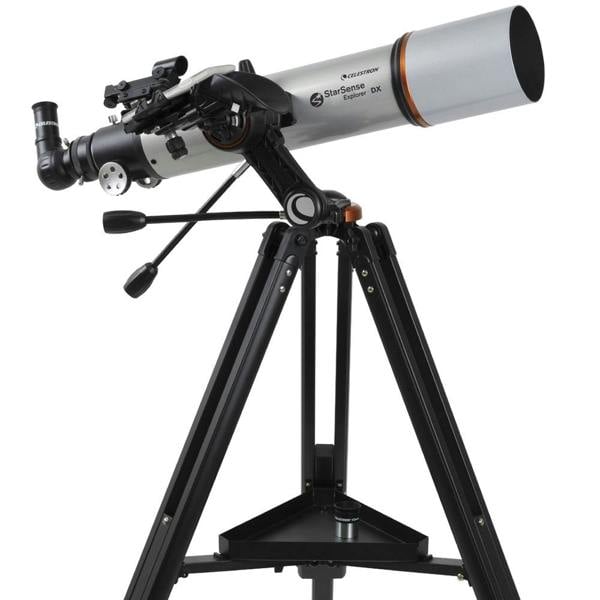

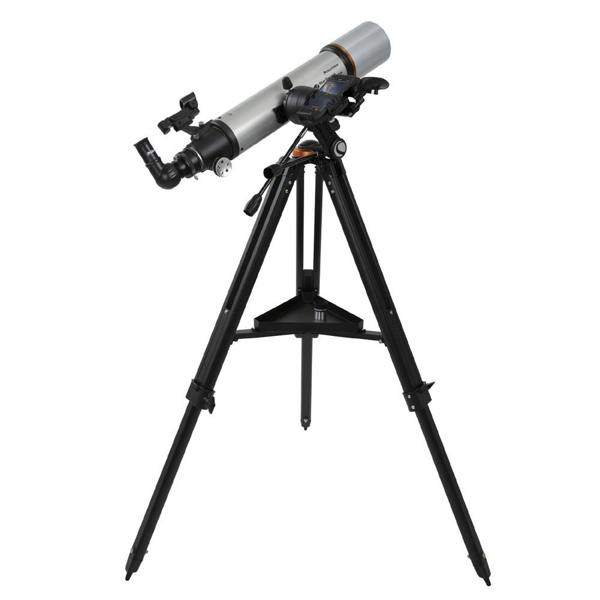

Celestron StarSense Explorer DX 102AZ Smartphone App-Enabled Refractor Telescope

Finding your way around the night sky feels notably more direct with the Celestron StarSense Explorer DX 102AZ, a beginner-friendly refractor telescope that pairs a 102mm aperture and 660mm focal length with a manual alt-azimuth mount. Its smartphone-enabled StarSense system helps guide the telescope to visible objects, while the 25mm and 10mm eyepieces provide 26x and 66x magnification straight from the box.

Celestron combines this 102mm refractor optical tube with fully XLT coated glass optics, a 90 erect image diagonal and a StarPointer red dot finderscope. The mount includes slip clutches and geared slow-motion controls on both axes for smooth manual tracking, all supported by a full-height aluminium tripod with accessory tray. Alongside astronomical observing, the erect image diagonal also supports daytime viewing of landscapes, wildlife and birds. The telescope works with most modern smartphones, including iPhone 6 and later and most Android devices running Android 7. 1. 2 or later manufactured since 2016.

Key features

• 102mm refractor telescope with 660mm focal length

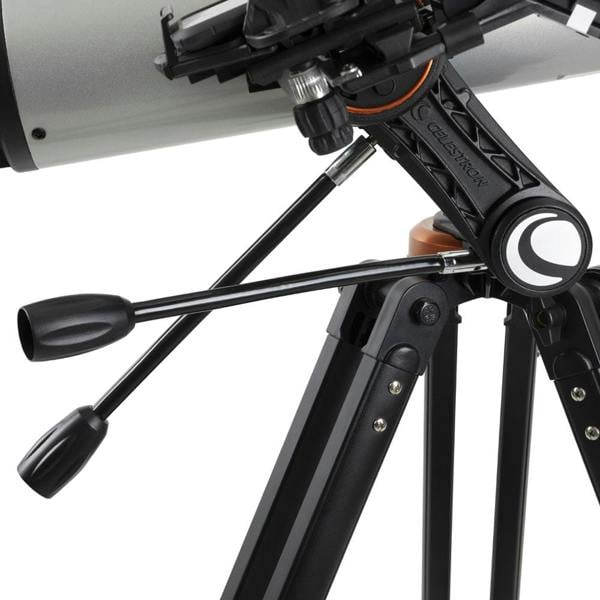

• Manual alt-azimuth mount with slip clutches and geared slow-motion controls in both axes

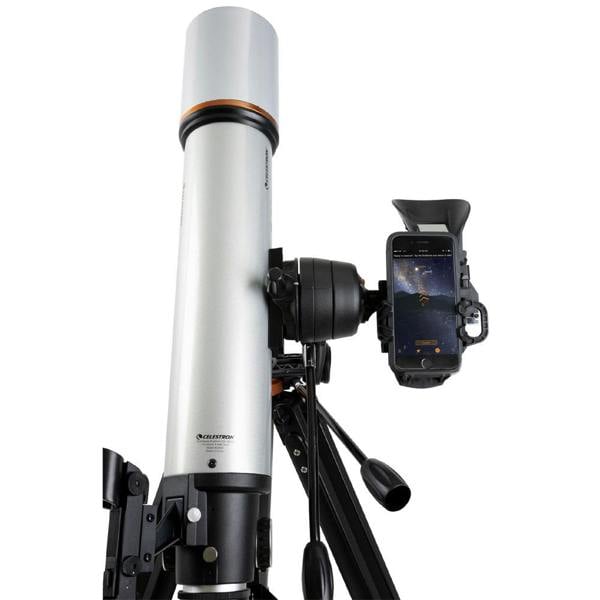

• StarSense smartphone dock with app-enabled sky navigation
• Fully XLT coated glass optics
• Includes 25mm and 10mm eyepieces offering 26x and 66x magnification

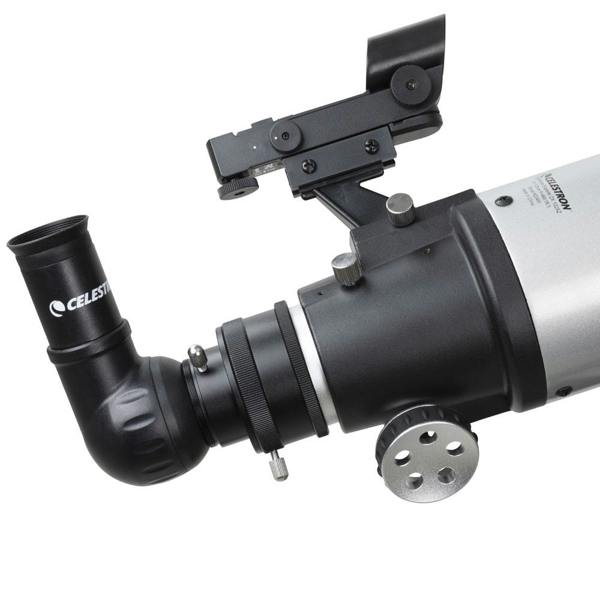

• 90 erect image diagonal for astronomical and daytime viewing
• StarPointer red dot finderscope
• Full-height aluminium tripod with accessory tray
• Model number: 22460-CGL

Specifications

Optics

• Optical design: Refractor
• Aperture: 102mm
• Focal length: 660mm
• Focal ratio: f/6. 5
• Highest useful magnification: 240x
• Lowest useful magnification: 15x
• Limiting stellar magnitude: 12. 5
• Resolution (Rayleigh): 1. 37 arc seconds
• Resolution (Dawes): 1. 14 arc seconds
• Optical coatings: Fully XLT coated glass optics
• Light gathering power (compared to human eye): 212x

Mount

• Mount type: Manual alt-azimuth
• Slew speeds: Manual
• Dovetail compatibility: CG-5 dovetail bar
• Alignment procedures: Use StarSense Explorer app
• GPS: Uses phone's GPS
• Power requirements: None

Software

• StarSense Explorer app
• SkyPortal app
• Celestron Starry Night Basic Edition software

Weight

• Total kit weight: 6. 44kg

Sizing

• Optical tube length: 812. 8mm
• Optical tube diameter: 118mm
• Height adjustment range (includes mount and tripod): 1244. 6mm max height

In the box

• 25mm eyepiece
• 10mm eyepiece
• 90 erect image diagonal
• StarPointer red dot finderscope
• Aluminium tripod
• Accessory tray
• Celestron Starry Night Basic Edition software

Support & warranty

• 2-year warranty
