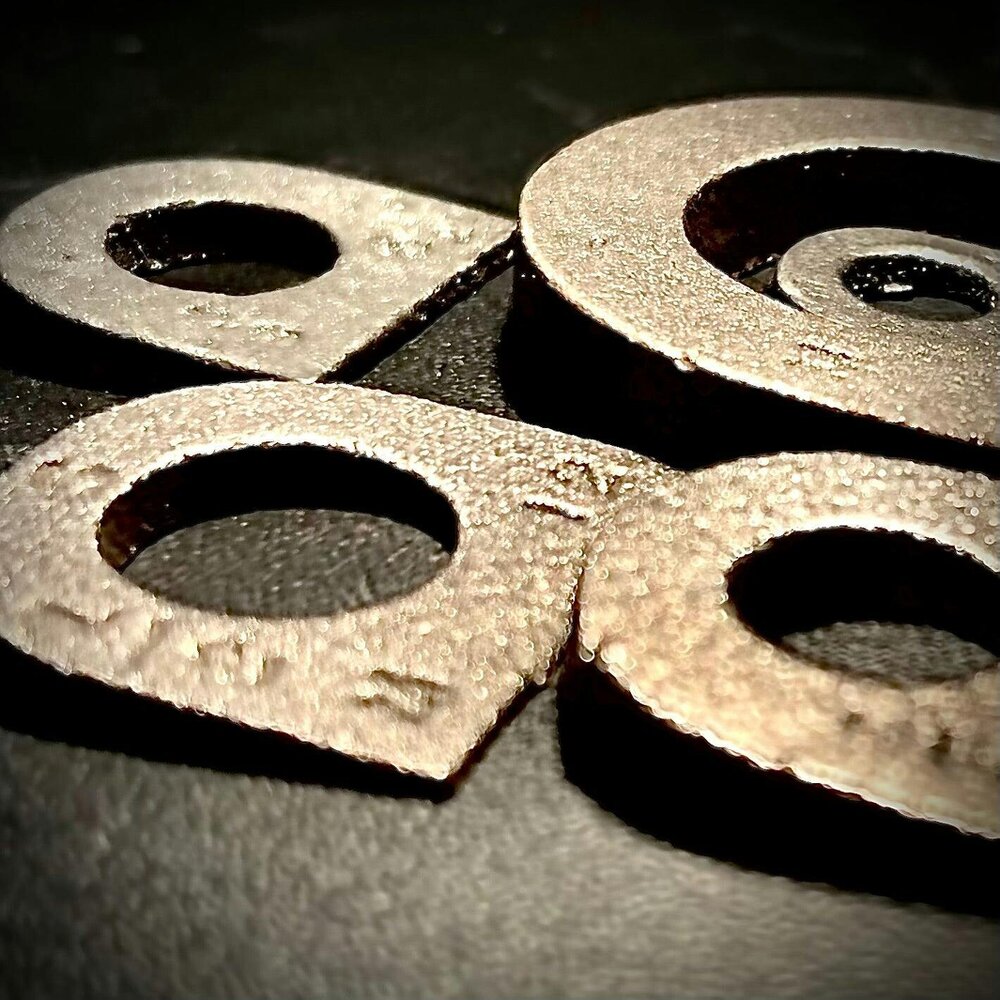

Fixaball 6.1/2 Degree Taper Washers Self Colour

For steel joists and channel sections, these Fixaball taper washers provide a 6.1/2 degree taper with a self-colour finish. They sit under a bolt or set screw head to match the tapered face of steel joists and create a level seating, and can also be used beneath nuts with tapered flanges on channel sections so the bolt assembly fits square to the fixing surface when tightened.

Available in a range of metric sizes from M8 to M27, each option includes the corresponding imperial reference and height range.

Key features

• 6.1/2 degree taper
• Self-colour finish
• Available sizes: M8, M10, M12, M16, M20, M24 and M27
• Suitable for steel joists and channel sections

Available options

• M8 – 5/16"
• M10 – 3/8"
• M12 – 1/2"
• M16 – 5/8"
• M20 – 3/4"
• M24 – 1"
• M27 – 1.1/8"

Sizing

• M8 – 5/16": 1.5mm - 3.2mm
• M10 – 3/8": 2.3mm - 4.8mm
• M12 – 1/2": 1.9mm - 5.1mm
• M16 – 5/8": 2.6mm - 5.7mm
• M20 – 3/4": 2.5mm - 6.3mm
• M24 – 1": 2.3mm - 5.6mm
• M27 – 1.1/8": 2.5mm - 7.4mm

Rackhams Reference : 3VXM18MQP7
