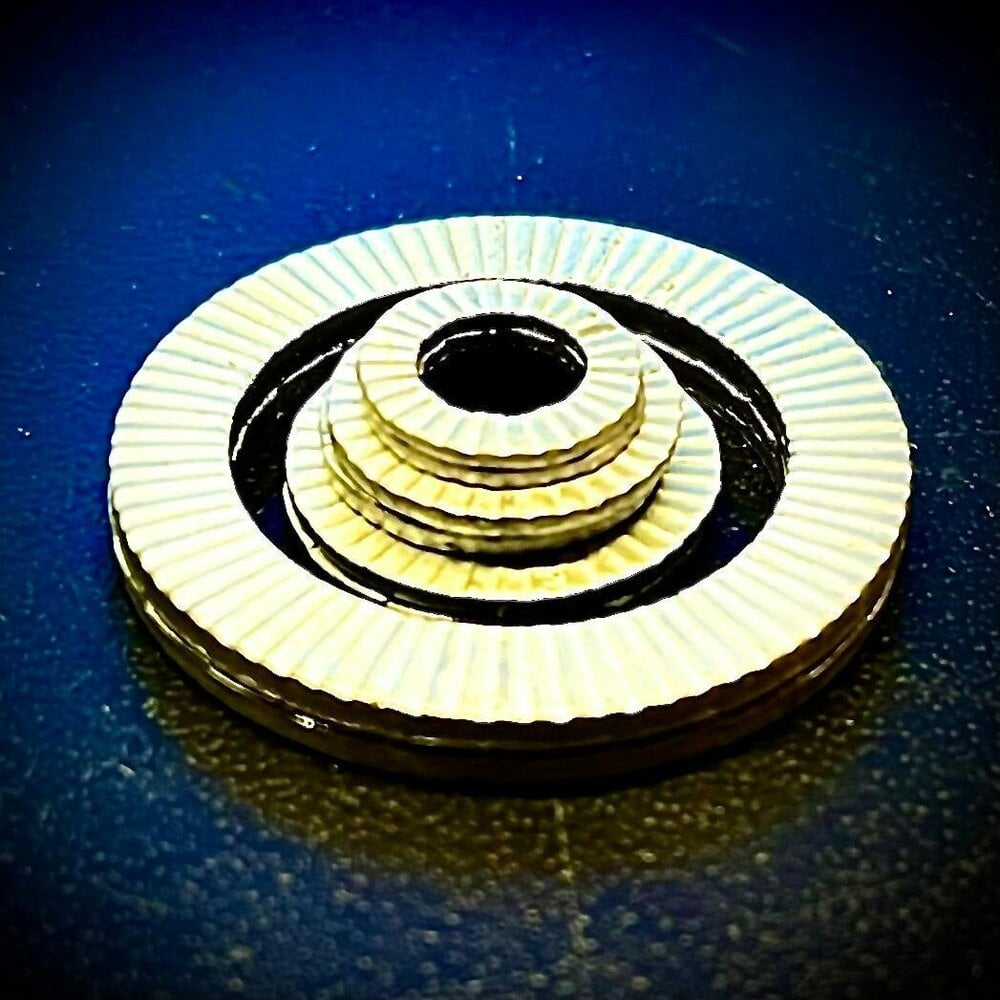

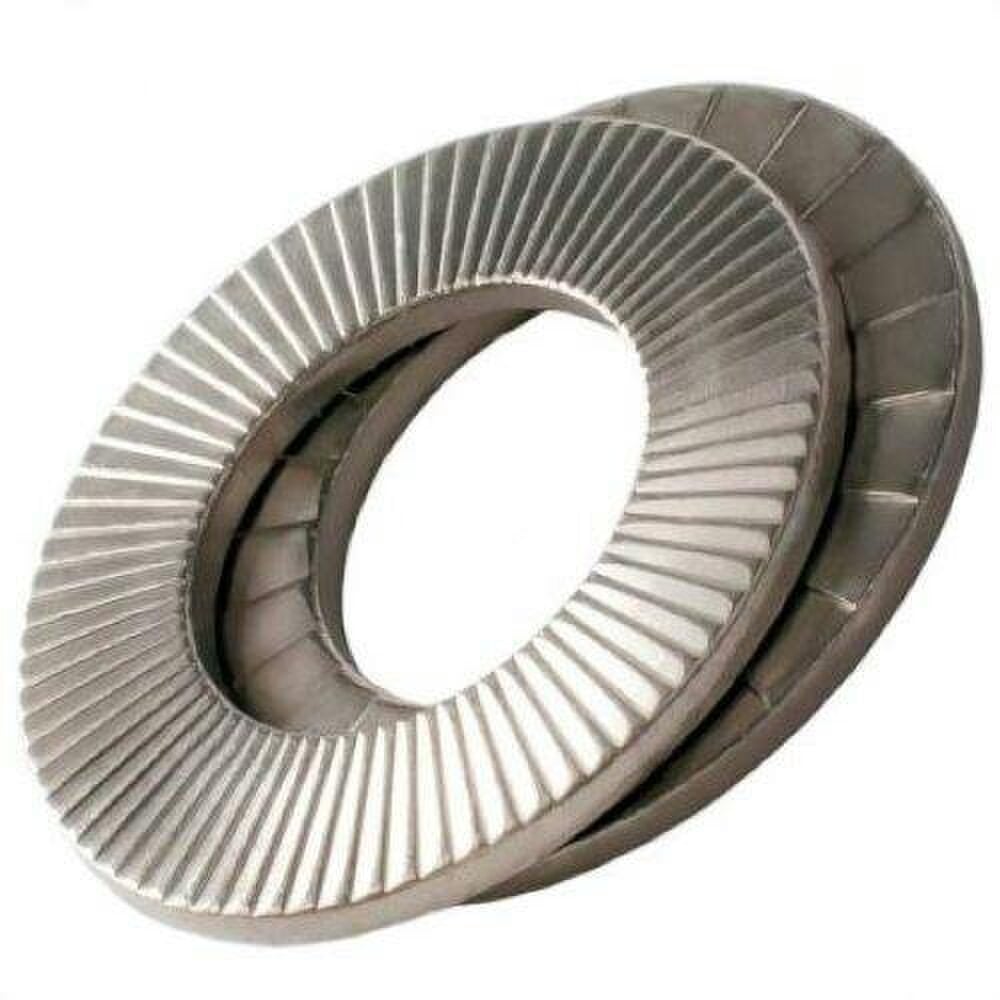

Fixaball Wedge Lock Washers Delta Protekt

For vibration-prone fastening applications, Fixaball Heico Delta Protekt Wedge Lock Washers provide a secure locking solution with a Delta Protekt finish. This range covers multiple metric sizes, making it suitable for a wide variety of bolted assemblies where grip and stability are required.

These wedge lock washers are made to perform under extreme pressure and vibration. Available sizes include M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M27, M30 and M36.

Available options

• M4
• M5
• M6
• M8
• M10
• M12
• M14
• M16
• M20
• M24
• M27
• M30
• M36

Key features

• Delta Protekt finish
• Provides maximum grip and stability
• Suitable for extreme pressure and vibration

Sizing

• M8: inside diameter 8.7mm, outside diameter 13.5mm, thickness 2.5mm
• M10: inside diameter 10.7mm, outside diameter 16.6mm, thickness 2.5mm
• M12: inside diameter 13.0mm, outside diameter 19.5mm, thickness 2.5mm
• M16: inside diameter 17.0mm, outside diameter 25.4mm, thickness 3.4mm
• M20: inside diameter 21.4mm, outside diameter 30.7mm, thickness 3.4mm

Rackhams Reference : 2G8JXPH4DB
