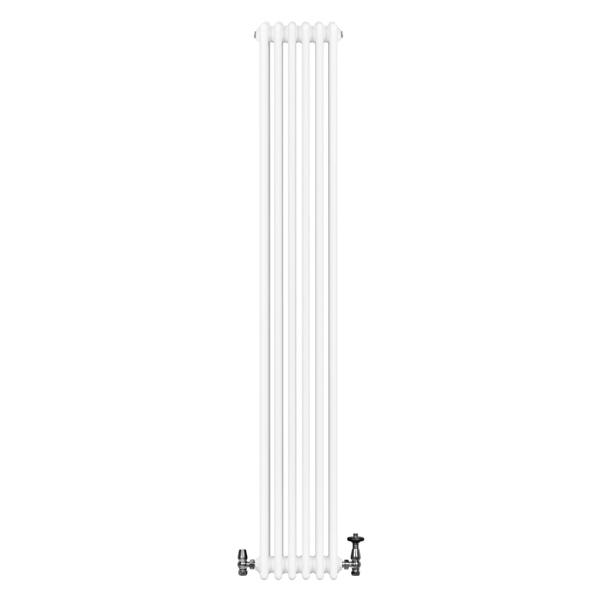

Monstershop Traditional 4 Column Radiator & Valves - 1800 x 290mm - White

Bring a classic look to your heating with the MonsterShop Traditional 4 Column Radiator & Valves, finished in white and sized at 1800 x 290mm. Made from 1.5mm carbon steel with a triple layered powder coating, it pairs a traditional column profile with a clean, modern finish suited to a wide range of interiors.

Heat output is rated at 5897 BTU at 60 (1728 watts) and 4628 BTU at 50 (1356 watts), with a recommended application area of 17m². The radiator uses a standard 0.5" BSP bore inlet/outlet and is supplied with a chrome thermostatic valve set in an angled style, offering rotary control with a 6–28 degrees temperature range. Secure brackets, a fixing kit and a flexible cleaning brush are included, alongside CE and UKCA certification and testing to BS EN 442 and ISO9001:2015 standards.

Key features

• Traditional column radiator with white finish
• 1800 x 290mm size
• 1.5mm carbon steel construction
• Triple layered powder coating
• Heat output: 5897 BTU at 60 (1728 watts); 4628 BTU at 50 (1356 watts)
• Standard 0.5" BSP bore inlets/outlets
• Includes angled chrome thermostatic valve set with rotary control (6–28 degrees)
• Supplied with brackets, fixing kit and flexible cleaning brush

Specifications

Radiator

• Colour: White
• Weight: 40.1kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 1800mm / 180cm / 70.9”
• Width: 290mm / 29cm / 11.4”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 6
• BTU rating @ 50: 4628
• BTU rating @ 60: 5897
• Watt rating @ 50: 1356
• Watt rating @ 60: 1728
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 17m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 1720mm / 172cm / 67.7”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valve specifications

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Support & warranty

• Radiator guarantee: 15 years
• Valve set guarantee: 10 years

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
