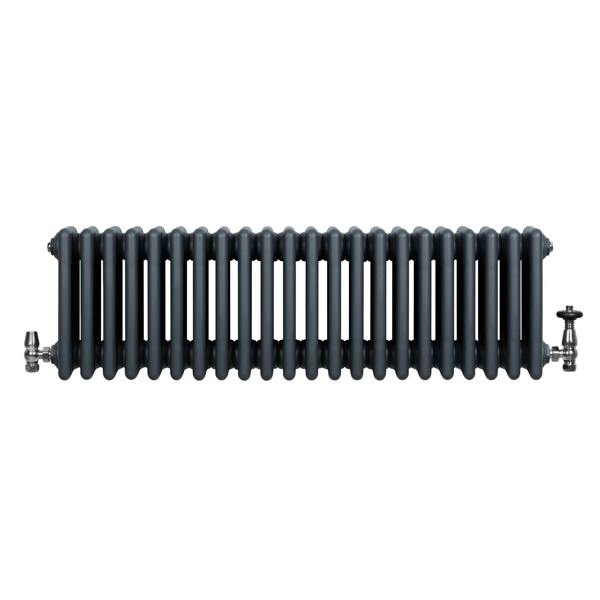

Monstershop Traditional 4 Column Radiator & Valves - 300 x 1010mm - Anthracite Grey

A statement piece for contemporary and classic interiors alike, the Monstershop Traditional 4 Column Radiator & Valves combines a horizontal, multi-column profile with a bold anthracite grey finish. Built from 1.5mm carbon steel and finished with triple layered powder coating, it brings a durable, considered look to living spaces, hallways and home offices where wall space matters.

Measuring 300mm high and 1010mm wide, this 22-column radiator delivers a BTU rating @ 60 of 3802 (1114W @ 60), with a maximum working temperature of 95°C and maximum working pressure of 12 bar. Standard 0.5" BSP inlets/outlets support straightforward integration, while the supplied angled chrome thermostatic valve set offers rotary control with a 6–28 degrees temperature range and an integrated lockshield valve for regulating water flow.

Key features

• Traditional 4 column horizontal radiator with 22 columns
• Anthracite grey finish with triple layered powder coating
• Made from 1.5mm carbon steel
• BTU rating @ 60: 3802; watt rating @ 60: 1114
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled silver chrome thermostatic valve set (rotary knob control)
• Includes secure brackets, fixing kit and flexible cleaning brush
• CE & UKCA certified; tested to BS EN 442 & ISO9001:2015 standards
• 15-year guarantee (radiator); 10-year guarantee (valves)

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Weight: 26.9kg
• Height: 300mm / 30cm / 11.8”
• Width: 1010mm / 101cm / 39.8”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 22
• BTU rating @ 50: 2990
• BTU rating @ 60: 3802
• Watt rating @ 50: 876
• Watt rating @ 60: 1114
• Max working temperature: 95°C
• Max working pressure: 12 Bar
• Test pressure: 15.6 Bar
• Recommended application area: 11m²
• Inlets/Outlets size: Standard 0.5" BSP Bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 220mm / 22cm / 8.7”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE certificate: CE & UKCA

Valves

• Colour: Silver Chrome
• Material: Powder Coated Brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary Knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 Years

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
