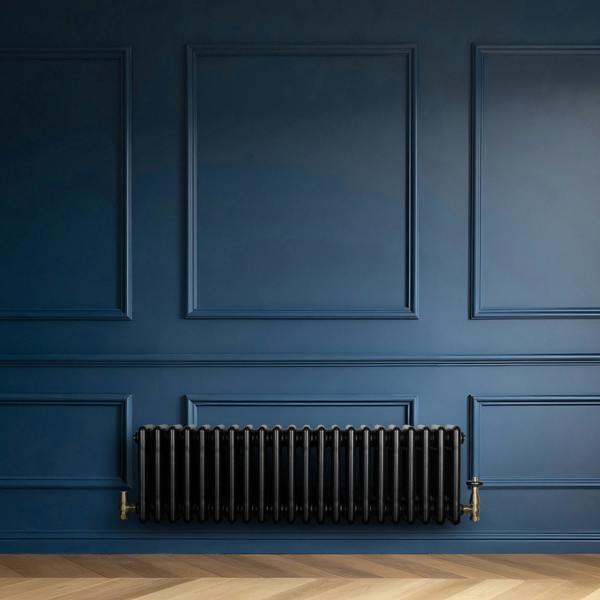

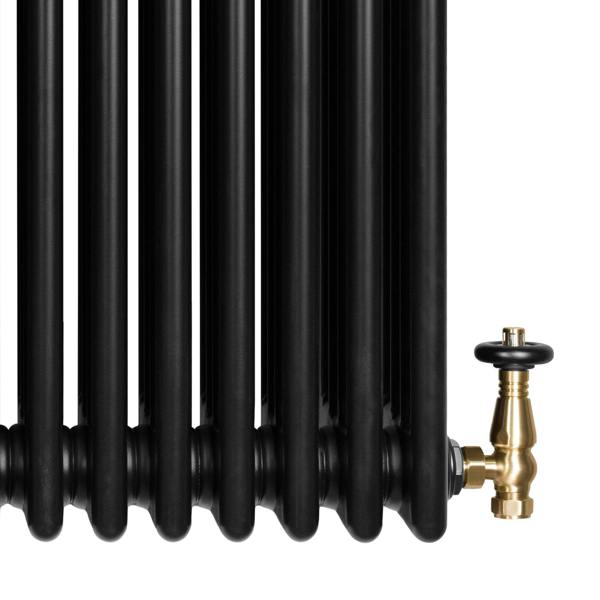

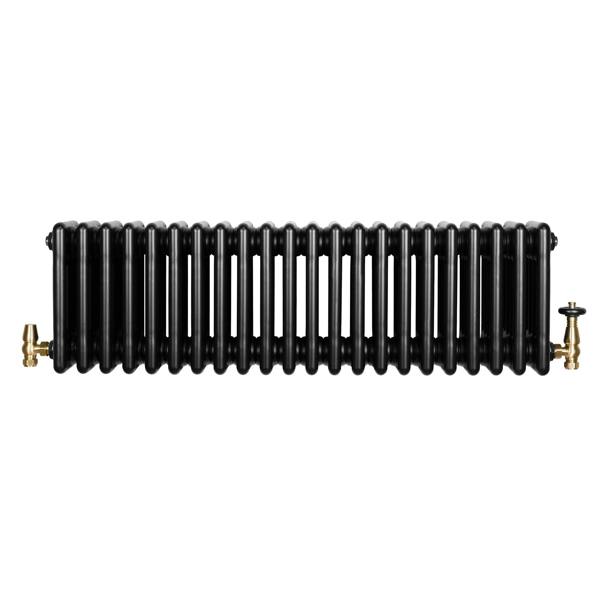

Monstershop Traditional 4 Column Radiator & Valves - 300 x 1010mm - Black

Bring a classic look to your heating with the Monstershop Traditional 4 Column Radiator & Valves, a horizontal radiator finished in black. Made from 1.5mm carbon steel and sized at 300mm high by 1010mm wide, it suits a wide range of rooms while keeping a clean, architectural profile on the wall.

A triple layered powder coating supports long-term durability, while the 4-column format uses 25mm steel tubes with a 20mm gap between tubes. Heat output is rated at 2990 BTU @ 50 and 3802 BTU @ 60, with watt ratings of 876 @ 50 and 1114 @ 60. Supplied with an antique satin brass thermostatic valve set in an angled style, temperature control is handled via a rotary knob with a 6–28 degrees range, alongside an integrated lockshield valve for water flow regulation. CE and UKCA certification, plus testing to BS EN 442 and ISO9001:2015 standards, complete the specification.

Key features

• Monstershop traditional style horizontal radiator with thermostatic valve set
• Black finish with triple layered powder coating
• 1.5mm carbon steel construction
• 4-column design with 25mm individual tube size
• Heat output: 3802 BTU @ 60 (2990 BTU @ 50)
• Standard 0.5" BSP bore inlets/outlets
• Includes secure brackets, fixing kit and flexible cleaning brush
• 15-year guarantee on the radiator

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 26.9kg
• Height: 300mm / 30cm / 11.8”
• Width: 1010mm / 101cm / 39.8”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 22
• BTU rating @ 50: 2990
• BTU rating @ 60: 3802
• Watt rating @ 50: 876
• Watt rating @ 60: 1114
• Max working temperature: 95°C
• Max working pressure: 12 Bar
• Test pressure: 15.6 Bar
• Recommended application area: 11m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 220mm / 22cm / 8.7”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valve set

• Colour: Brass
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 Years

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
