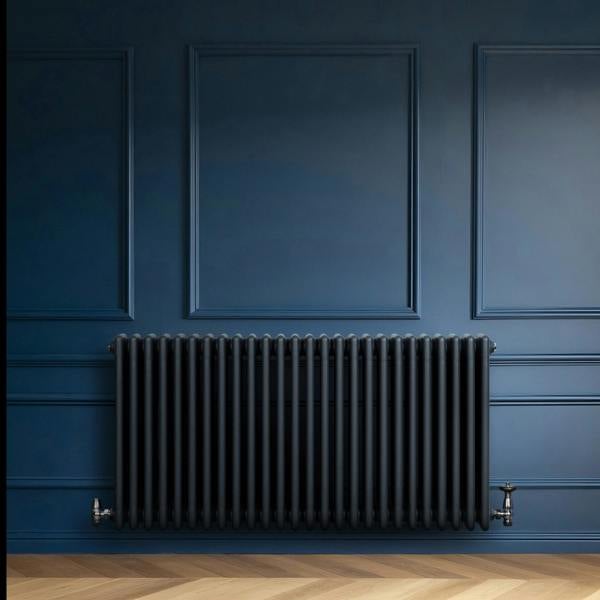

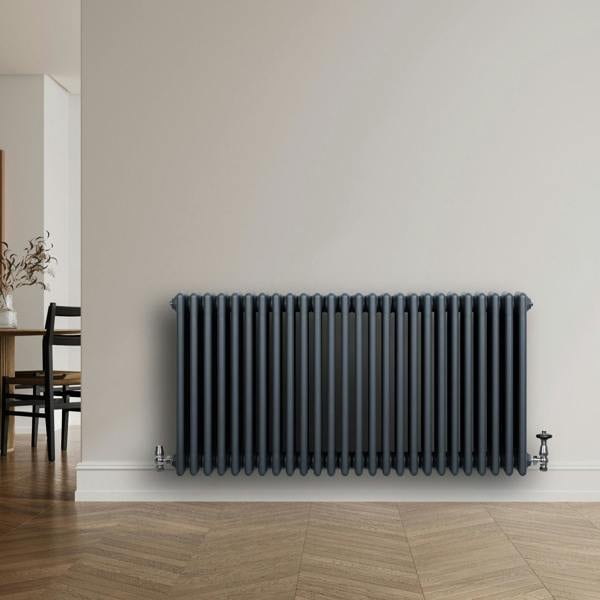

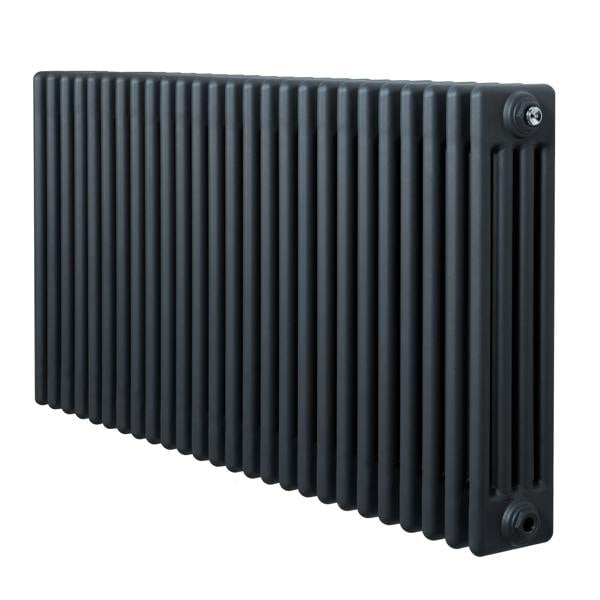

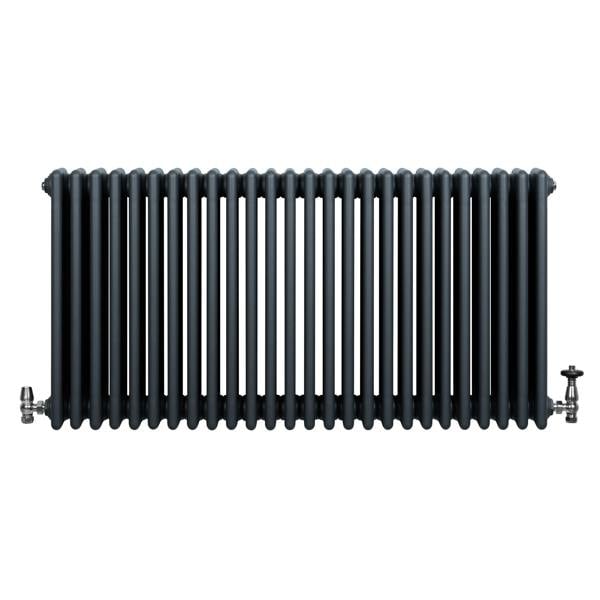

Monstershop Traditional 4 Column Radiator & Valves - 600 x 1190mm - Anthracite Grey

A bold, architectural update for classic interiors, the Monstershop Traditional 4 Column Radiator & Valves combines a horizontal, multi-column profile with an anthracite grey finish. Measuring 600mm high by 1190mm wide, it brings a strong visual presence to living spaces while maintaining a traditional look.

Made from 1.5mm carbon steel and finished with triple layered powder coating, it’s built for long-term use and everyday practicality. Heat output is rated at 5160 BTU at 60 (1512 watts) and 4061 BTU at 50 (1190 watts), with a recommended application area of 15m². Standard 0.5" BSP inlets/outlets support straightforward integration, and the supplied angled chrome thermostatic valve set offers rotary control with a 6–28°C temperature range, alongside an integrated lockshield valve for regulating water flow.

Key features

• Traditional 4 column horizontal radiator with anthracite grey finish
• 600mm (60cm) height and 1190mm (119cm) width
• Heat output: 5160 BTU rating @ 60 and 4061 BTU rating @ 50
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled thermostatic valve set in silver chrome
• Rotary knob temperature control with 6–28 degrees range
• Includes secure brackets, fixing kit and flexible cleaning brush
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15 year quality guarantee (radiator) and 10 years guarantee length (valves)

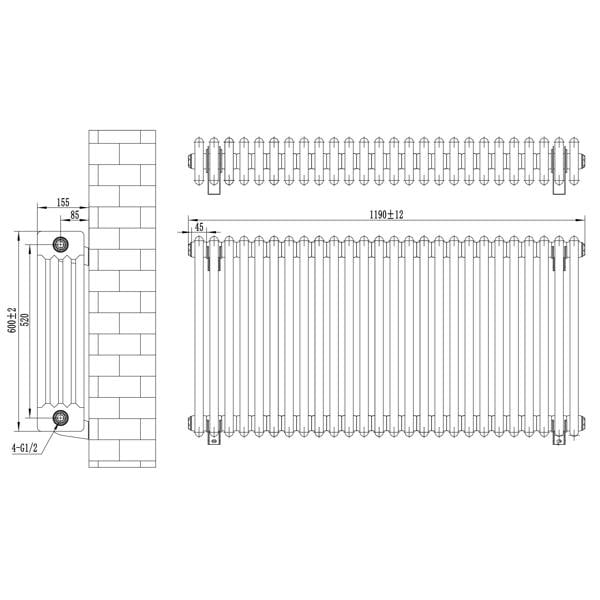

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Weight: 59.1kg
• Height: 600mm / 60cm / 23.6”
• Width: 1190mm / 119cm / 46.9”
• Radiator Depth: 140mm / 14cm / 5.5”
• Depth With Bracket: 155mm / 15.5cm / 6.1”
• Gap Between Tubes: 20mm / 2cm / 0.8”
• Individual Tube Size: 25mm / 2.5cm / 1”
• Number Of Columns: 26
• BTU Rating @ 50: 4061
• BTU Rating @ 60: 5160
• Watt Rating @ 50: 1190
• Watt Rating @ 60: 1512
• Max Working Temperature: 95°C
• Max Working Pressure: 12 Bar
• Test Pressure: 15.6 Bar
• Recommended Application Area: 15m²
• Inlets/Outlets Size: Standard 0.5" BSP Bore
• Distance From Wall To Centre Of Inlet: 85mm
• Valve-To-Valve Height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE Certificate: CE & UKCA

Valves

• Colour: Silver Chrome
• Material: Powder Coated Brass
• Weight: 0.9kg
• TRV Dimensions: 137mm H x 85mm W x 55mm D
• Lockshield Dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control Style: Rotary Knob
• Type: Thermostatic
• Temperature Range: 6-28 Degrees
• Maximum Bar Pressure: 10
• Maximum Flow Temperature: 100 Degrees
• Nominal Flow Rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee Length: 10 Years

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
