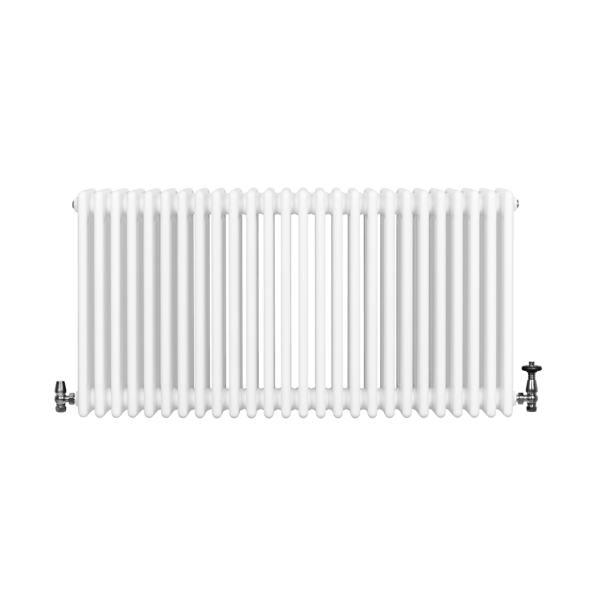

Monstershop Traditional 4 Column Radiator & Valves - 600 x 1190mm - White

Bring a classic look to your heating with the MonsterShop Traditional 4 Column Radiator & Valves in white. Measuring 600 x 1190mm, it combines a traditional horizontal format with a triple layered powder-coated finish, creating a clean focal point for a wide range of interiors. Built from 1.5mm carbon steel and supplied with brackets and a fixing kit, it’s made for a neat, secure fit.

Heat output is rated at 5160 BTU @ 60 (1512 watts @ 60), with a maximum working temperature of 95°C and maximum working pressure of 12 bar. Standard 0.5" BSP inlets/outlets support straightforward compatibility, and the set includes a chrome thermostatic valve pair in an angled style. Temperature control is handled via a rotary knob with a 6–28 degrees range, alongside an integrated lockshield valve for regulating water flow.

Key features

• Traditional 4 column horizontal radiator with 26 columns
• 600 x 1190mm size in a white finish
• Triple layered powder coating
• Heat output: 5160 BTU @ 60 (1512 watts @ 60)
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled chrome thermostatic valve set (rotary control)
• Includes brackets, fixing kit and flexible cleaning brush
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 59.1kg
• Height: 600mm / 60cm / 23.6”
• Width: 1190mm / 119cm / 46.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 26
• BTU rating @ 50: 4061
• BTU rating @ 60: 5160
• Watt rating @ 50: 1190
• Watt rating @ 60: 1512
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 15m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : ZZFXIA26YG
