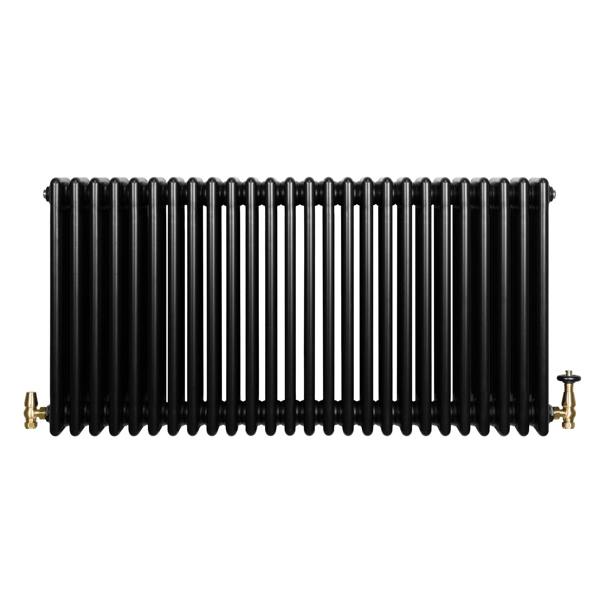

Monstershop Traditional 4 Column Radiator & Valves - 600 x 1190mm - Black

A bold, traditional look meets a practical horizontal format in the Monstershop Traditional 4 Column Radiator & Valves. Finished in black with a triple layered powder coating, it brings a strong visual statement to living spaces while keeping the overall design clean and architectural.

Made from 1.5mm carbon steel, this 600 x 1190mm radiator uses 26 columns with 25mm steel tubes and a 20mm gap between tubes. Heat output is rated at 5160 BTU at 60 (1512 watts) and 4061 BTU at 50 (1190 watts). Supplied with a satin brass thermostatic valve set in an angled style, temperature control is adjusted via a rotary knob with a 6–28°C range, alongside an integrated lockshield valve for regulating water flow. Fixtures, fittings and a flexible cleaning brush are included, with CE and UKCA certification and testing to BS EN 442 and ISO9001:2015 standards.

Key features

• Monstershop traditional style horizontal radiator with thermostatic valve set
• 600mm height and 1190mm width
• Black finish with triple layered powder coating
• 1.5mm carbon steel construction
• Heat output: 5160 BTU at 60 (1512 watts)
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled brass thermostatic valves with rotary control (6–28°C)
• Includes brackets, fixing kit and flexible cleaning brush
• 15-year guarantee for the radiator and 10-year guarantee for the valves

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 59.1kg
• Height: 600mm / 60cm / 23.6”
• Width: 1190mm / 119cm / 46.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Number of columns: 26
• Individual tube size: 25mm / 2.5cm / 1”
• Gap between tubes: 20mm / 2cm / 0.8”
• BTU rating @ 50: 4061
• BTU rating @ 60: 5160
• Watt rating @ 50: 1190
• Watt rating @ 60: 1512
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 15m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 520mm / 52cm / 20.5”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valve set

• Colour: Brass
• Material: Powder coated brass
• Weight: 0.9kg
• Style: Angled
• Type: Thermostatic
• Control style: Rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Guarantee length: 10 years

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set
