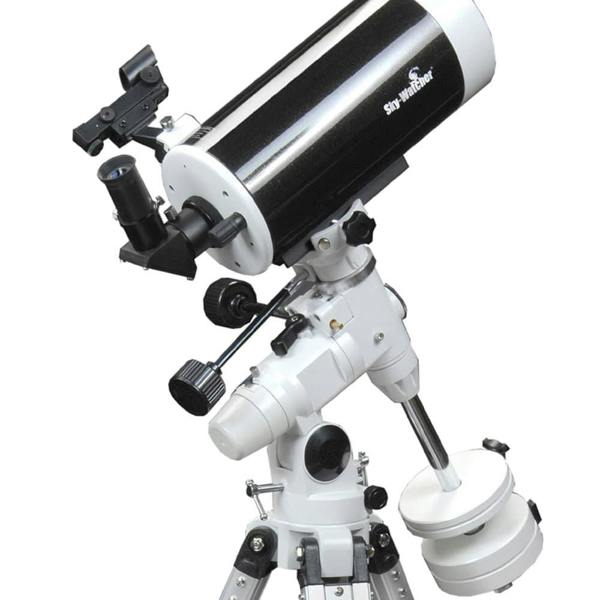

Sky Watcher Skymax 127 Telescope with EQ3-2 Mount

Compact in form yet purpose-built for detailed lunar and planetary observation, the Sky-Watcher Skymax 127 MAK Astronomy Telescope with EQ3-2 Mount brings a 127mm Maksutov-Cassegrain optical system together with a 1500mm focal length and f/11. 81 focal ratio. Its long-focus design suits high-power, high-resolution viewing, while the fully multi-coated optics, RAQ-coated primary and secondary mirrors, and MHTC-coated corrector plate support strong contrast and image sharpness.

Sky-Watcher pairs this model with the EQ3-2 manual German equatorial mount for controlled tracking across the night sky. Once polar aligned, the mount uses slow-motion controls and full 360 worm-gear tracking on both RA and DEC axes, supported by dual metal setting circles for locating objects by celestial coordinates. The aluminium tripod includes an accessory tray and bubble level, and the telescope focuses by moving the primary mirror. For observers interested in double stars, the Moon and bright planets, this is a highly portable setup with substantial focal length in a compact tube.

Key features

• 127mm Maksutov-Cassegrain optical system
• 1500mm focal length with f/11. 81 focal ratio
• Fully multi-coated optics with MHTC-coated corrector plate
• Primary and secondary mirrors with Radiant Aluminium Quartz (RAQ) coatings
• EQ3-2 manual German equatorial mount with slow-motion controls
• Full 360 worm-gear tracking controls on RA and DEC axes
• Aluminium tripod with accessory tray and bubble level
• Model number: 10675

Specifications

Optics

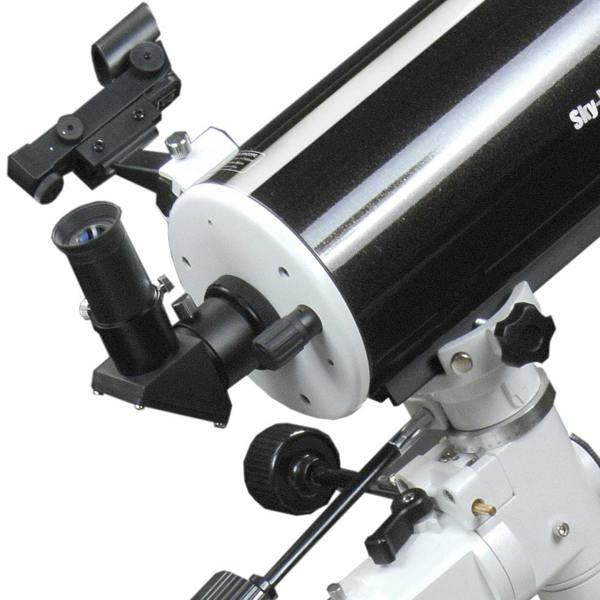

• Optical design: Maksutov-Cassegrain
• Aperture: 127mm
• Focal length: 1500mm
• Focal ratio: f/11. 81
• Minimum magnification: 18
• Maximum magnification: 250
• Highest practical power: x254
• Magnifications with supplied eyepieces: x60 and x150
• Diameter of primary mirror: 127mm
• Secondary diameter: 39mm
• Secondary obstruction by diameter: 31%
• Secondary obstruction by area: 9%
• Dawes limit: 0. 91
• Rayleigh limit: 1. 1
• Limiting magnitude: 13
• Lens coatings: Fully multi-coated
• Glass type: BK7/Borosilicate
• Focusing: Moving primary mirror
• Red dot finder
• Star diagonal: 1. 25"/31. 7mm

Mount

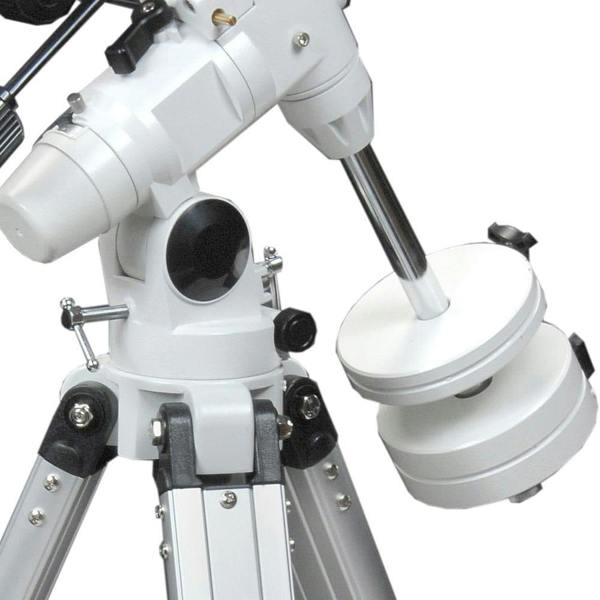

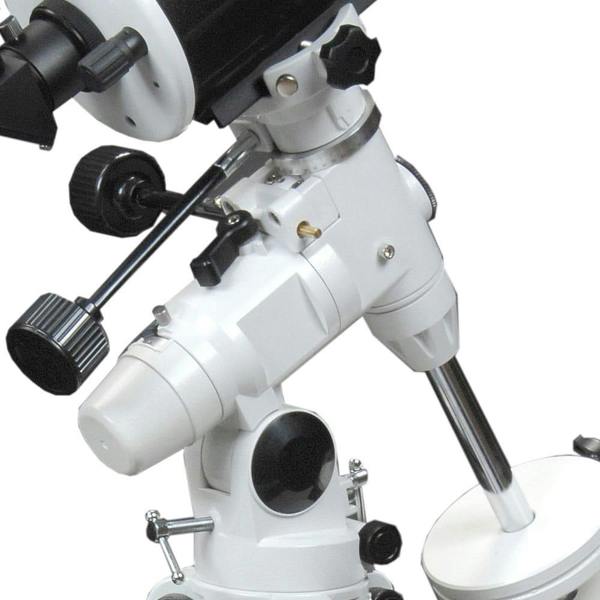

• Mount type: EQ3-2 deluxe equatorial mount
• Manual German equatorial mount
• Slow-motion control wires
• Full 360 worm-gear tracking controls on RA and DEC axes
• Dual metal setting circle dials
• Built-in polar alignment scope holder

Build

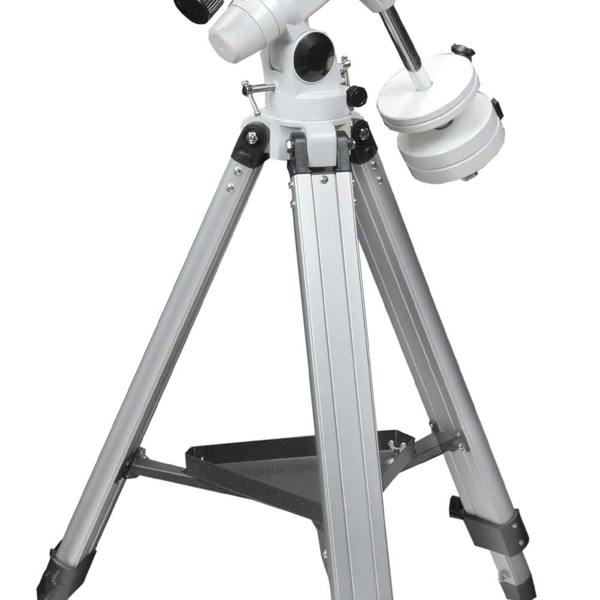

• Tripod: Aluminium tripod with accessory tray
• Net weight: 16. 5kg
• Product weight: 5. 00kg
• Skill level: Beginner

In the box

• 10mm eyepiece
• 25mm eyepiece
• Red dot finder
• 1. 25"/31. 7mm star diagonal
• EQ3-2 deluxe equatorial mount
• Aluminium tripod
• Accessory tray

Support & warranty

• 1-year warranty

Rackhams Reference : BZ67FCZ22D
