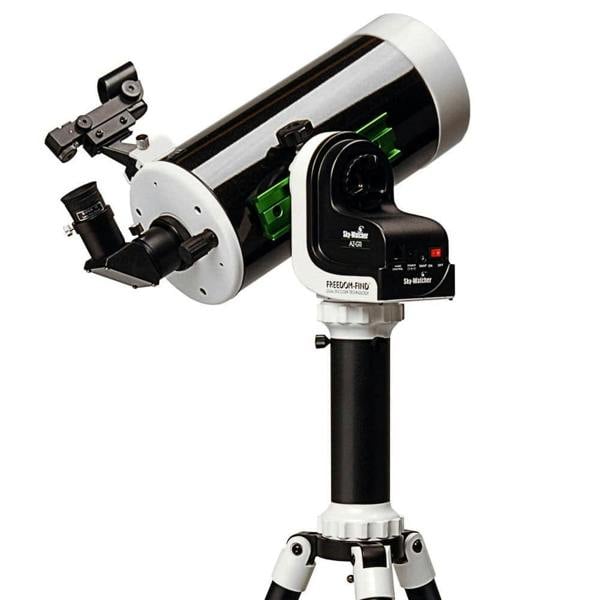

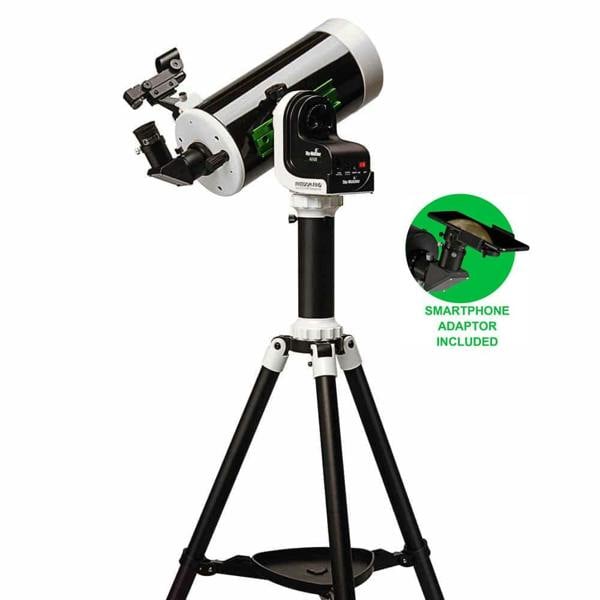

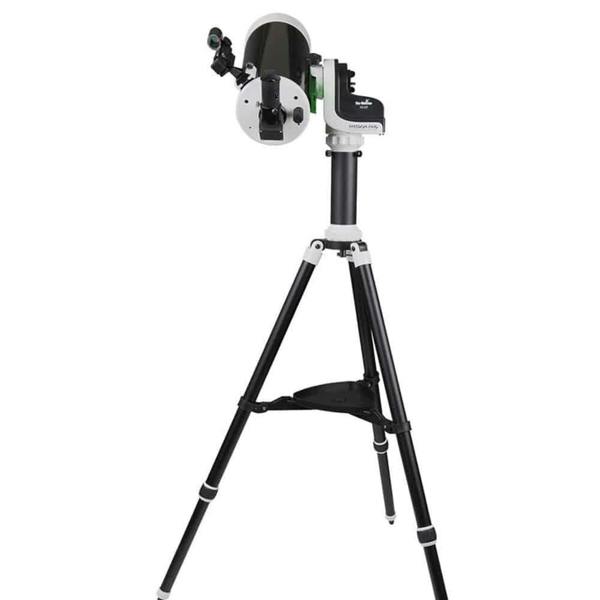

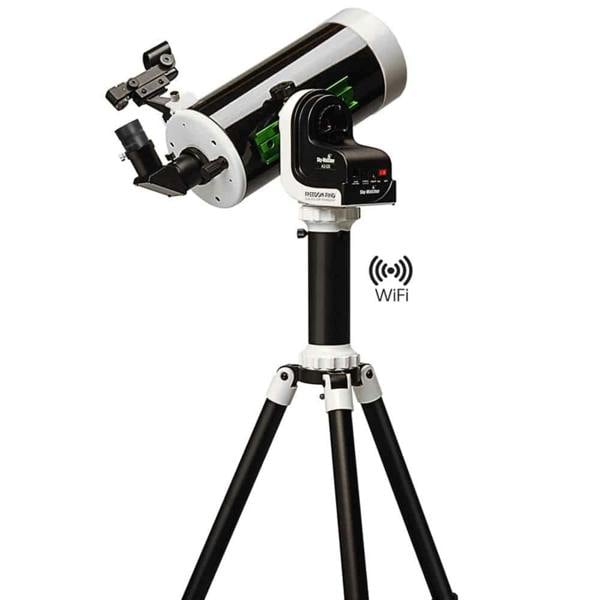

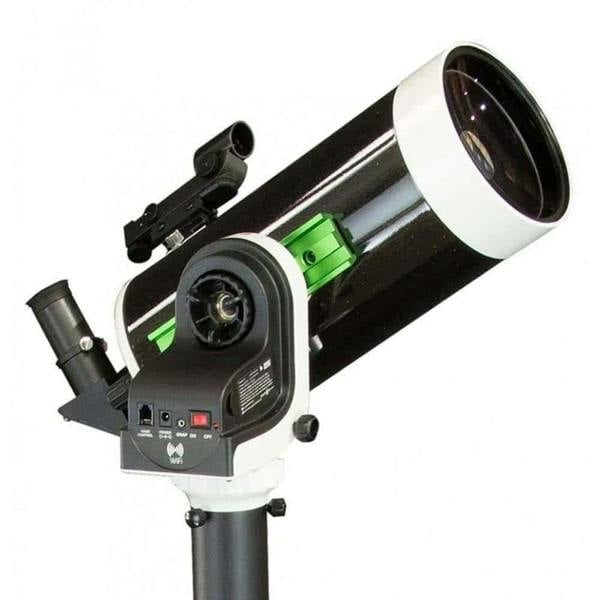

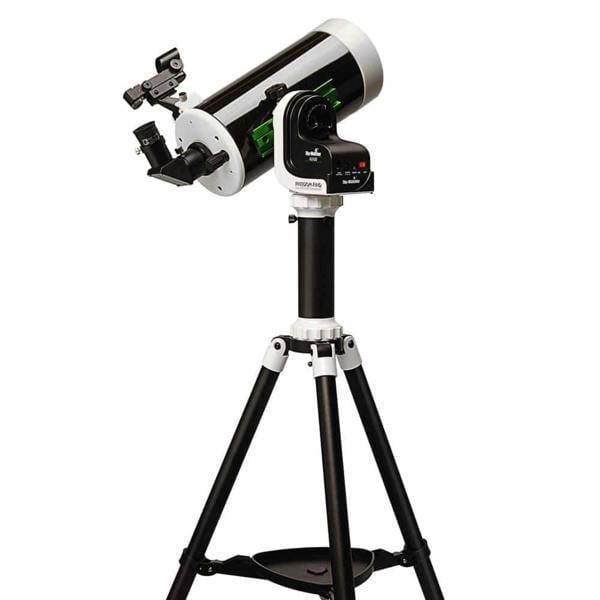

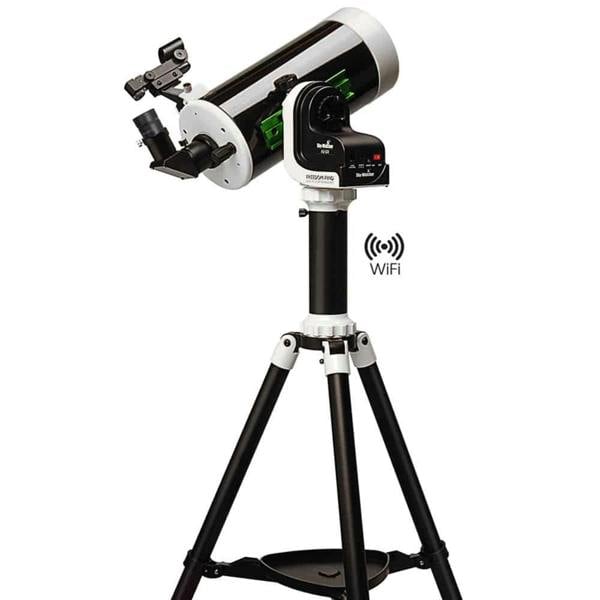

Sky Watcher Skymax-127 AZ-Gti WiFi Go-To Maksutov-Cassegrain Telescope

Compact in scale but notably capable, the Sky-Watcher Skymax-127 AZ-GTi WiFi Go-To Maksutov-Cassegrain telescope brings together a 127mm aperture, 1500mm focal length and computerised alt-azimuth mount in a highly portable format. Built-in Wi-Fi allows wireless control through the free SynScan app for iOS and Android, with access to a database of 10,000+ objects and automatic Go-To positioning.

This Maksutov-Cassegrain optical system is fully multi-coated and uses BK7/borosilicate glass, with primary and secondary mirrors finished with Radiant Aluminium Quartz coatings for up to 94% reflectivity. The long focal length and f/11. 8 ratio suit detailed viewing of the Moon, planets and multiple stars, while Freedom-Find dual-encoder technology lets the telescope be moved manually without losing its position. The package includes an aluminium tripod with adjustable 1. 25-inch legs, pier extension, red dot finder, 90 star diagonal, 10mm and 20mm eyepieces, and a universal smartphone camera adaptor.

Key features

• 127mm Maksutov-Cassegrain optical tube
• 1500mm focal length with f/11. 8 focal ratio
• Computerised AZ-GTi Wi-Fi Go-To alt-azimuth mount
• Built-in Wi-Fi with SynScan app control for iOS and Android
• Freedom-Find dual-encoder technology
• Fully multi-coated optics
• Radiant Aluminium Quartz mirror coatings with up to 94% reflectivity
• Adjustable height aluminium tripod with 1. 25-inch legs
• Universal smartphone camera adaptor for phones 54-90mm wide
• Model number: 10265

Specifications

Optics

• Optical design: Maksutov-Cassegrain
• Aperture: 127mm
• Focal length: 1500mm
• Focal ratio: f/11. 8
• Magnifications with supplied optics: x75 and x150
• Minimum magnification: 18
• Maximum magnification: 250
• Highest practical power: x254
• Diameter of primary mirror: 127mm
• Secondary diameter: 39mm
• Secondary obstruction by diameter: 31%
• Secondary obstruction by area: 9%
• Dawes limit: 0. 91
• Rayleigh limit: 1. 1
• Limiting magnitude: 13
• Lens coatings: Fully multi-coated
• Glass type: BK7/Borosilicate

Mount and control

• Mount type: Computerised alt-azimuth
• Payload capacity: 4. 99kg
• Mount thread: 3/8-inch screw thread
• Database: 10,000+ objects
• Deep sky objects: 10759
• Named stars: 305
• Double stars: 55
• Solar system objects: 7 planets, Sun, Moon
• Alignment methods: Brightest Star Alignment, North-Level Alignment
• Pointing accuracy: Up to 10 arc-minute (RMS)
• Resolution: 2073600 Counts/Rev. , 0. 625 arc-second
• Resolution of Aux. R. A. /Dec. axis encoders: 1068 Counts/Rev. , approx. 20 arc-minutes
• Tracking rates: Sidereal, Lunar, Solar, Alignment-Free Solar Tracking
• Slewing speeds: 0. 5x, 1. 0x, 8. 0x, 16x, 32x, 64x, 128x, 400x, 800x
• Tracking mode: Dual Axis Tracking
• Tracking motor: DC Servo Motor
• Gear ratio: 6480
• Dovetail saddle: 45mm Sky-Watcher/Vixen type
• Interface: SynScan hand control port, DSLR shutter release port, built-in Wi-Fi module
• Connectivity: ASCOM platform for Windows PC
• Controller: Free SynScan app for iOS and Android mobile device or SynScan hand controller available separately

Build

• Weight: 10. 00kg
• Skill level: Beginner

In the box

• 10mm eyepiece
• 20mm eyepiece
• Red dot finder

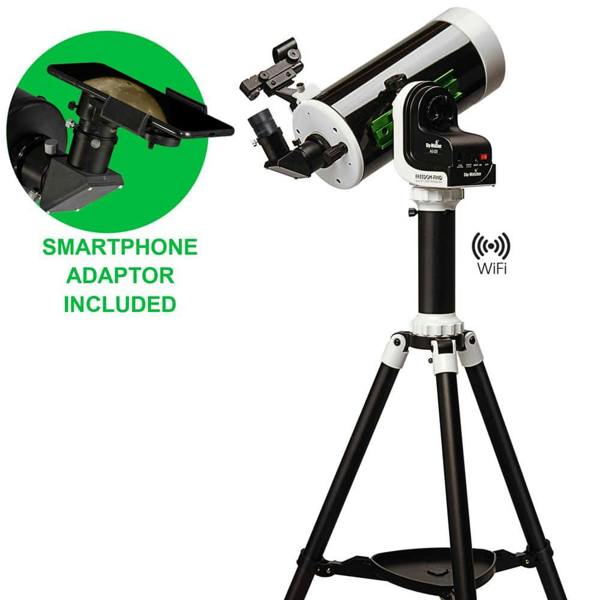

• Universal smartphone camera adaptor
• 90 star diagonal (1. 25-inch)
• AZ-GTi Wi-Fi Go-To alt-azimuth mount head
• Pier extension
• Aluminium tripod

Support & warranty

• 1-year warranty

Rackhams Reference : HRKPP5HW8X
