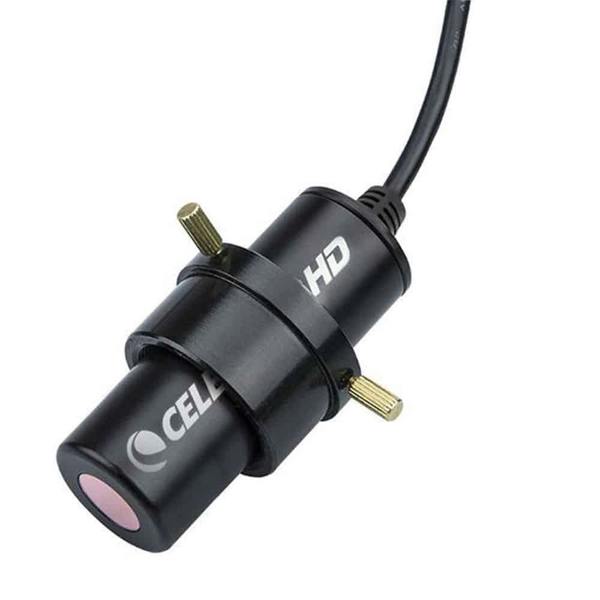

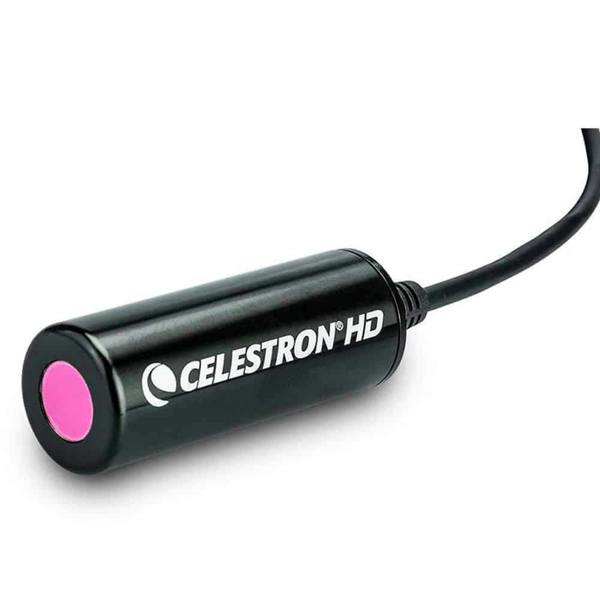

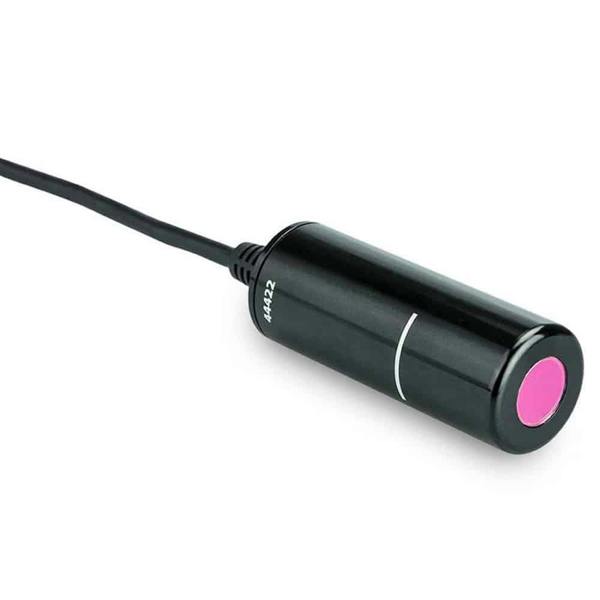

Celestron 5MP Digital Imager Microscope

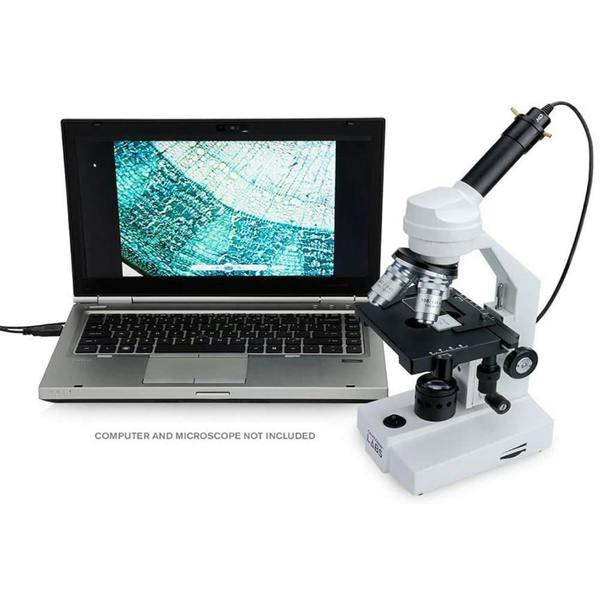

Bring digital capture to an existing microscope with the Celestron 5MP Digital Imager Microscope, a USB-powered microscope camera that replaces a standard 23mm or 30mm eyepiece. Built around a 5MP CMOS sensor in a rugged aluminium housing, it records high-resolution still images and 30fps video while connecting directly to a Windows PC or Mac via USB.

Its compact format makes it a straightforward addition to a traditional microscope, turning it into a digital setup for capturing, saving and sharing specimen images and video. Celestron Imager HD software is included as a download, with tools for measurement, calibration, note taking and live-stream comparison, making it a practical option for study, reports and presentations.

Key features

• 5MP CMOS digital microscope imager

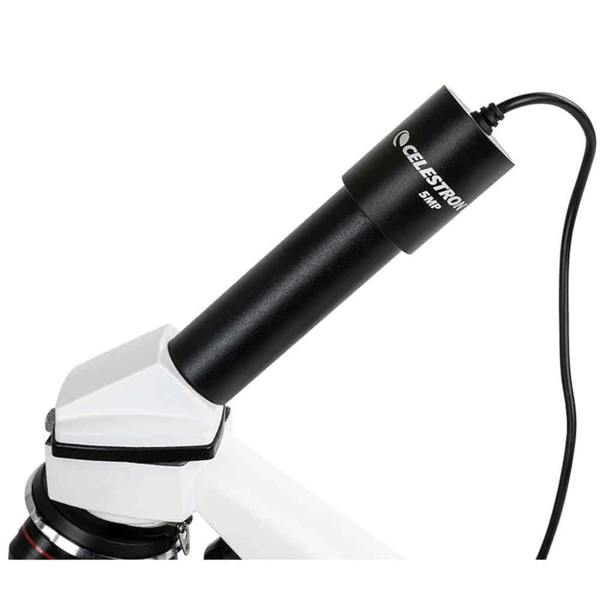

• Replaces standard 23mm or 30mm microscope eyepieces
• Captures high-resolution still images
• Records 30fps video
• USB-powered with direct computer connection
• Compatible with Mac and Windows PCs
• Rugged aluminium housing
• 2-year warranty
• Model number: 44422-CGL

Specifications

Imaging

• Sensor: 5 MP CMOS 0. 5-inch Aptina sensor
• Video format - recording: 30FPS / 720p HD
• Video format - streaming: 30fps VGA
• Shutter trigger: In software

Connectivity and software

• Power standard: 2. 0 USB (connected to PC)
• Cable length: 4 ft
• Software: Celestron Imager HD Software (download)
• Software compatibility: Windows 7. 1 and up (Full 5MP)

Build

• Weight: 42g / 1. 5 oz

Sizing

64mm x 22mm x 22mm / 2. 5 x 0. 9 x 0. 9 inches

In the box

• Adjustable aluminium collar
• Downloadable Celestron HD Digital Imager Software

Support & warranty

2-year warranty.

Rackhams Reference : 5Z5LFYBJQT
