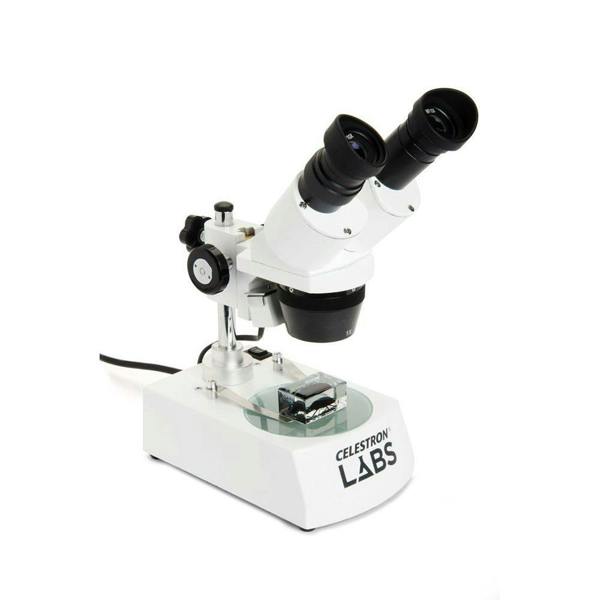

Celestron Labs S10-60 Stereo Microscope

Close, three-dimensional viewing takes centre stage with the Celestron Labs S10-60 Stereo Microscope, a professional-level stereo microscope with a 10x to 60x magnification range. Built with a full-metal body, it combines dual 1x and 3x objectives with two pairs of WF eyepieces at 10x and 20x, giving four viewing powers: 10x, 20x, 30x and 60x.

The stereo head is set at a 45 incline, rotates through 360, and includes interpupillary distance adjustment for comfortable observation. Upper and lower illumination supports a wider range of specimen types, while the coarse rack-and-pinion focus and supplied stage plates suit detailed examination of solid objects such as coins, minerals, insects, leaves and documents. Four insect specimens are included for immediate use.

Key features

• Stereo microscope with 10x to 60x magnification
• Dual stereo (Greenough) objectives: 1x and 3x
• Two pairs of WF eyepieces included: 10x and 20x
• Stereo head with 360 rotation, 45 incline and interpupillary distance adjustment
• Upper and lower illumination
• Full-metal construction with coarse focusing knob
• Two stage plates included: one transparent plate and one black and white stage plate
• Model number: 44208-CGL

Specifications

Optics

• Type of microscope: Stereo
• Magnification range: 10x to 60x
• Objective magnification: 1x and 3x
• Objective type: Refractive
• Eyepieces: (2) WF 10x, (2) WF 20x
• Eyepiece diameter: 30mm (1. 18")

Head and focus

• Head: Stereo with 360 rotatable 45 incline and interpupillary distance adjustability
• Nosepiece: Stereo, rotational
• Focus type: Rack and pinion, coarse focus only
• Focus travel per rotation: 43mm (1. 69")

Illumination and build

• Illumination type: Halogen
• Weight: 3. 00kg

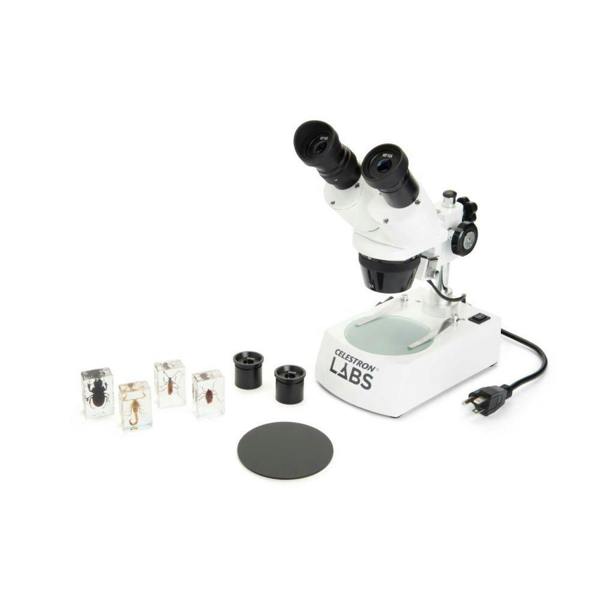

In the box

• 2 bug specimens encased in clear plastic
• 1 transparent stage plate
• 1 black and white stage plate
• (2) WF 10x eyepieces
• (2) WF 20x eyepieces

Support & warranty

• 2-year warranty

Rackhams Reference : 818G9V6GMW
