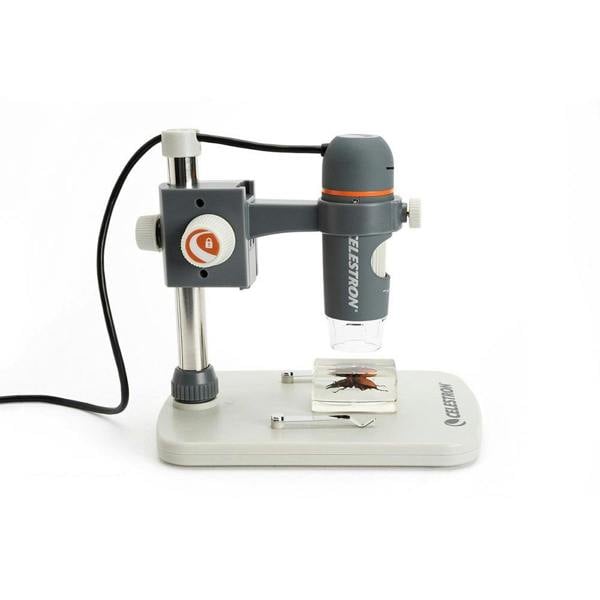

Celestron Handheld Digital Microscope Pro Box

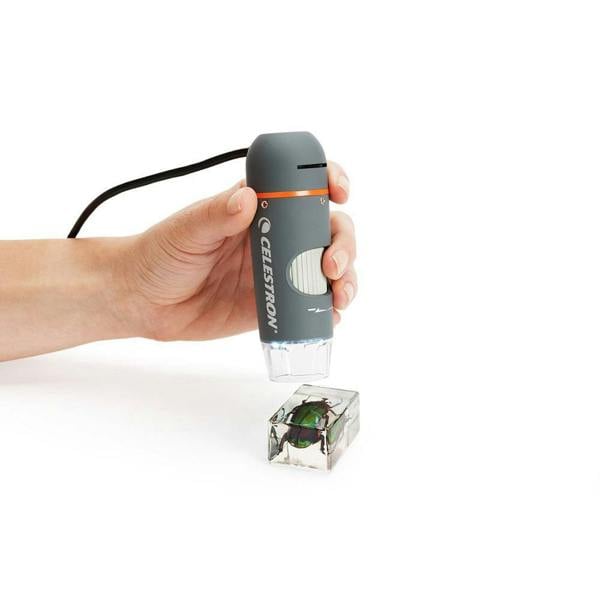

Close-up viewing becomes far more versatile with the Celestron Handheld Digital Microscope Pro, a digital microscope that combines 20x to 200x magnification with a 5. 0MP CMOS sensor and adjustable 8 LED illumination. It captures high-resolution still images, VGA video and time-lapse sequences, making it a practical choice for examining coins, stamps, plants, rocks, circuit boards and traditional slides.

A 5-element IR cut glass lens supports sharper image capture, while the professional adjustable-height stand helps keep the microscope steady for hands-free use. Manual focus runs from 10mm to infinity, and the 4 foot USB 2. 0 cable gives useful reach when working across larger surfaces. Micro Capture Pro software is included for image capture, measuring and note-taking, with support for both Windows and Mac systems.

Key features

• 20x to 200x magnification
• 5. 0MP CMOS 1/3. 2-inch sensor
• Adjustable 8 LED ring illuminator
• 5-element IR cut high-quality glass lens
• Professional adjustable-height stand for hands-free operation
• 4 foot USB 2. 0 cable
• Windows and Mac compatible
• 2-year warranty
• Model number: 44308-CGL

Specifications

Optics

• Magnification range: 20x to 200x
• Focus range: Manual focus from 10mm to infinity
• Illumination: Adjustable 8 LED ring
• Lens: 5 element IR cut high quality glass lens
• Effective focal length: 15. 8mm
• Image distortion: 0. 10%
• Field of view: 13. 0"

Imaging

• Imaging sensor: 5MP CMOS 1/3. 2-inch, 1600 x 1200 pixel array
• Still image resolution: 5MP, 3MP, 1. 3MP, VGA (12MP interpolation)
• Video capture resolution: VGA, 30fps
• Shutter speed: 1 sec. to 1/1000 sec.
• Shutter trigger: On USB cord and in software
• PC connection/interface: USB 2. 0

Software and compatibility

• Measuring software: Celestron Micro Capture Pro with note-taking capabilities
• Operating systems supported: Windows XP or better, Mac 10. 6 or better
• Software languages supported: English, German, French, Spanish, Russian, Italian, Portuguese, Dutch, Polish, Japanese, Korean, Chinese
• Weight: 0. 91kg

Sizing

• Microscope: 110 x 35mm
• Stand: 175 x 140 x 110mm

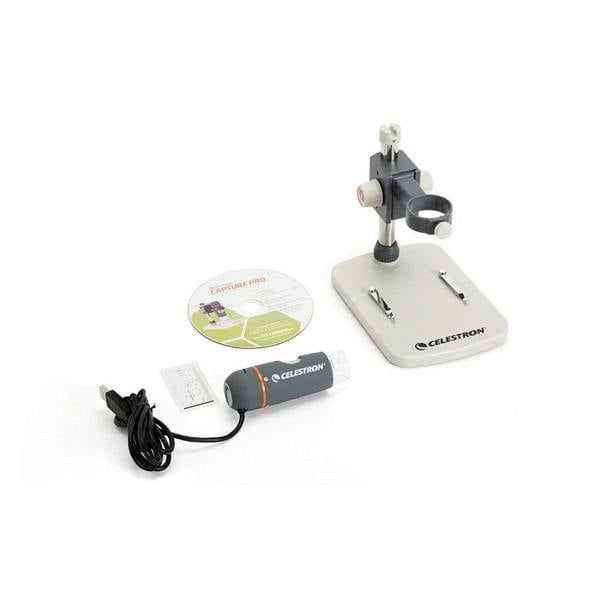

In the box

• Adjustable height stand
• CD/DVD with software and manual
• Lens cloth
• Calibration ruler

Support & warranty

2-year warranty.

Rackhams Reference : 8HXSRUK1JG
