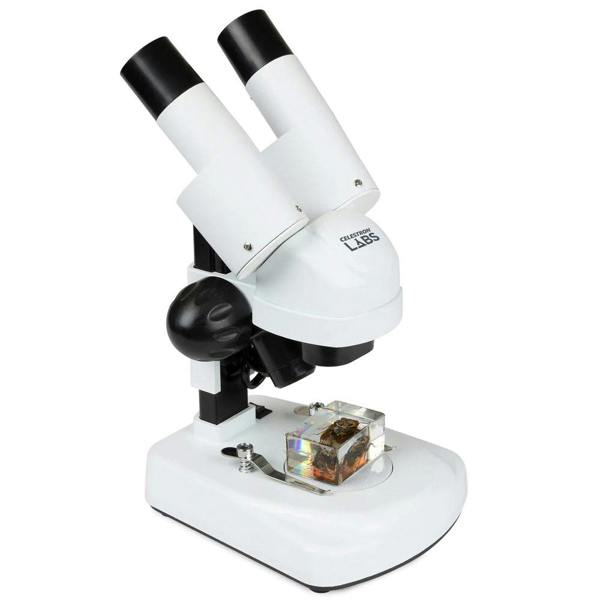

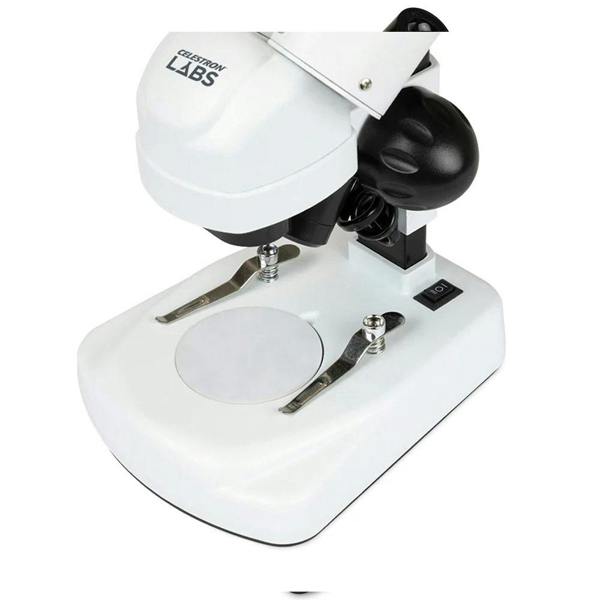

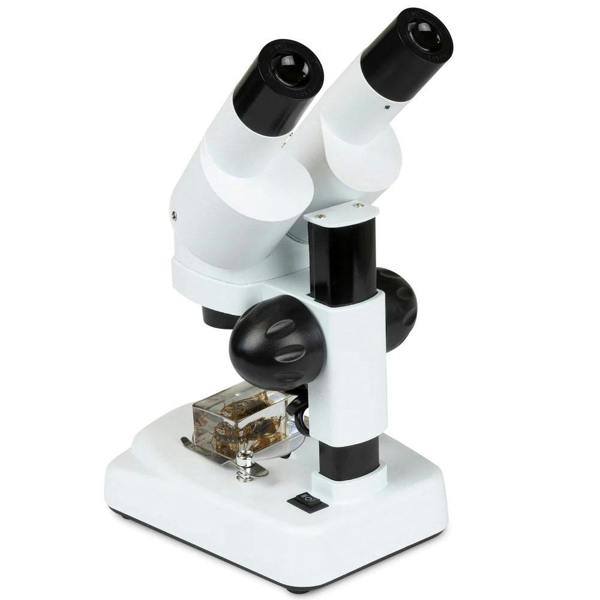

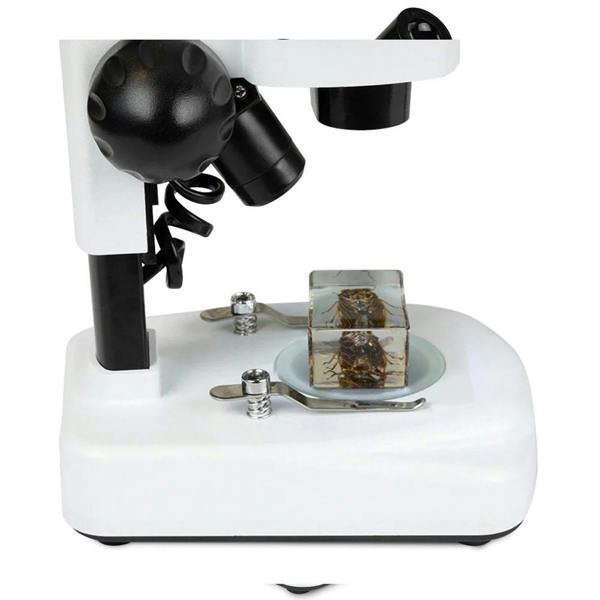

Celestron Labs S20 Angled Stereo Microscope

Close-up viewing becomes more engaging with the Celestron Labs S20 Angled Stereo Microscope, a compact stereo microscope that presents specimens in three dimensions at 20x magnification. Its angled binocular head, paired with 10x eyepieces and 2x objective lenses, offers a more comfortable viewing position, while the adjustable interpupillary distance helps accommodate different users.

Upper and lower LED illumination allow the subject and background to be adapted for a range of specimens, from pebbles and coins to stamps, insects and pond water samples. A rack-and-pinion coarse focus mechanism provides straightforward adjustment, and the removable stage plate with stage clips keeps specimens in place during viewing. Battery power supports portable use on a desk, in a lab or out in the field, making this a practical choice for students and enthusiasts alike.

Key features

• 20x stereo microscope for three-dimensional specimen viewing
• Angled binocular head with adjustable interpupillary distance
• 10x eyepieces with 2x Greenough objective lenses
• Upper and lower LED illumination
• Rack-and-pinion coarse focus
• Powered by 2 AA batteries
• 2-year warranty
• Model number: 44137-CGL

Specifications

Optics

• Type of microscope: Stereo
• Magnification range: 20x
• Head: Stereo, vertical position, adjustable interpupillary distance adjustability
• Eyepieces: (2) 10x
• Eyepiece diameter: 23mm (0. 9-inch)
• Nosepiece: Stereo, fixed
• Objectives type: Refractive
• Objectives magnification: Stereo (Greenough); 2x

Illumination and focus

• Illumination type: LED
• Illumination positions: Upper and lower
• Illumination adjustability mechanism: No
• Focus types: Rack and pinion, coarse focus only
• Focus travel per rotation: 15mm (0. 59-inch)
• Condenser type: None
• Condenser N. A. : None
• Stage diaphragm: None

Build

• Stage: Removable plastic plate, white
• Power source: AA battery
• Battery option: (2) AA (included)
• Weight: 2. 00kg

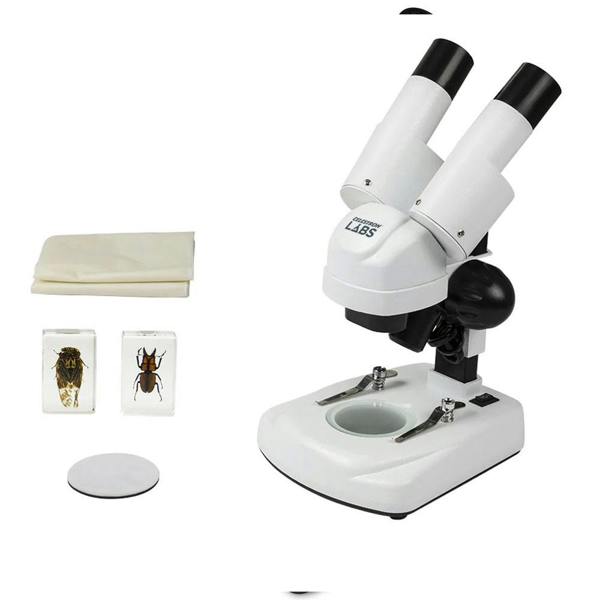

In the box

• 2 bug specimens encased in clear plastic
• 2 stage plates
• Dust cover
• 2 AA batteries

Support & warranty

• 2-year warranty
