Celestron LCD Digital Microscope II

Bringing live specimen viewing and image capture together in one bench-top instrument, the Celestron TetraView LCD Digital Microscope is an LCD biological microscope with 40x to 1600x magnification, a 180 rotatable 3. 5-inch TFT screen and a built-in 5MP digital camera. Achromatic 4x, 10x and 40x objectives sit on a triple nosepiece with click stop, while the camera sensor acts as a 10x eyepiece lens to deliver 40x, 100x and 400x optical powers, with 4x digital zoom extending magnification up to 1600x.

A fully adjustable mechanical stage supports precise slide movement, and LED illumination provides clear viewing for specimen work in schools, labs and research settings. The integrated 5MP CMOS sensor captures high-resolution images and 30 fps SD video, with TV output available for display on a larger monitor, television or projector. A measuring reticle is included for comparing specimen sizes, and battery operation is supported via 4 AA batteries.

Key features

• 40x to 1600x magnification
• 180 rotatable 3. 5-inch full-colour TFT LCD screen with onboard software
• Built-in 5MP digital camera with 5MP CMOS sensor
• Triple nosepiece with click stop and achromatic 4x, 10x and 40x objectives
• Fully adjustable mechanical stage
• LED illumination
• TV output for display on larger screens
• Battery operation with 4 AA batteries
• 2-year warranty
• Model number: 44341-CGL

Specifications

Optics

• Magnification range: 40x to 1600x
• Objective magnifications: 4x, 10x, 40x
• Objective type: Achromatic
• Objective standard: DIN 35 RMS
• Nosepiece: Triple with click stop
• Head: 180 rotatable head with 3. 5-inch TFT LCD screen
• Illumination type: LEDs

Imaging

• Digital camera: Built-in 5MP
• Sensor: 5MP CMOS
• Video capture: 30 fps SD video
• Digital zoom: 4x
• TV output: Yes
• Measuring reticle: Included

Build

• Type of microscope: LCD Desktop
• Stage: Fully adjustable mechanical stage
• Battery options: Yes (4 AA)
• Weight: 3. 45 kg

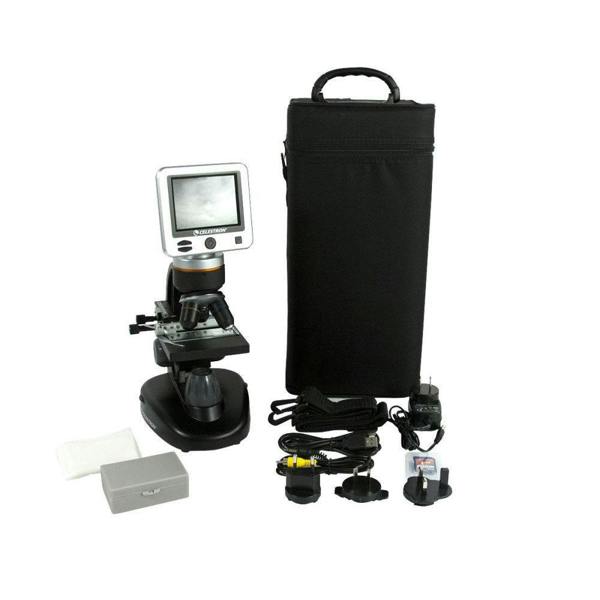

In the box

• 1GB SD card
• Dust cover
• Rugged canvas carrying case with shoulder strap
• 5 prepared slides
• Mains AC adapter

Support & warranty

2-year warranty.

Rackhams Reference : 6V6VS2YX4T
