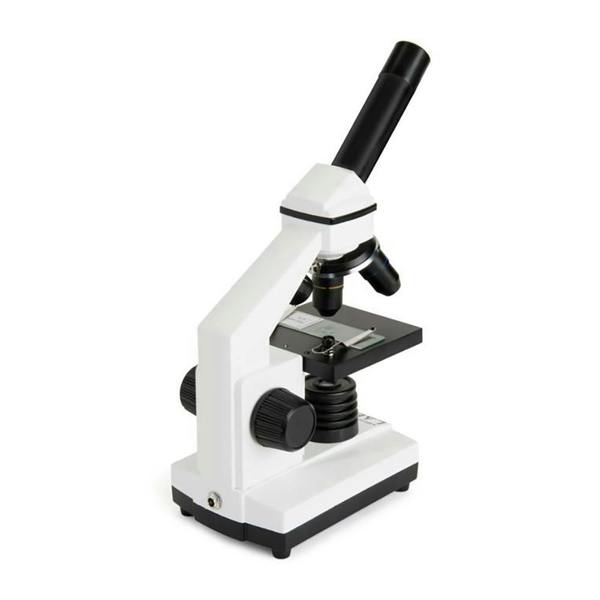

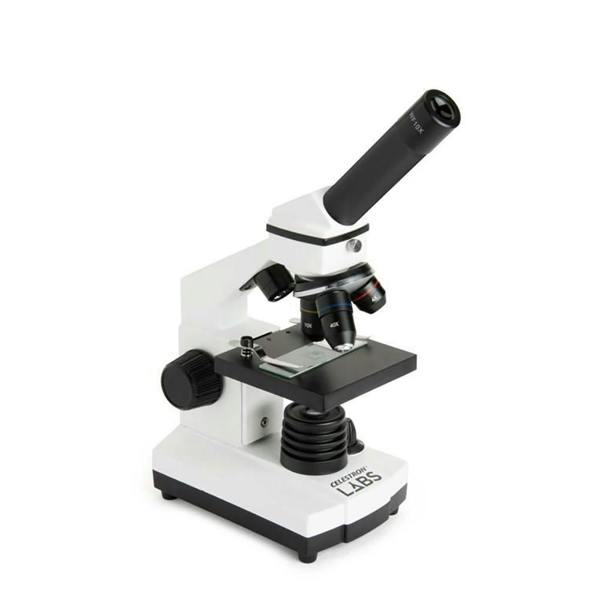

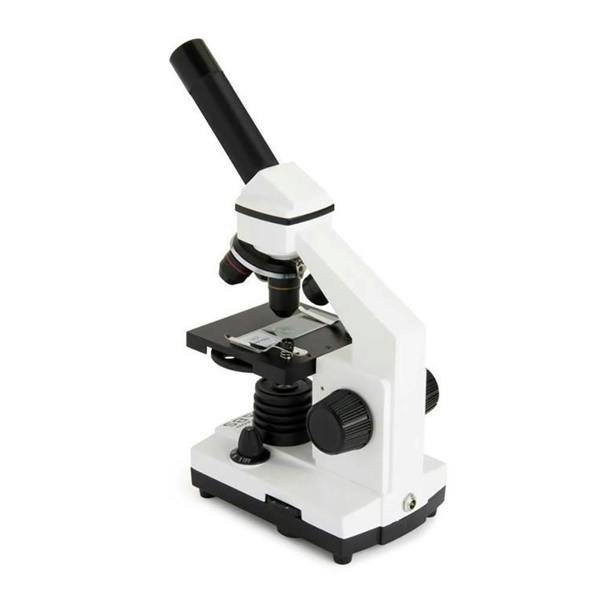

Celestron Labs CM800 Compound Microscope

Built for practical specimen study at home, in schools or in the lab, the Celestron Labs CM800 is a compound microscope with a 40x to 800x magnification range, a monocular head and adjustable upper and lower LED illumination. Its optical set-up combines 10x and 20x eyepieces with 4x, 10x and 40x objective lenses, giving a broad range of viewing powers for close inspection of prepared slides and other specimens.

An all-metal construction gives the microscope a stable, durable feel, while the 45 inclined monocular head supports comfortable viewing. The adjustable stage includes metal clips to hold slides securely, and the simple condenser with rotating disc diaphragm offers 6 aperture sizes to control lower illumination. Power comes from either the supplied universal AC adapter or 3 AA batteries, making the CM800 equally suited to fixed workspaces and field use.

Key features

• Compound microscope with 40x to 800x magnification
• Monocular head with 45 incline
• 10x and 20x eyepieces with 4x, 10x and 40x objective lenses
• Adjustable upper and lower LED illumination
• Adjustable stage with metal clips
• All-metal construction
• CE marked
• Model number: 44128-CGL

Specifications

Optics

• Magnification: 40x to 800x
• Eyepieces: (1) WF 10X / (1) WF 20X
• Objectives: (3) 4x, 10x, 40x on triple click rotating objective turret
• Head: Monocular with 45 incline
• Focuser: Course focus
• Illuminator: Adjustable, upper and lower, LED
• Condenser: NA, 0. 65
• Diaphragm: Disc diaphragm with 6 aperture sizes

Build

• Stage: Adjustable stage with metal clips, 3. 5 in x 3. 5 in (88mm x 88mm)
• Power: 2 options: universal AC adapter and 3AA batteries (included)
• Weight: 1. 108 kg

Sizing

5. 0 in x 6. 0 in x 11. 0 in (127 mm x 152 mm x 279 mm)

In the box

• (1) WF 10X eyepiece
• (1) WF 20X eyepiece
• 3 objective lenses
• 10 prepared slides
• 3 AA batteries
• Universal AC adapter

Support & warranty

2-year warranty.
