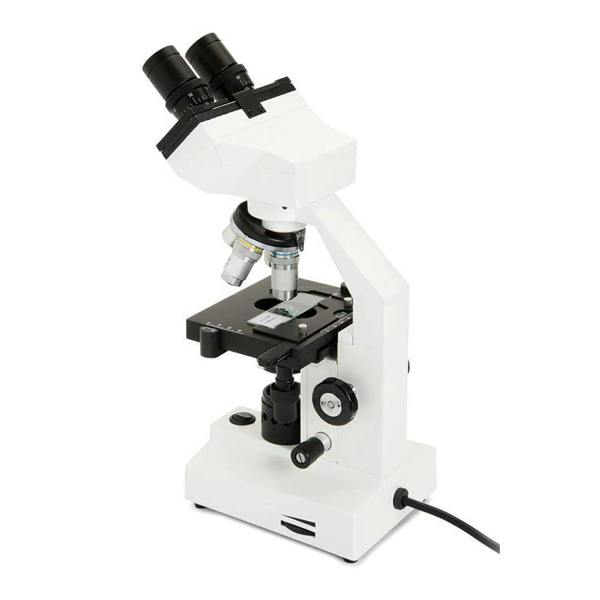

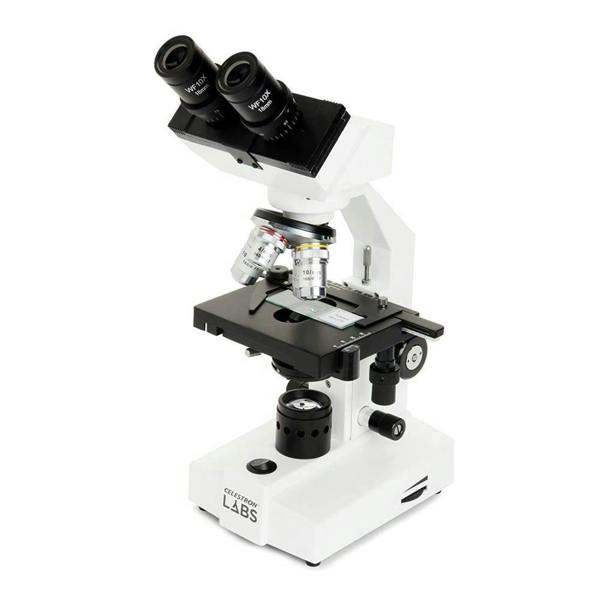

Celestron Labs CB2000CF Compound Binocular Microscope

Built for more involved specimen study, the Celestron Labs CB2000CF is a compound binocular microscope with a 40x to 2000x magnification range, an adjustable binocular head and halogen lower illumination. Its optical set-up combines 10x and 20x eyepieces with four achromatic objective lenses at 4x, 10x, 40x and 100x immersion, giving a broad range of viewing powers for school, laboratory and general scientific work.

An all-metal body gives the microscope a stable feel on the bench, while the fully mechanical stage allows precise slide positioning. Coarse and fine focus controls are paired with an N 1. 25 Abbe condenser and iris diaphragm to concentrate and control illumination beneath the specimen. Ten prepared slides, three colour filters and immersion oil are included, so there is useful material to begin with straight away.

Key features

• 40x to 2000x magnification range

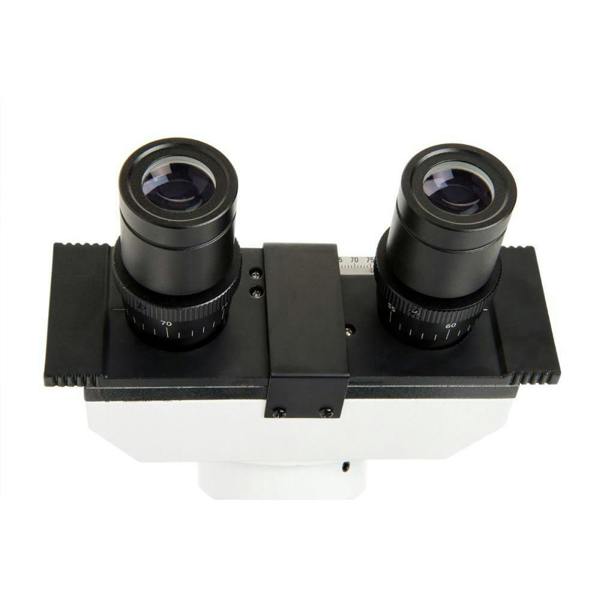

• Binocular head with 360 rotation, 45 incline and interpupillary distance adjustment
• 10x and 20x eyepieces, including a 10x eyepiece with pointer

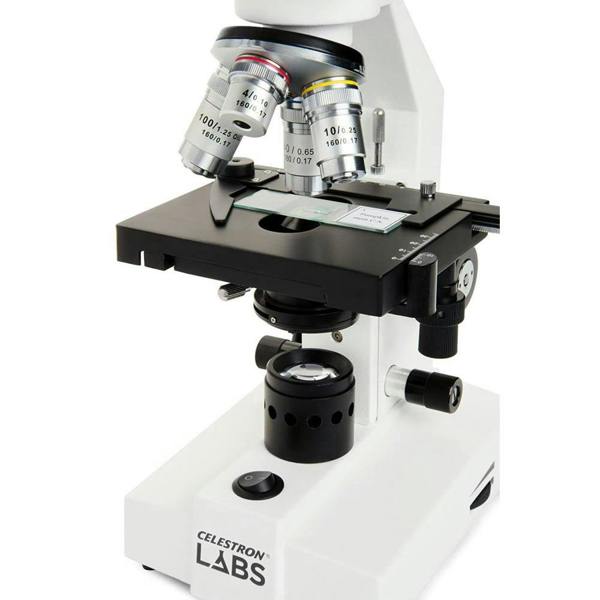

• Four DIN achromatic objective lenses: 4x, 10x, 40x and 100x immersion
• All-metal construction with fully mechanical stage
• Coarse and fine focus controls
• Built-in adjustable halogen lower illumination
• N 1. 25 Abbe condenser with iris diaphragm
• Model number: 44131-CGL

Specifications

Optics

• Microscope type: Compound
• Magnification range: 40x to 2000x
• Magnifications: 40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x
• Eyepiece magnification: (1) 10x and (1) 20x
• Eyepiece diameter: 23. 2mm (0. 91-inch)
• Nosepiece: Quadruple, rotational
• Objective type: Refractive
• Objective standard: DIN
• Objective magnification: (4) 4x, 10x, 40x, 100x immersion, all achromatic
• Objective thread: 4/5" x 1/36"
• Illumination type: Halogen

Head and focus

• Head: Binocular with 360 rotatable 45 incline and interpupillary distance adjustability
• Focus type: Rack and pinion, coarse and fine focus (individual dials)
• Focus travel per rotation: 0. 1mm (0. 004")

Build

• Weight: 4. 30kg

In the box

• 10 prepared slides
• 3 colour filters: blue, white opaque and green
• Immersion oil

Support & warranty

• 2-year warranty
