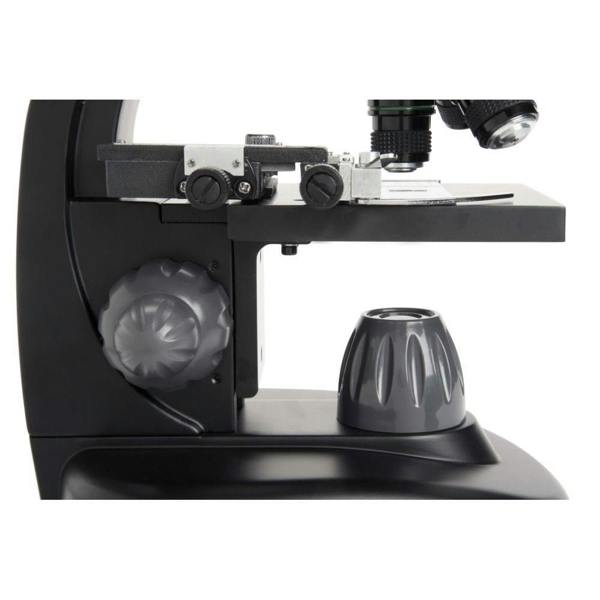

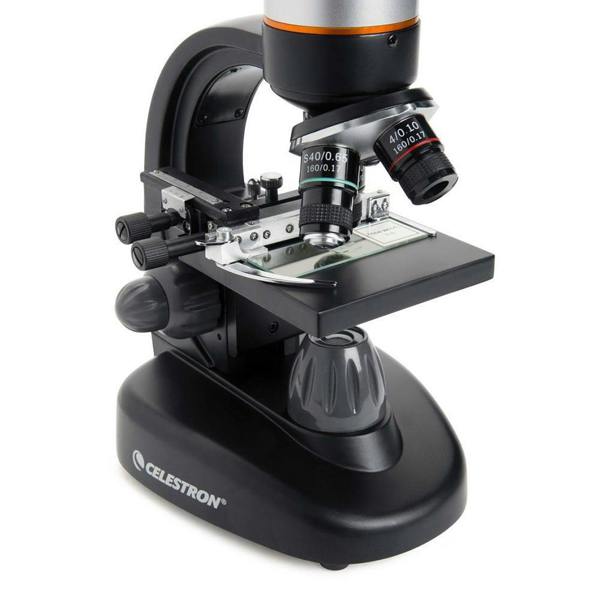

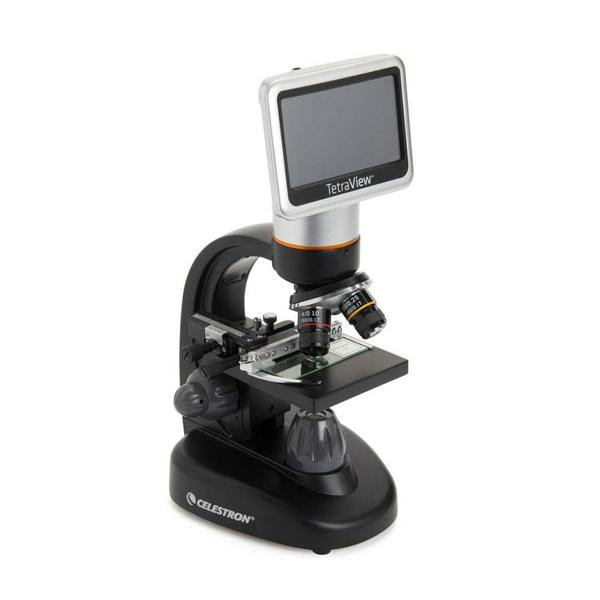

Celestron TetraView LCD Digital Microscope

Built for detailed specimen study and easy image capture, the Celestron TetraView LCD Digital Microscope combines 40x to 400x magnification with a 4. 3-inch touchscreen LCD and adjustable LED illumination. This LCD desktop microscope includes a 5MP CMOS sensor, a fully mechanical stage and four fully achromatic objective lenses, bringing practical control and digital viewing together in one professional-level instrument.

The 180 rotatable screen makes shared viewing more straightforward, while AV/TV output allows images to be shown on a television or projector. With coarse and fine focus controls, a quad nosepiece with click stop, and a filter wheel/diaphragm, it is well suited to slide-based cellular specimen work in labs, schools and serious hobby settings. A 2GB SD card is included for storing photos and videos, and the SD card slot supports up to 32GB.

Key features

• 40x to 400x magnification, up to 1600x with digital zoom
• 4. 3-inch TFT full-colour touchscreen LCD
• Built-in 5MP CMOS digital camera
• Four fully achromatic objective lenses: 4x, 10x, 20x and 40x
• Adjustable LED bottom illumination
• 180 rotatable LCD screen
• Fully mechanical stage with coarse and fine focus knobs
• AV/TV output and SD card slot supporting up to 32GB
• 2-year warranty
• Model number: 44347-CGL

Specifications

Optics

• Magnification: 40x to 400x
• Digital zoom magnification: up to 1600x
• Objective magnifications: 4x, 10x, 20x, 40x
• Objective type: achromatic
• Objective standard: DIN 35 RMS
• Nosepiece: quad with click stop
• Illumination type: LEDs

Imaging

• Screen: 4. 3-inch TFT LCD touchscreen
• Sensor: 5MP CMOS
• Output: AV/TV
• Storage: 2GB SD card included
• SD card slot supports up to 32GB

Build

• Type of microscope: LCD desktop
• Head: 180 rotatable head with 4. 3-inch TFT LCD screen
• Stage: fully mechanical
• Focus: coarse and fine focus knobs
• Filter wheel/diaphragm
• Battery options: 4AA batteries
• Weight: 4. 15kg

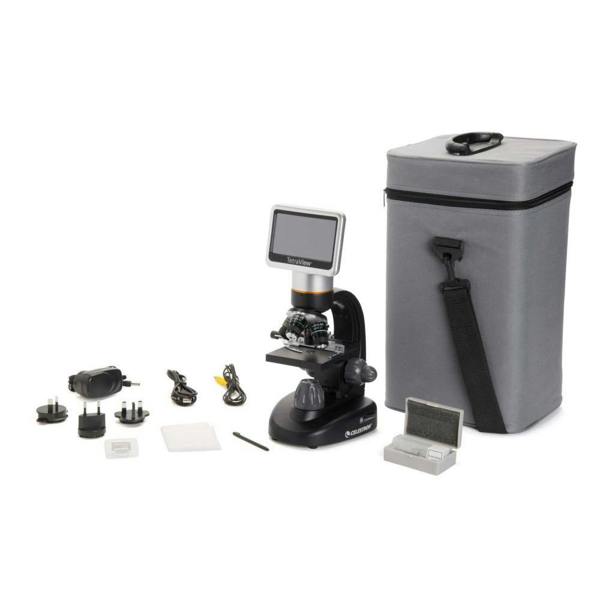

In the box

• 2GB SD card
• 7 prepared slides
• Hard carrying case
• Dust cover
• Touch pen
• USB cable
• AV out cable
• Mains AC adapter

Support & warranty

2-year warranty.
