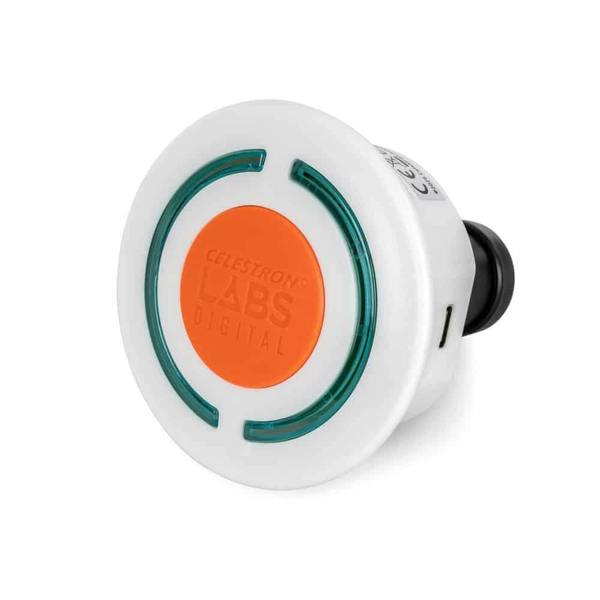

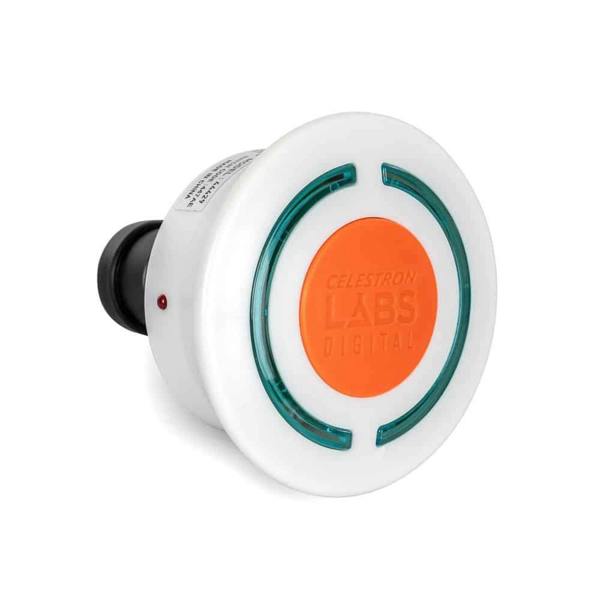

Celestron Labs Digital 2MP Wi-Fi Microscope Imager

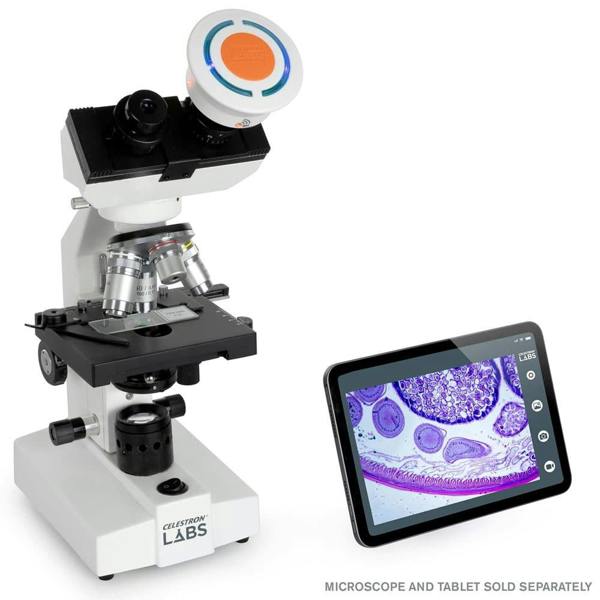

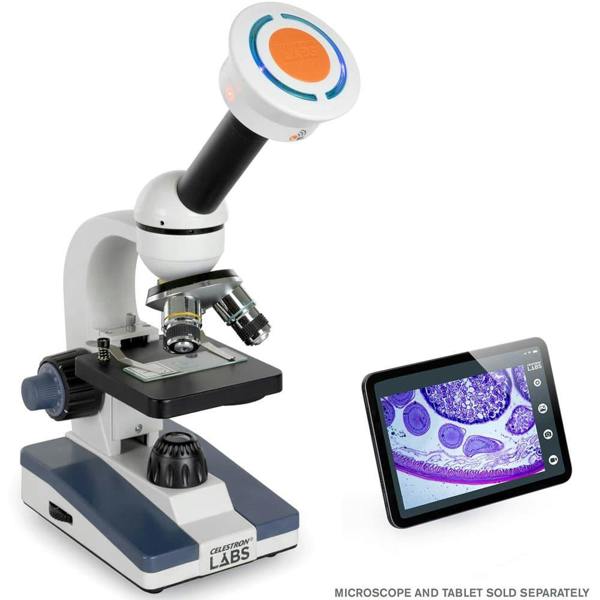

Bring wireless digital imaging to an existing microscope with the Celestron Labs Digital 2MP Wi-Fi Microscope Imager. This microscope camera replaces a 23mm eyepiece directly and includes an aluminium collar adapter for 30mm stereo scope eyepiece tubes, turning a traditional optical microscope into a digital viewing and capture system with live Wi-Fi streaming to compatible smart devices.

A 2MP CMOS sensor and 30x magnification support still image and video capture, while the Celestron Labs Digital Wi-Fi app for iOS and Android provides live viewing, image capture and video recording from a tablet or smartphone. The rechargeable 1100 mAh lithium-ion battery delivers up to 3 hours of cordless operation, with USB-C charging included. For classroom, lab and shared specimen viewing, it offers a practical way to display observations without relying on a single eyepiece.

Key features

• 2MP Wi-Fi microscope imager for optical microscopes
• Fits 23mm eyepiece tubes and 30mm stereo scope eyepiece tubes with the supplied adapter
• 30x magnification
• Live viewing, still image capture and video recording via the Celestron Labs Digital Wi-Fi app
• Compatible with iOS and Android
• Rechargeable lithium-ion battery with up to 3 hours of operation
• USB-C charging
• 2-year warranty
• Model number: 44429-CGL

Specifications

Optics

• Type of microscope: Wi-Fi enabled microscope camera
• Magnification: 30x
• Sensor: 2MP CMOS
• Sensor size: 1/4-inch SONY sensor
• Pixel size: 2. 9 μm x 2. 9 μm

Imaging

• Still image capture resolution: 1920x1080, 1280x720, 640x480
• Video resolution: 1920x1080, 1280x720, 640x480
• Video format - recording: MJPEG
• Frame rate: 30 fps @ 1024x768, 12 fps @ 2592x1944
• Shutter trigger position: in app
• Memory type: no memory; uses smart device memory to save images and video
• Software: Celestron Labs Digital Wi-Fi app
• Software compatibility: iOS and Android

Power

• Power source: rechargeable lithium-ion battery (1100 mAh)
• Battery life on full charge: 3 hours
• Port in: USB-C port for charging
• Port out: N/A
• Cable: USB-C cable for charging battery

Build

• Weight: 97g

Sizing

75mm x 75mm x 81. 3mm

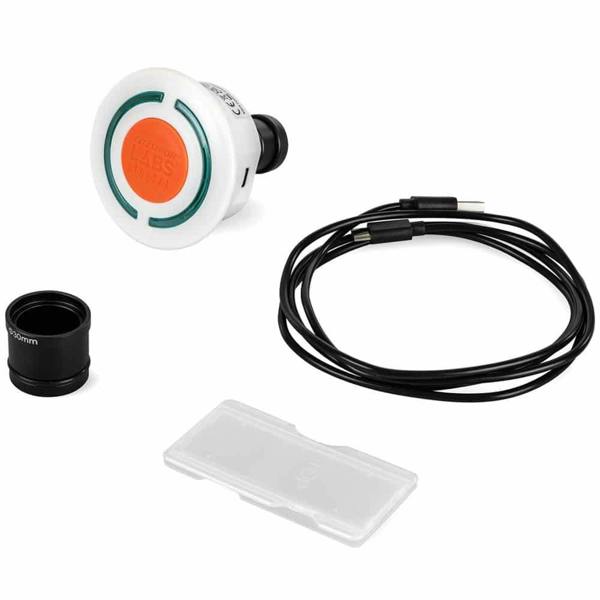

In the box

• Aluminium collar adapter for 30mm stereo scope eyepiece tube
• Rubber lens cover
• Calibration ruler in plastic case
• USB-C charging cable

Support & warranty

2-year warranty.

Rackhams Reference : 1RIDDN2F83
