Celestron Labs Digital Wi-Fi Microscope

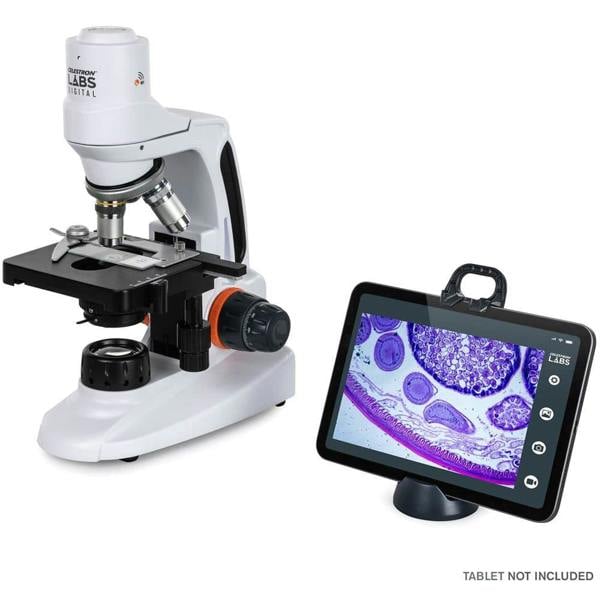

Bringing live microscopy to a phone or tablet, the Celestron Labs Digital Wi-Fi Microscope combines a 48x to 480x magnification range with wireless viewing and LED illumination in a compact desktop format. This Wi-Fi microscope uses a 12x digital eyepiece with a 2MP Sony IMX290 LQR-XC sensor, paired with three finite plan achromatic CF objectives at 4x, 10x and 40x for clear, accurate viewing across a range of specimen detail.

A mechanical double-layer stage with smooth X/Y movement keeps slides secure and easy to position, while coarse and fine focus controls allow precise adjustment. The Celestron Labs Digital Wi-Fi App for iOS and Android supports live viewing, still image capture, video recording and on-screen measurement from a smart device. Its portable body includes a built-in carry handle, with mains power supplied by a universal AC adapter and optional 3AA battery backup for up to 2 hours.

Key features

• 48x, 120x and 480x magnification
• 12x digital eyepiece with integrated CMOS sensor and Wi-Fi module
• Three finite plan achromatic CF objectives: 4x, 10x and 40x

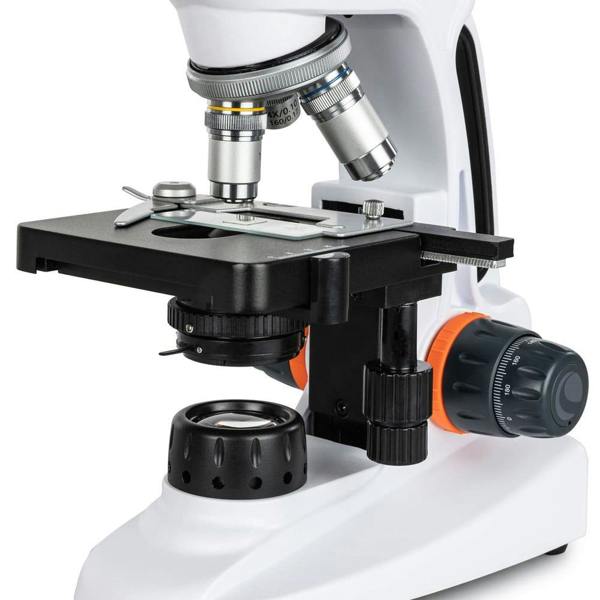

• Mechanical double-layer stage with adjustable X/Y movement
• Bottom LED illumination with base-mounted adjustment dial

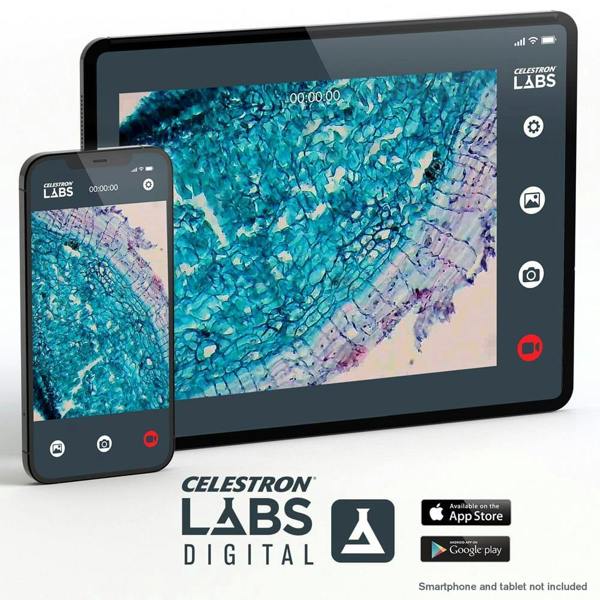

• Celestron Labs Digital Wi-Fi App for iOS and Android
• Still image and video capture at up to 1920x1080
• 2-year warranty
• Model number: 44351-CGL

Specifications

Optics

• Type of microscope: Wi-Fi desktop with triple objectives
• Magnification range: 48x, 120x and 480x
• Eyepiece type: CMOS sensor in lieu of eyepiece (12x magnification)
• Objective type: (3) finite plan achromatic CF objectives on turret
• Objective standard: DIN 35 RMS
• Objective magnification: 4x, 10x, 40x
• Nosepiece: Triple with click stop
• Field of view: 4x: 37. 5mm | 10x: 6. 7mm | 40x: 0. 65mm
• Objective thread: WJ 4/5" x 1/36"
• Condenser type: Abbe condenser with iris diaphragm and filter
• Condenser N. A. : N. A. 1. 25

Imaging

• Head: Head has sensor and Wi-Fi module for sending wireless streaming images
• Sensor: 2MP | 1/2. 8-inch Sony IMX290 LQR-XC
• Pixel size: 2. 9μm x 2. 9μm
• Still image capture resolution: 640x480 | 1280x720 | 1920x1080
• Video resolution: 640x480 | 1280x720 | 1920x1080
• Shutter trigger position: In device app
• Software: Celestron Labs Digital Wi-Fi App
• Software compatibility: iOS and Android
• Memory type: No memory; uses smart device memory to save images and video

Focus and illumination

• Focus types: Coarse and fine focus
• Focus travel (per rotation): 0. 7mm to 35. 3mm (0. 027" to 1. 39")
• Illumination type: LEDs (3W/4V-220V/110V)
• Illumination position: Bottom illuminator
• Illumination adjustability mechanism: Adjustment dial on base

Stage and power

• Stage type: Mechanical double layer, 115mm x 125mm (4. 52" x 4. 92")
• Stage size: 115mm x 125mm (4. 5" x 4. 9")
• Moving range: 70mm x 30mm (2. 75" x 1. 18")
• Power source: Universal AC adapter, 100 to 240V, 50/60Hz
• Battery option: 3AA batteries for 2 hours backup power
• Port in: AC adapter / 5-6V DC, 200-1000mA tip positive electrical input
• Product weight: 1600g (56 oz)

Sizing

Microscope dimensions: 170mm x 140mm x 330mm (6. 7" x 5. 5" x 13")

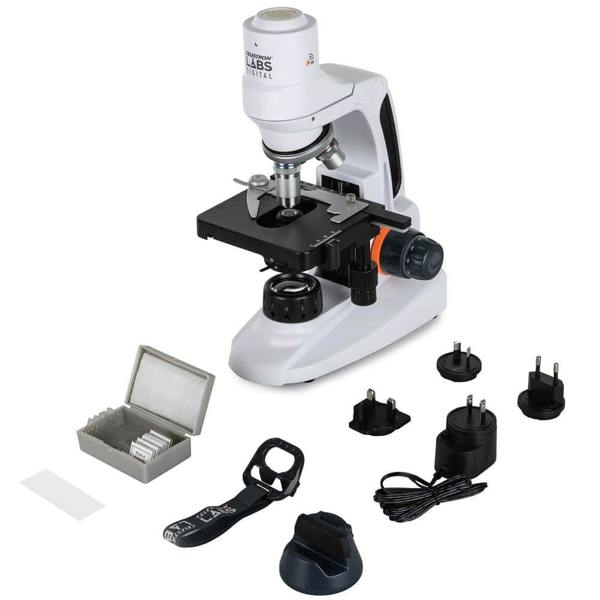

In the box

• 5 prepared slides
• Calibration slide
• AC adapter

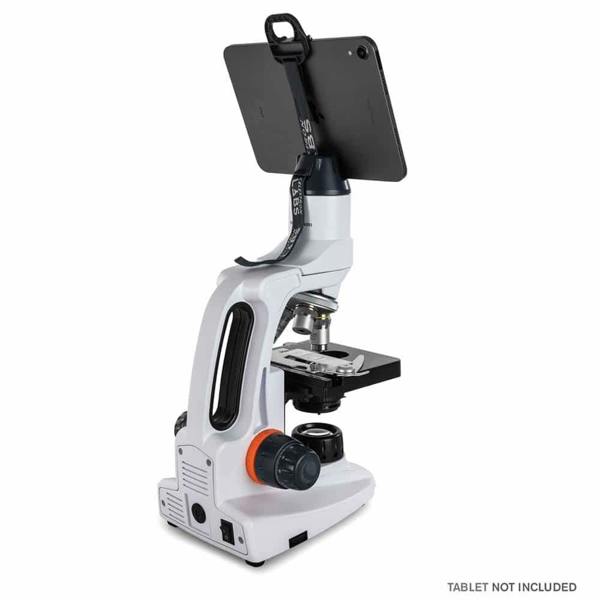

• Smart device holder with safety strap

Support & warranty

2-year warranty.
