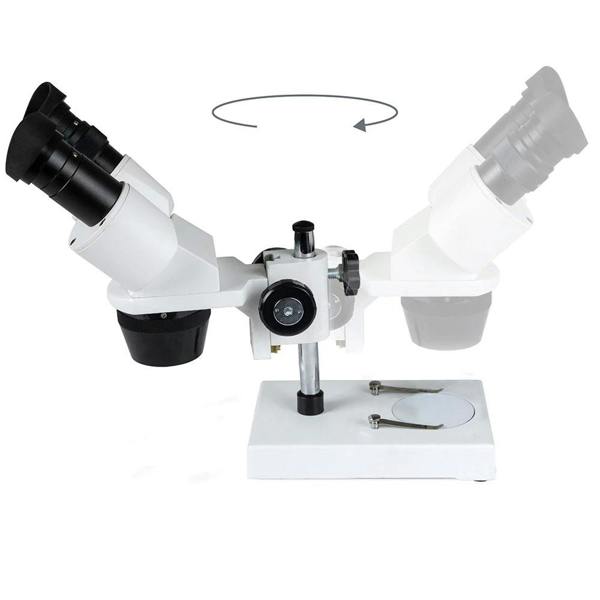

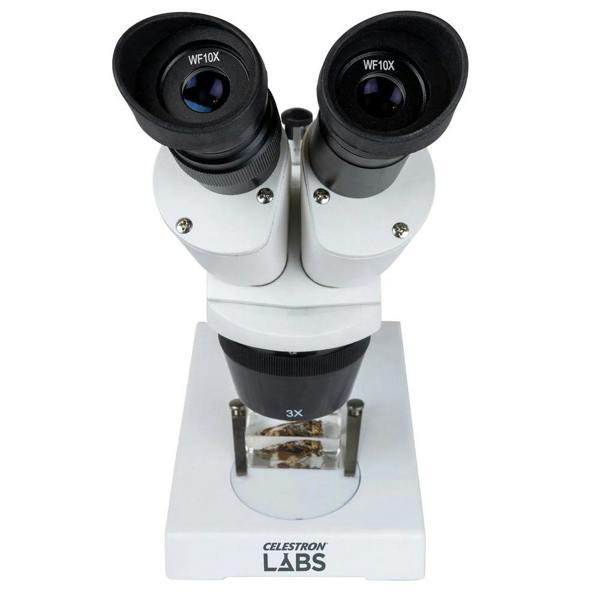

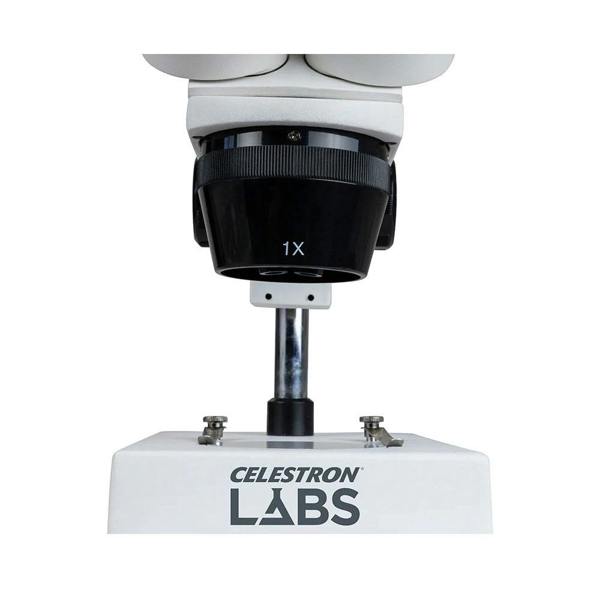

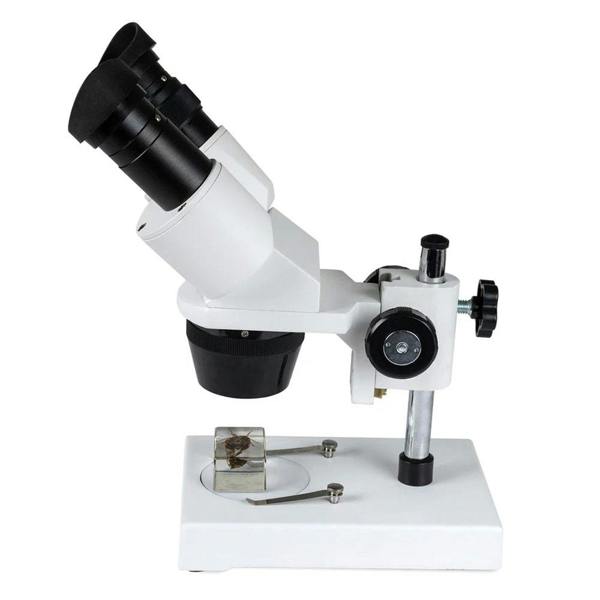

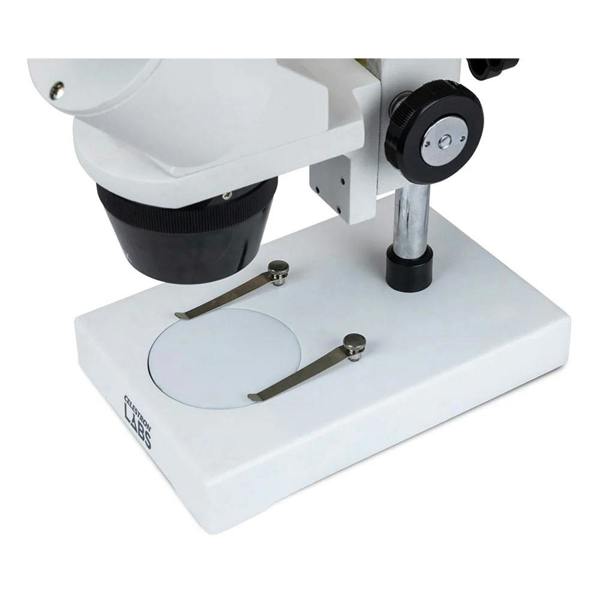

Celestron Labs S1030N Stereo Microscope

Close, three-dimensional specimen viewing is the focus of the Celestron Labs S10-30N, a stereo microscope with selectable 10x and 30x magnification. This cordless binocular model uses two WF 10x eyepieces with 1x and 3x Greenough objectives, paired with natural light illumination for examining solid subjects such as rocks, leaves, fossils and insects.

An ergonomic 45 inclined binocular head supports more comfortable viewing, while adjustable interpupillary distance and dioptre adjustment on the left eyepiece allow a more tailored setup. The rotational stereo nosepiece, rack-and-pinion coarse focus and pillar stand arrangement make it easy to work with a range of sample sizes, including larger objects that extend beyond the base. Its lightweight, portable format suits study spaces, lab benches and field use alike.

Key features

• Stereo microscope with 10x and 30x magnification
• Ergonomic binocular viewing head inclined at 45
• Two WF 10x eyepieces with 1x and 3x Greenough objectives
• Natural light illumination
• Rack-and-pinion coarse focus
• Reversible black and white stage plate with stage clips
• Cordless design
• 2-year warranty
• Model number: 44138-CGL

Specifications

Optics

• Magnification range: 10-30x
• Eyepieces: (2) WF 10x
• Eyepiece diameter: 30. 5mm (1. 2")
• Objectives magnification: 1x / 3x
• Objective type: Greenough
• Head type: Ergonomic binocular viewing head
• Head inclination: 45
• Nosepiece: Stereo, rotational
• Illumination type: Natural light

Focus and stage

• Focus type: Rack and pinion, coarse focus only
• Focus travel per rotation: 40mm (1. 57")
• Stage: 60mm (2. 36") diameter glass reversible black / white surface plate
• Stage clips: Included

Build

• Power source: None
• Battery option: None
• Weight: 2. 00 kg

In the box

• (2) 10xWF eyepieces
• (2) synthetic rubber eye cups
• Reversible black and white stage plate
• Dust cover
• Small screwdriver for eyepiece security screws

Support & warranty

• 2-year warranty

Rackhams Reference : 6DPBGRH4UQ
