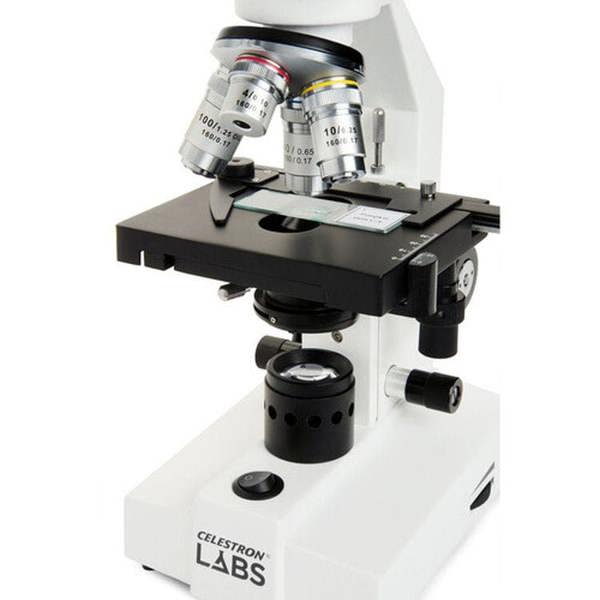

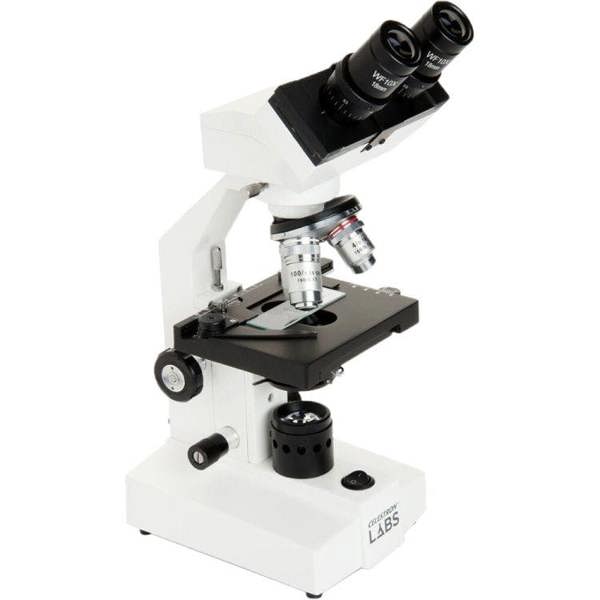

Celestron Labs CB1000CF Compound Microscope

Ready for classroom, laboratory and study use, the Celestron Labs CB1000CF is a compound binocular microscope with a 40x to 1000x magnification range, a 360 rotatable 45 inclined binocular head and adjustable lower LED illumination. Its optical set-up combines 10x eyepieces with four achromatic objective lenses at 4x, 10x, 40x and 100x immersion, giving clear step changes in magnification for detailed specimen viewing.

An all-metal body, coaxial coarse and fine focus controls and a fully mechanical stage give it the stable, precise handling expected of a lab-ready instrument. The Abbe condenser with iris adjustment allows the lower illumination to be refined for translucent specimens, while mains power supports extended sessions. Ten prepared slides and three colour filters are included, making it well suited to schools, labs and general specimen study from the outset.

Key features

• Compound binocular microscope with 40x to 1000x magnification
• Binocular head with 360 rotation, 45 incline and interpupillary distance adjustment
• Four DIN achromatic objective lenses: 4x, 10x, 40x and 100x immersion
• Adjustable lower LED illumination with Abbe condenser and iris adjustment
• Coaxial coarse and fine focus with rack and pinion mechanism
• All-metal construction with fully mechanical stage
• 2-year warranty
• Model number: 44135-CGL

Specifications

Optics

• Magnification range: 40x to 1000x
• Magnifications: 40x, 100x, 400x, 1000x
• Head type: binocular
• Eyepieces: (2) 10x with pointer
• Eyepiece diameter: 23. 2mm
• Nosepiece: quadruple, rotational
• Objective type: refractive
• Objective standard: DIN
• Objectives: (4) 4x, 10x, 40x, 100x immersion, all achromatic
• Objective thread: 4/5" x 1/36"
• Illumination type: LED
• Illumination position: lower
• Illumination adjustment: dial

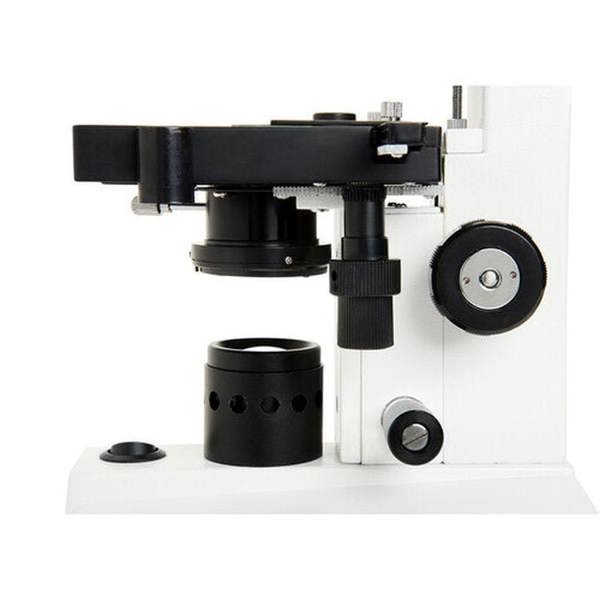

• Condenser type: Abbe with iris adjustment
• Condenser N. A. : 1. 25

Focus and stage

• Focus type: rack and pinion, coarse and fine focus with individual dials
• Focus travel per rotation: 0. 1mm
• Stage type: mechanical stage

Power and build

• Power source: AC adapter, 100-240V
• Weight: 2. 00kg

Sizing

Stage: 110mm x 120mm

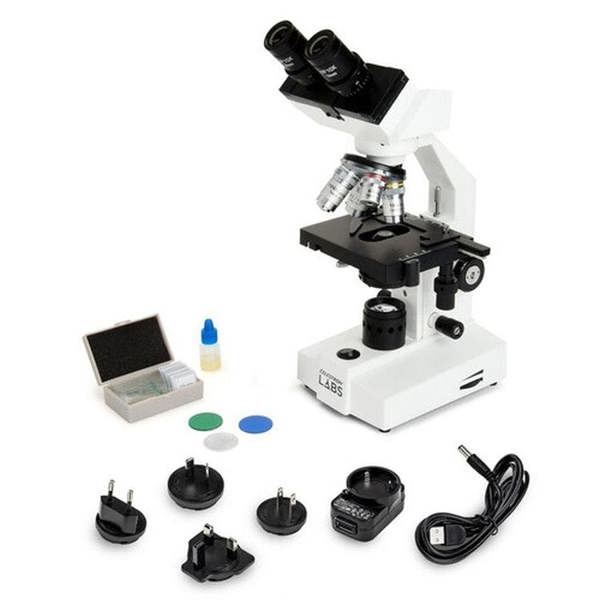

In the box

• Universal AC adapter, 100-240V
• Plugs A, C, G and I
• Power adapter cord
• 10 prepared slides
• 3 colour filters: blue, white opaque and green
• Immersion oil, Type B high-viscosity cedar wood oil

Support & warranty

2-year warranty.

Rackhams Reference : L3YN3WHGDK
