Fixaball 3.2mm Pop Blind Rivets Domed Aluminium/ Steel ISO 15983A

For sheet fastening across a range of materials, these Fixaball 3.2mm domed pop rivets combine an aluminium body with a steel/zinc mandrel. Made to ISO 15983A, they provide a neat domed finish and are removable by drilling through the centre where the mandrel was removed.

Available in multiple lengths, this blind rivet range suits applications where a 3.2mm diameter fixing is required and a clean finished appearance is preferred.

Available options

• 3.2 x 4 aluminium/steel dome head rivets
• 3.2 x 6 aluminium/steel dome head rivets
• 3.2 x 8 aluminium/steel dome head rivets
• 3.2 x 10 aluminium/steel dome head rivets
• 3.2 x 12 aluminium/steel dome head rivets
• 3.2 x 14 aluminium/steel dome head rivets
• 3.2 x 16 aluminium/steel dome head rivets
• 3.2 x 18 aluminium/steel dome head rivets
• 3.2 x 20 aluminium/steel dome head rivets
• 3.2 x 25 aluminium/steel dome head rivets

Key features

• Diameter: 3.2mm
• Domed blind rivets
• Aluminium head
• Steel/zinc mandrel
• Standard: ISO 15983A

Specifications

• Flange diameter: 6.4mm
• Flange thickness: 1mm
• Mandrel diameter: 1.8mm
• Drill size: 3.3mm

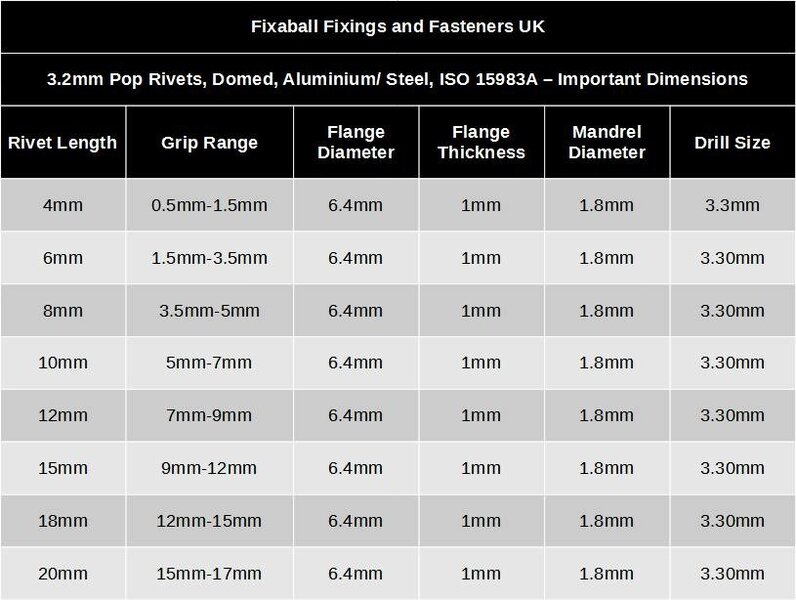

Sizing

• 4mm rivet length; grip range: 0.5mm-1.5mm
• 6mm rivet length; grip range: 1.5mm-3.5mm
• 8mm rivet length; grip range: 3.5mm-5mm
• 10mm rivet length; grip range: 5mm-7mm
• 12mm rivet length; grip range: 7mm-9mm
• 15mm rivet length; grip range: 9mm-12mm
• 18mm rivet length; grip range: 12mm-15mm
• 20mm rivet length; grip range: 15mm-17mm

Rackhams Reference : 8N1RXKS9TY
