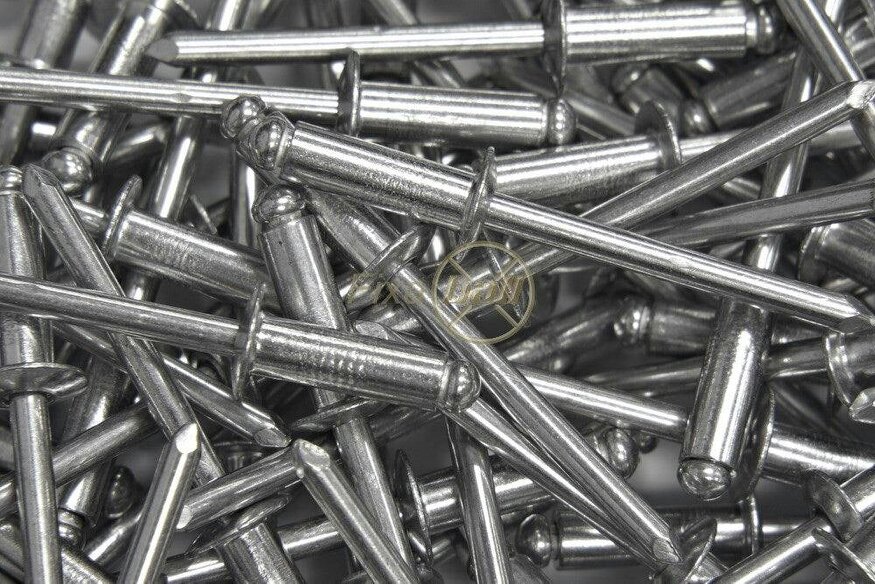

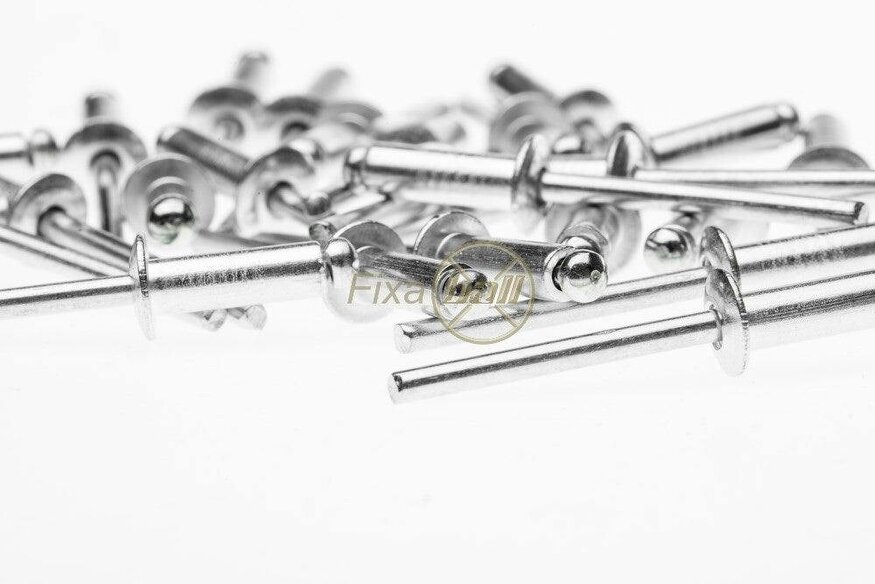

Fixaball 3mm Pop Blind Rivets Domed Aluminium/ Steel ISO 15983A

For light-duty fastening across a range of materials, these Fixaball 3mm domed pop rivets combine an aluminium body with a steel zinc mandrel. Made to ISO 15983A, they provide a neat domed finish and can be drilled out through the centre where the mandrel was removed.

Available in multiple lengths, this blind rivet range suits applications where a clean, consistent fixing is required without damaging the connected parts during removal.

Available options

• 3.0 x 4 aluminium / steel dome head rivets
• 3.0 x 6 aluminium / steel dome head rivets
• 3.0 x 8 aluminium / steel dome head rivets
• 3.0 x 10 aluminium / steel dome head rivets
• 3.0 x 12 aluminium / steel dome head rivets
• 3.0 x 14 aluminium / steel dome head rivets
• 3.0 x 16 aluminium / steel dome head rivets
• 3.0 x 18 aluminium / steel dome head rivets
• 3.0 x 20 aluminium / steel dome head rivets

Key features

• Diameter: 3mm
• Material: aluminium head
• Mandrel: steel / zinc
• Head style: domed
• Standard: ISO 15983A

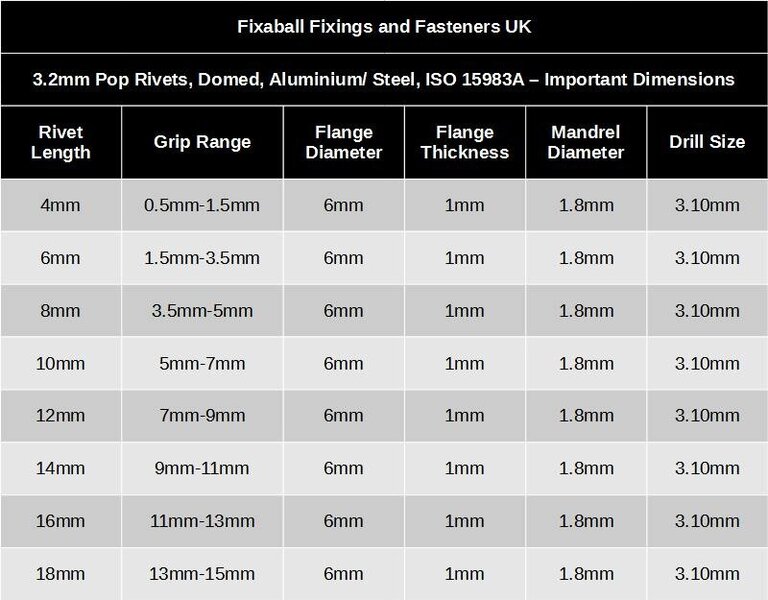

Specifications

• Flange diameter: 6mm
• Flange thickness: 1mm
• Mandrel diameter: 1.8mm
• Drill size: 3.10mm

Sizing

• 4mm rivet length
• 6mm rivet length
• 8mm rivet length
• 10mm rivet length
• 12mm rivet length
• 14mm rivet length
• 16mm rivet length
• 18mm rivet length
• 20mm rivet length

Safety information

Removal is by drilling through the centre where the mandrel was removed.

Rackhams Reference : 8UZ593AUL1
