Fixaball 4mm Pop Blind Rivets Domed Aluminium/ Steel ISO 15983A

For sheet material fixing, Fixaball 4mm domed pop rivets combine an aluminium body with a steel/zinc mandrel and are manufactured to ISO 15983A. This blind rivet range is offered in multiple lengths, with a domed head for a neat, smooth finish.

These 4.0mm rivets are suitable for applications where a removable temporary fastener is required, as they can be drilled out through the centre where the mandrel was removed. The range covers rivet lengths from 8mm to 30mm.

Available options

• 4.0 x 8 aluminium / steel dome head rivets
• 4.0 x 10 aluminium / steel dome head rivets
• 4.0 x 12 aluminium / steel dome head rivets
• 4.0 x 14 aluminium / steel dome head rivets
• 4.0 x 16 aluminium / steel dome head rivets
• 4.0 x 18 aluminium / steel dome head rivets
• 4.0 x 20 aluminium / steel dome head rivets
• 4.0 x 25 aluminium / steel dome head rivets
• 4.0 x 30 aluminium / steel dome head rivets

Key features

• Diameter: 4mm
• Material: aluminium head
• Mandrel: steel/zinc
• Head style: domed
• Standard: ISO 15983A

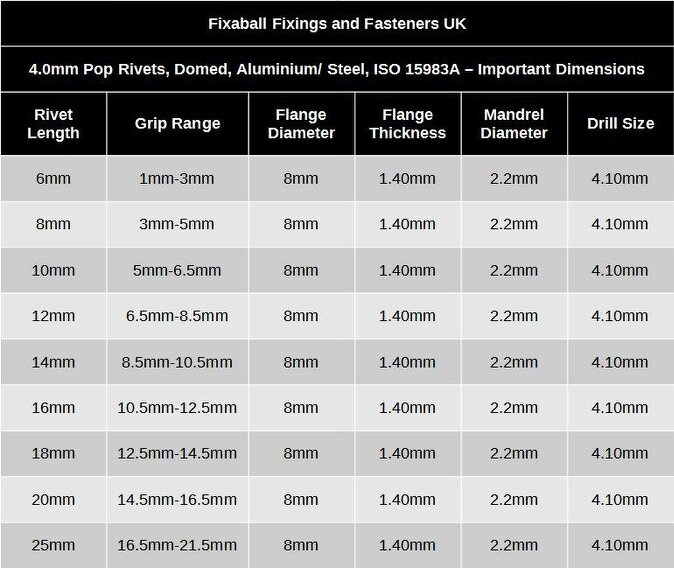

Specifications

• Flange diameter: 8mm
• Flange thickness: 1.40mm
• Mandrel diameter: 2.2mm
• Drill size: 4.10mm

Sizing

• 8mm rivet length, grip range 3mm-5mm
• 10mm rivet length, grip range 5mm-6.5mm
• 12mm rivet length, grip range 6.5mm-8.5mm
• 14mm rivet length, grip range 8.5mm-10.5mm
• 16mm rivet length, grip range 10.5mm-12.5mm
• 18mm rivet length, grip range 12.5mm-14.5mm
• 20mm rivet length, grip range 14.5mm-16.5mm
• 25mm rivet length, grip range 16.5mm-21.5mm

Rackhams Reference : 99YQKVLENP
