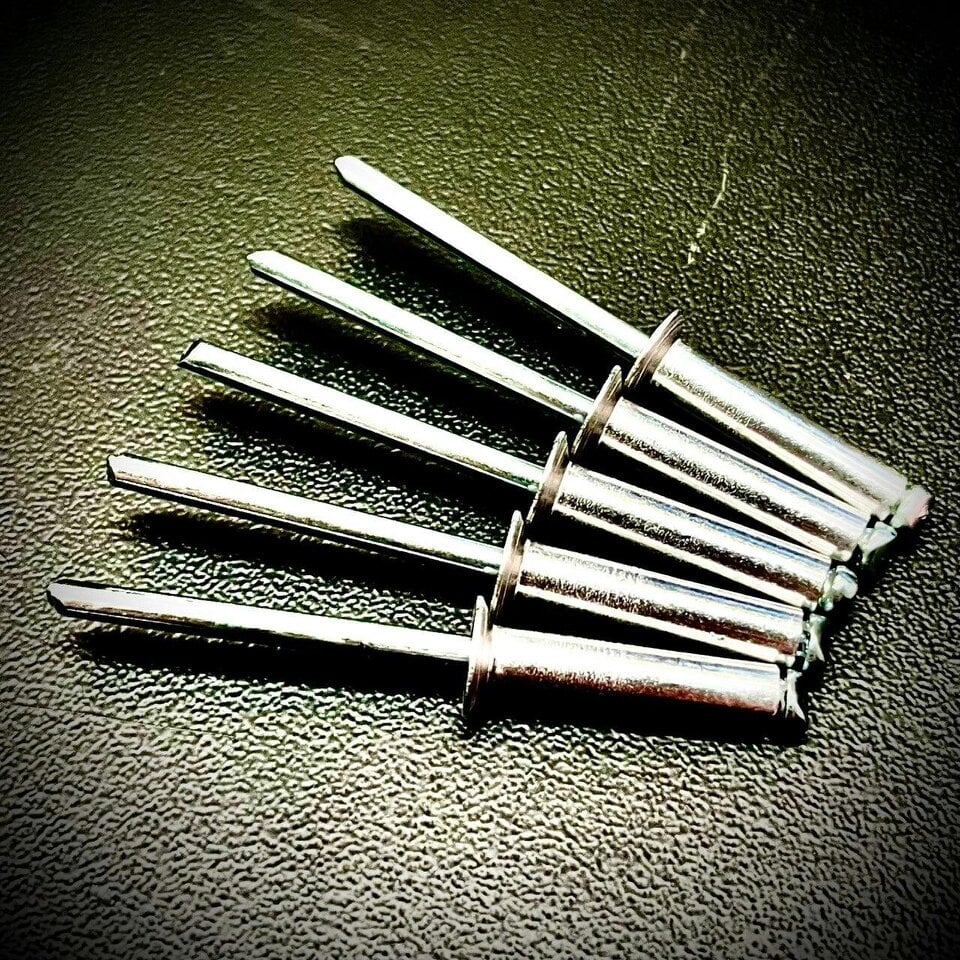

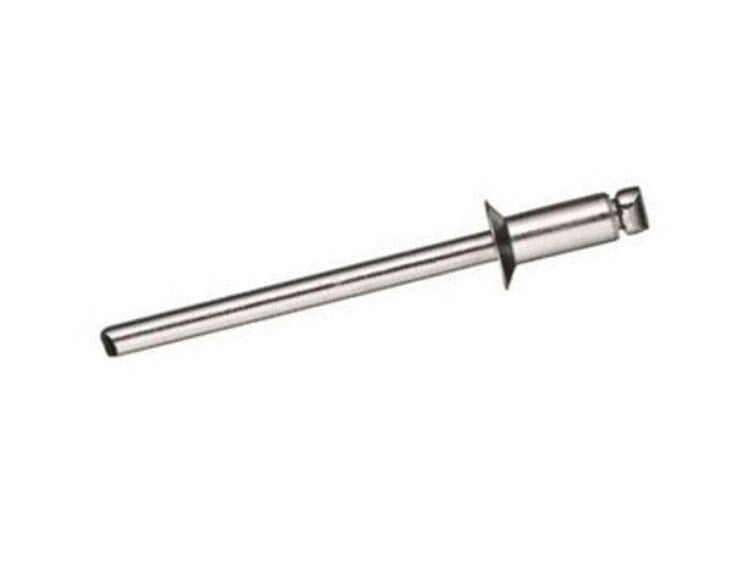

Fixaball 3mm Countersunk Pop Blind Rivets Aluminium/ Steel

For flush fixing where a smooth finished surface is required, these Fixaball countersunk blind rivets combine an aluminium body with a steel/zinc mandrel. The 120' countersunk head is formed to sit flush in a pre-drilled or pre-formed hole, making them suitable where a neater surface finish is needed.

Available in 3.0 x 6, 3.0 x 8, 3.0 x 10 and 3.0 x 12 sizes, this range covers several grip ranges for different fastening requirements.

Key features

• 3mm countersunk blind rivets
• Aluminium head
• Steel/zinc mandrel
• 120' countersunk head
• Available lengths: 6, 8, 10 and 12

Specifications

• Diameter: 3.2
• Grip range for 6 length: 0.5 – 3
• Grip range for 8 length: 3 – 5
• Grip range for 10 length: 5 – 6.5
• Grip range for 12 length: 6.5 – 8.5
• Grip range for 14 length: 8.5 – 10.5
• Grip range for 16 length: 10.5 – 12.5
• Grip range for 18 length: 12 - 14

Available options

• 3.0 x 6 Aluminium / Steel Csk Head Rivets
• 3.0 x 8 Aluminium / Steel Csk Head Rivets
• 3.0 x 10 Aluminium / Steel Csk Head Rivets
• 3.0 x 12 Aluminium / Steel Csk Head Rivets

Rackhams Reference : UERP1CLDYD
