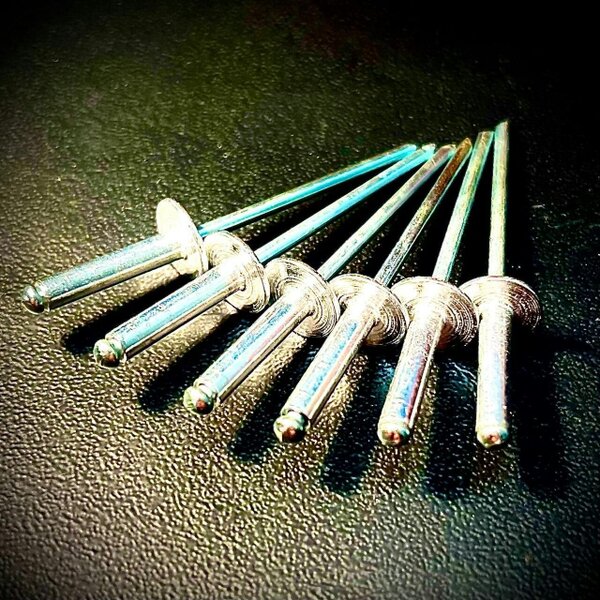

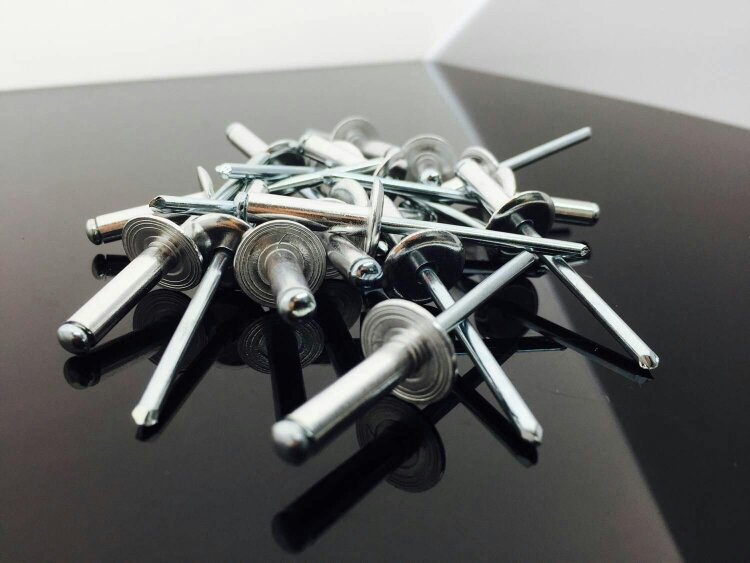

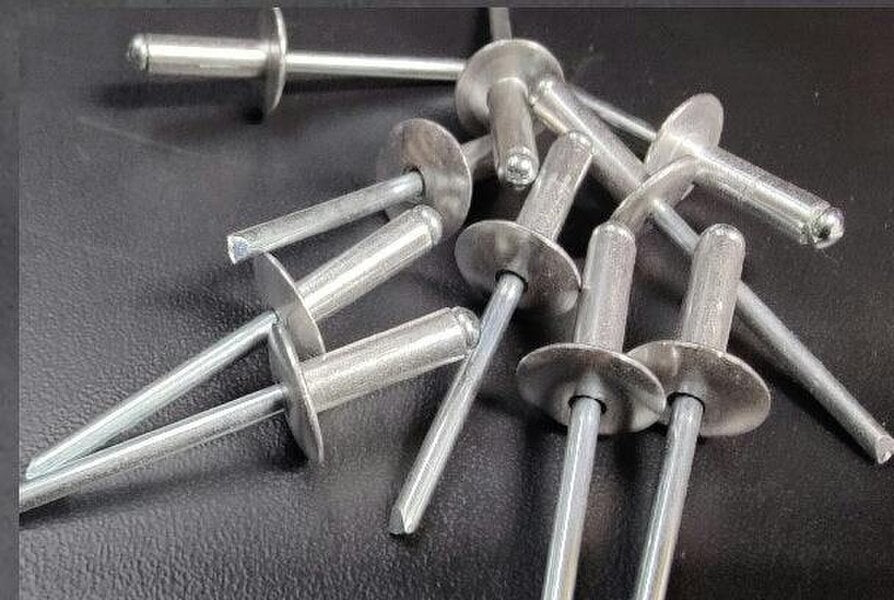

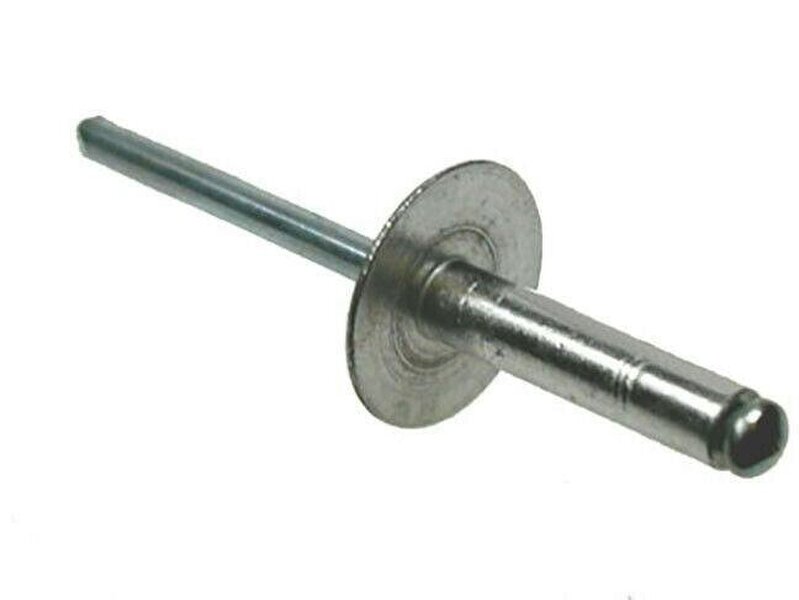

Fixaball 3.2mm Pop Blind Rivets Large Flange Aluminium

For fastening softer materials, these Fixaball 3.2mm large flange blind rivets combine an aluminium body with a steel zinc and Clr Tri3 mandrel. The large flange format is used with a washer to spread the load more evenly across the joined surfaces.

Suitable where access is available from one side only, each rivet is inserted into a pre-drilled hole and set by drawing the mandrel into the body until it snaps at the break point. This range is offered in multiple lengths to suit different grip requirements.

Available options

• 3.2 x 6 aluminium / steel large flange head rivets
• 3.2 x 10 aluminium / steel large flange head rivets
• 3.2 x 12 aluminium / steel large flange head rivets
• 3.2 x 14 aluminium / steel large flange head rivets
• 3.2 x 16 aluminium / steel large flange head rivets

Key features

• Diameter: 3.2mm
• Body material: Aluminium (AlMg2.5)
• Mandrel material: Steel Zinc & Clr Tri3
• Large flange format
• Used with a washer for joining softer materials
• Installation from one side only

Specifications

• 6mm rivet length: grip range 0.5mm-3.5mm
• 8mm rivet length: grip range 3.5mm-5.5mm
• 10mm rivet length: grip range 5.5mm-7mm
• 12mm rivet length: grip range 7mm-9mm
• 16mm rivet length: grip range 9mm-11mm
• Flange diameter: 9.5mm
• Flange thickness: 1.1mm
• Mandrel diameter: 1.8mm

Care and maintenance

To remove a set rivet, drill through the point where the mandrel was removed.
