Fixaball Rivet Nut A2 Stainless Steel Reduced Head Round Knurled Body

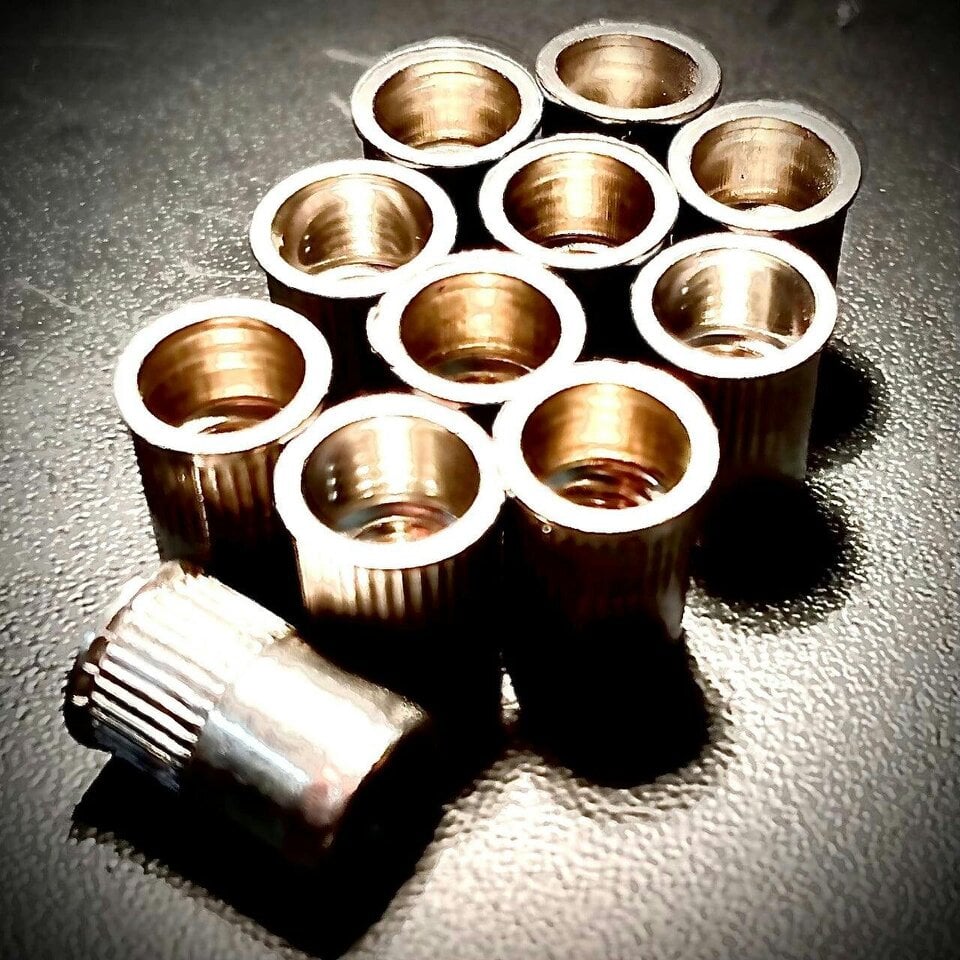

For thin panels and box or tube sections, the Fixaball reduced head rivet nut provides a captivated metric coarse thread where access is available from one side only. Made from A2 304 stainless steel, it has a round knurled body with serrations under the head to help improve grip and reduce rotation during fabrication.

This fitting is installed using a threaded rivet insert tool, with the mandrel threaded into the rivet before deformation on the reverse side of the sheet material clamps it in place. It is also suitable for on-site installation and repair work where a previously installed fastener has failed.

Available options

• M3 x 0.5mm
• M4 x 0.7mm
• M5 x 0.8mm
• M8 x 1.25mm
• M10 x 1.5mm
• M12 x 1.75mm

Key features

• A2 304 stainless steel
• Reduced head
• Round knurled body
• Serrated under head
• Standard metric coarse thread
• Installed from one side of the panel

Specifications

• Thread type: Standard metric coarse
• Installation tool: Threaded rivet insert tool
• Body style: Round knurled body
• Head style: Reduced head

Sizing

• M3 x 0.5mm: 4.9mm body diameter, 11.5mm total length, 5mm drill hole size, 1.5mm-2.5mm material grip range
• M4 x 0.7mm: 5.9mm body diameter, 10.5mm total length, 6mm drill hole size, 0.5mm-2.0mm material grip range
• M4 x 0.7mm: 5.9mm body diameter, 13mm total length, 6mm drill hole size, 2.0mm-4.0mm material grip range
• M5 x 0.8mm: 6.9mm body diameter, 11.5mm total length, 7mm drill hole size, 0.5mm-2.0mm material grip range
• M5 x 0.8mm: 6.9mm body diameter, 13.0mm total length, 7mm drill hole size, 2.0mm-4.0mm material grip range
• M8 x 1.25mm: 10.9mm body diameter, 19.5mm total length, 10.5mm-11mm drill hole size, 3.0mm-5.0mm material grip range
• M10 x 1.5mm: 12.9mm body diameter, 17.7mm total length, 12.5mm-13mm drill hole size, 1.5mm-3.5mm material grip range
• M10 x 1.5mm: 12.9mm body diameter, 23.0mm total length, 12.5mm-13mm drill hole size, 3.5mm-6.0mm material grip range
• M12 x 1.75mm: 15.9mm body diameter, 24.2mm total length, 16mm drill hole size, 1.0mm-4.0mm material grip range
• M12 x 1.75mm: 15.9mm body diameter, 27.0mm total length, 16mm drill hole size, 4.0mm-6.5mm material grip range
