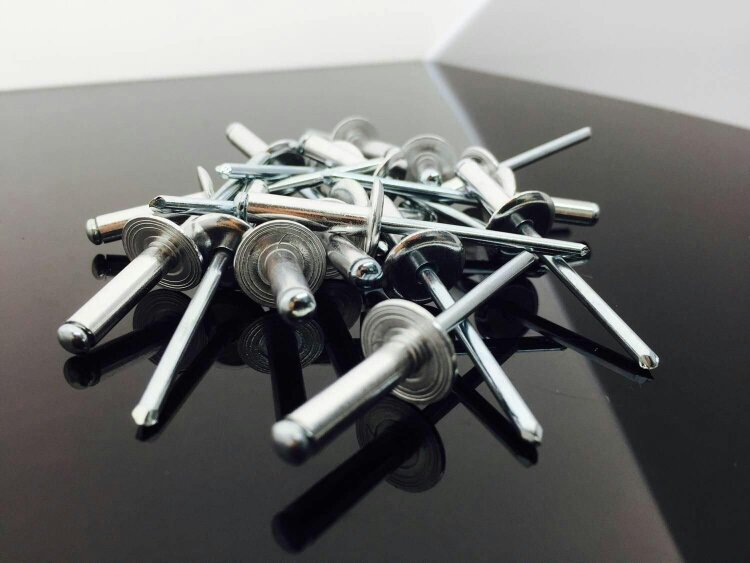

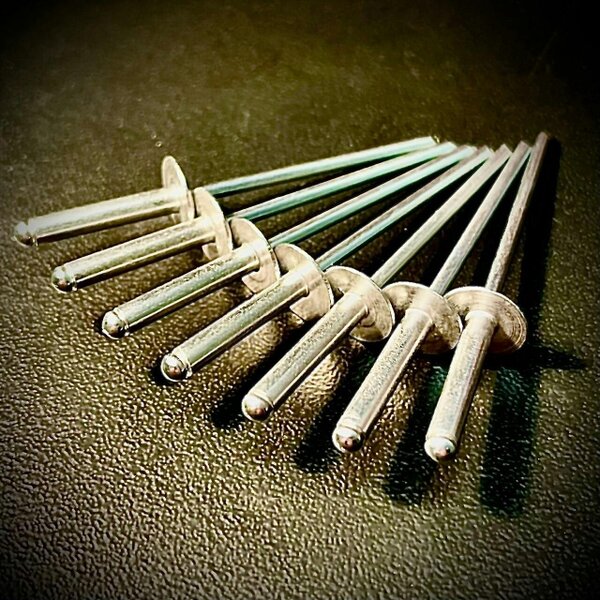

Fixaball 4.8mm Pop Blind Rivets Large Flange Aluminium

For fastening softer materials, these Fixaball 4.8mm large flange blind rivets combine an aluminium body with a zinc plated steel mandrel. The large flange format is normally used with a washer, helping to spread the load more evenly across the joined surfaces.

Suitable for use where access is available from one side only, this blind rivet design is used across aerospace, automotive, rail, HVAC, white goods, electronics, DIY and general engineering applications. Multiple length options are available within the 4.8mm diameter range.

Available options

• 4.8 x 10
• 4.8 x 12
• 4.8 x 14
• 4.8 x 16
• 4.8 x 18
• 4.8 x 20
• 4.8 x 22
• 4.8 x 24
• 4.8 x 26
• 4.8 x 28
• 4.8 x 35
• 4.8 x 40

Key features

• Diameter: 4.8mm
• Large flange blind rivets
• Body material: Aluminium (AlMg2.5)
• Mandrel material: Steel Zinc & Clr Tri3
• Normally used with a washer for joining softer materials
• Suitable where the joint is accessible from one side only

Care and maintenance

To remove, drill through where the mandrel was removed.

Rackhams Reference : T17IXABU5J
