Fixaball Rivet Nut Steel BZP Reduced Head Round Knurled Body

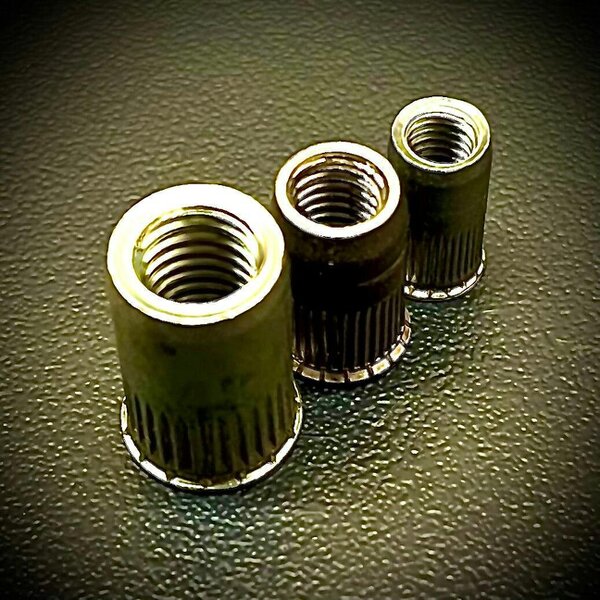

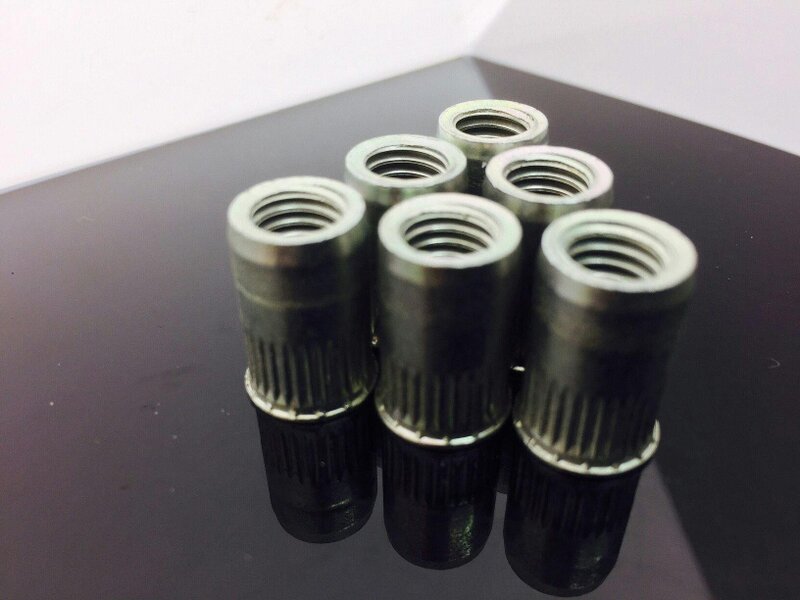

For thin panels and applications with access from one side only, Fixaball reduced head rivet nuts provide a captivated metric coarse thread in a steel zinc plated finish. This round body version has a knurled body with serrated under head detail to improve grip and help prevent rotation during fabrication.

Suitable for installation with a threaded rivet insert tool, the mandrel threads into the rivet and pulls to deform the back of the body against the sheet material. These rivet nuts are also used for on-site installation and repair work where a previously installed fastener has failed.

Available options

• M3 x 11.5
• M4 x 13.0
• M5 x 13.0
• M6 x 16.0
• M8 x 18.5
• M10 x 22.0
• M12 x 27.5

Key features

• Material: mild carbon steel Cr3
• Finish: zinc plated
• Reduced head
• Round knurled body
• Serrated under head
• Standard metric coarse thread

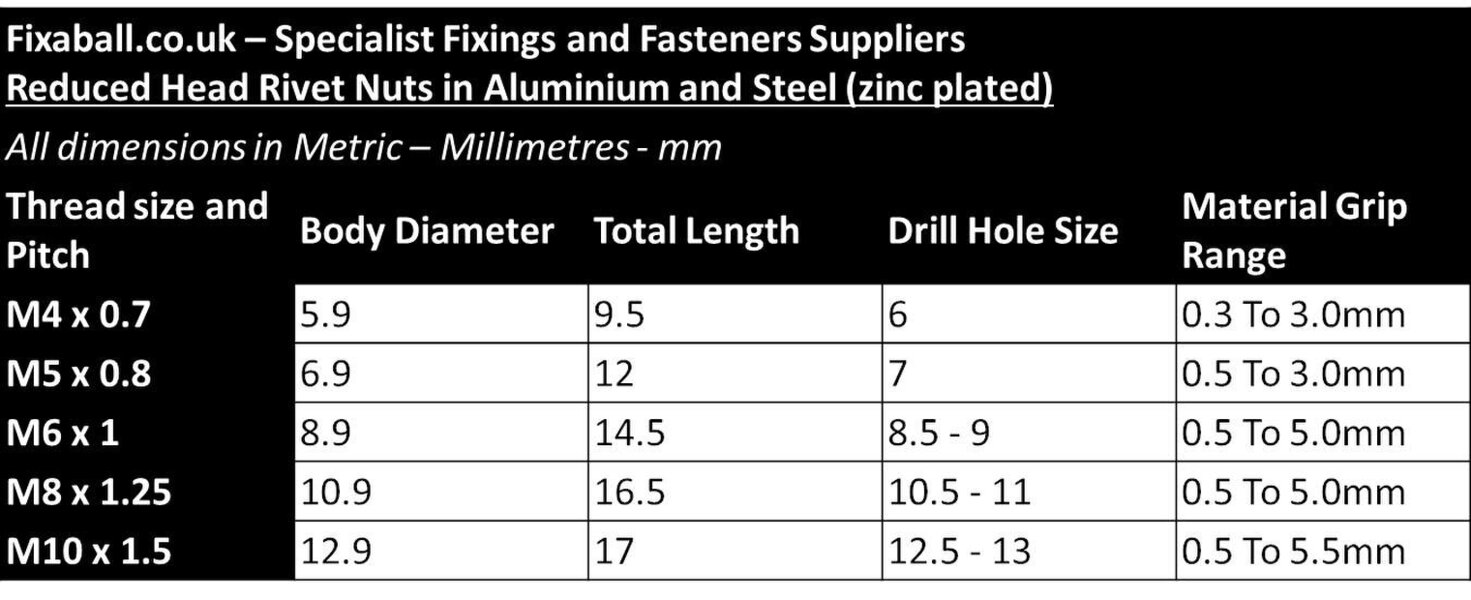

Specifications

M3 x 0.5mm

• Body diameter: 4.9
• Total length: 11.5
• Drill hole size: 5mm
• Material grip range: 1.5mm-3.0mm

M4 x 0.7

• Body diameter: 5.9
• Total length: 9.5
• Drill hole size: 6mm
• Material grip range: 0.3 To 3.0mm

M5 x 0.8

• Body diameter: 6.9
• Total length: 12
• Drill hole size: 7mm
• Material grip range: 0.5 To 3.0mm

M6 x 1

• Body diameter: 8.9
• Total length: 14.5
• Drill hole size: 8.5mm-9mm
• Material grip range: 0.5 To 5.0mm

M8 x 1.25

• Body diameter: 10.9
• Total length: 16.5
• Drill hole size: 10.5mm-11mm
• Material grip range: 0.5 To 5.0mm

M10 x 1.5

• Body diameter: 12.9
• Total length: 17
• Drill hole size: 12.5mm-13mm
• Material grip range: 0.5 To 5.5mm

M12 x 1.75mm

• Body diameter: 15.9mm
• Total length: 27.5mm
• Drill hole size: 16mm
• Material grip range: 4.0mm-6.5mm

Rackhams Reference : EMARBZTLMB
