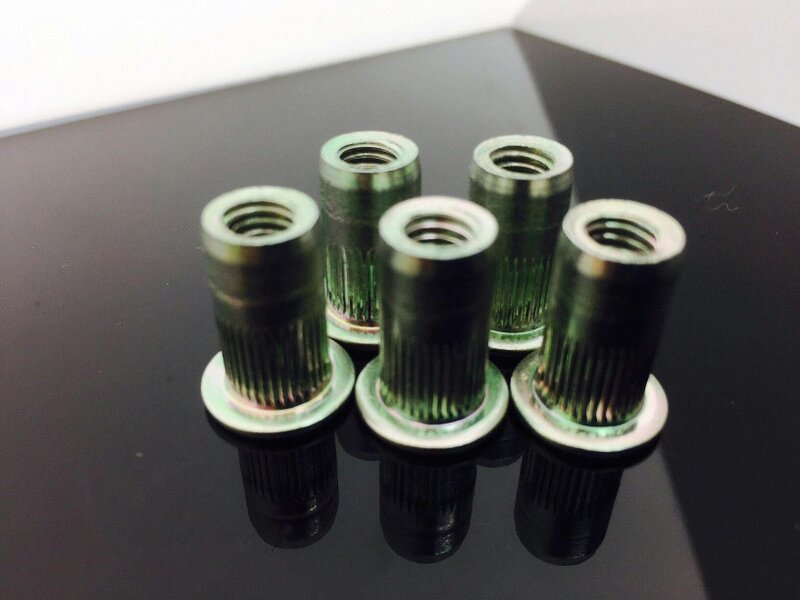

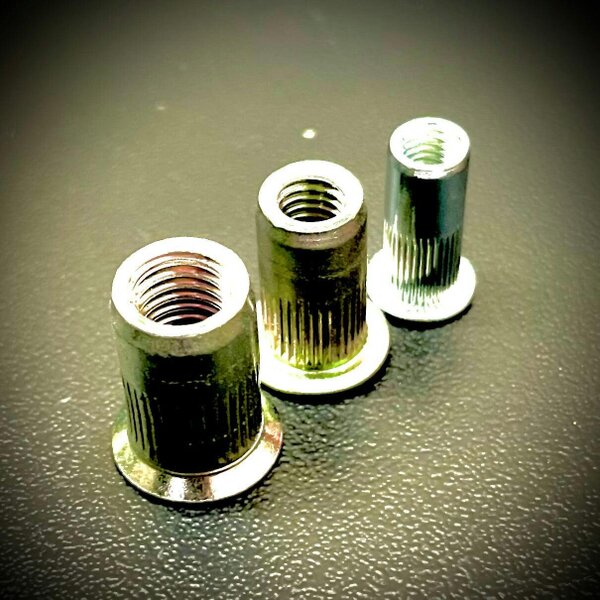

Fixaball Rivet Nut Steel BZP Flat Head Round Knurled Body

For sheet material fixings, this Fixaball rivet nut features a flanged head, round knurled body and standard metric coarse thread. Made from mild carbon steel Cr3 with a zinc plated finish, it is suited to installations where a larger bearing area is required across the sheet and hole.

The flanged head helps spread load, while the knurled body is formed with serrations to improve grip and reduce rotation during fabrication. Installation is carried out using a threaded rivet insert tool, which deforms the reverse side to clamp the sheet material between the head and the formed section.

Key features

• Flanged head rivet nut
• Mild carbon steel Cr3 with zinc plated finish
• Round knurled body with serrated under head
• Standard metric coarse thread
• Available thread sizes include M4, M5, M6, M8, M10 and M12

Specifications

• Flanged rivet nuts provide a larger bearing area to spread forces and loads on the sheet material and hole
• Can also be used as a separator or spacer
• Installed using a threaded rivet insert tool

Available options

• M3X10.0 (0.5-1.5 grip range)
• M3X11.5 (2.0-3.5 grip range)
• M4X10.5 (0.5-2.0 grip range)
• M4X12.0 (2.0-3.5 grip range)
• M5X13.0 (0.5-2.5 grip range)
• M5X16.5 (2.5-5.0 grip range)
• M5X19.0 (5.0-8.0 grip range)
• M6X15.5 (0.5-3.0 grip range)
• M6X19.5 (3.0-5.5 grip range)
• M6X21.0 (5.5-8.0 grip range)
• M8X18.5 (1.0-3.5 grip range)
• M8X21.0 (3.5-6.0 grip range)
• M8X23.0 (5.0-8.0 grip range)
• M10X21.5 (1.0-4.0 grip range)
• M10X24.0 (4.0-6.5 grip range)
• M10X27.0 (6.5-9.0 grip range)
• M12X25.0 (1.0-4.0 grip range)
• M12X28.0 (3.5-6.0 grip range)

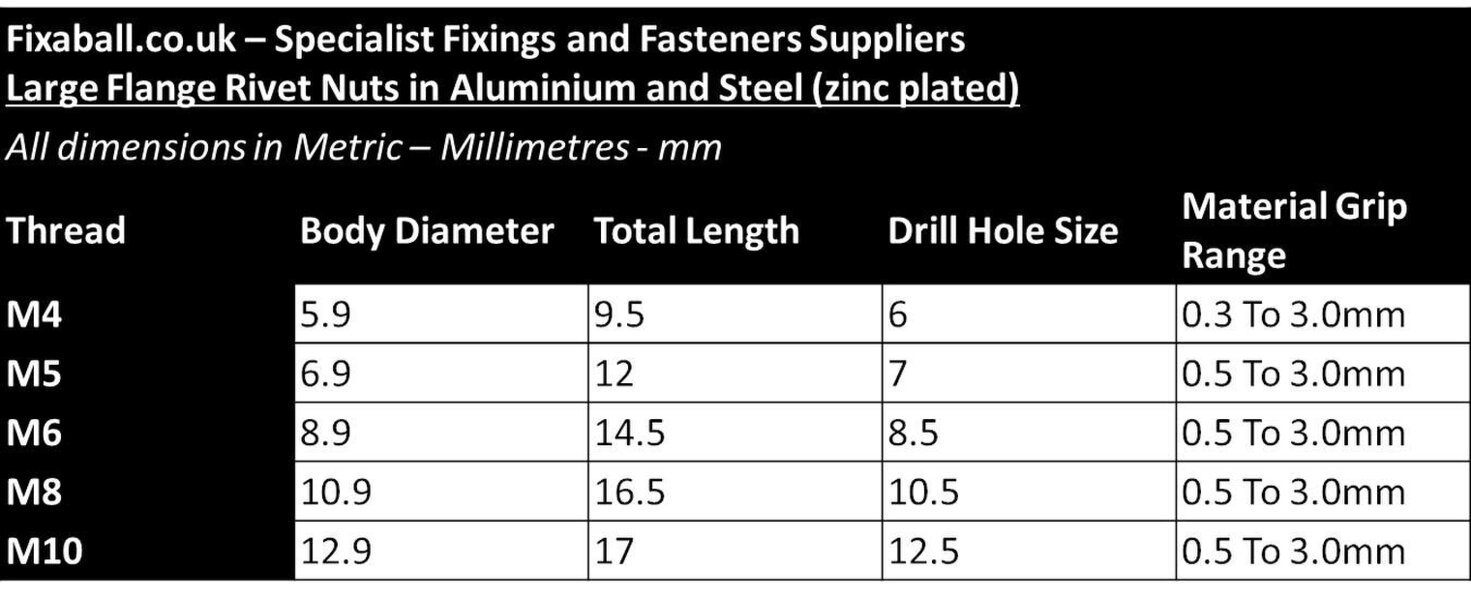

Sizing

• M4 x 0.7: body diameter 5.9, total length 9.5, drill hole size 6, material grip range 0.3 To 3.0mm
• M5 x 0.8: body diameter 6.9, total length 12, drill hole size 7, material grip range 0.5 To 3.0mm
• M6 x 1: body diameter 8.9, total length 14.5, drill hole size 8.5 - 9, material grip range 0.5 To 5.0mm
• M8 x 1.25: body diameter 10.9, total length 16.5, drill hole size 10.5 - 11, material grip range 0.5 To 5.0mm
• M10 x 1.5: body diameter 12.9, total length 17, drill hole size 12.5 - 13, material grip range 0.5 To 5.5mm

Rackhams Reference : 5724RC39IQ
