Fixaball 4.8mm Pop Blind Rivets Domed Aluminium/ Steel ISO 15983A

For general fastening across a range of materials, these Fixaball 4.8mm domed pop rivets combine an aluminium body with a steel/zinc mandrel. Manufactured to ISO 15983A, they provide a neat domed finish and are available in multiple lengths to suit different grip ranges.

These blind rivets are removable by drilling through the centre where the mandrel was removed. Length and pack quantity vary by selection.

Available options

• 4.8 x 6 aluminium/steel dome head rivets
• 4.8 x 8 aluminium/steel dome head rivets
• 4.8 x 10 aluminium/steel dome head rivets
• 4.8 x 12 aluminium/steel dome head rivets
• 4.8 x 14 aluminium/steel dome head rivets
• 4.8 x 16 aluminium/steel dome head rivets
• 4.8 x 18 aluminium/steel dome head rivets
• 4.8 x 20 aluminium/steel dome head rivets
• 4.8 x 22 aluminium/steel dome head rivets
• 4.8 x 25 aluminium/steel dome head rivets
• 4.8 x 28 aluminium/steel dome head rivets
• 4.8 x 35 aluminium/steel dome head rivets
• 4.8 x 40 aluminium/steel dome head rivets

Key features

• Diameter: 4.8mm
• Material: aluminium head
• Mandrel: steel/zinc
• Head style: domed
• Standard: ISO 15983A
• Pack quantity varies by selection

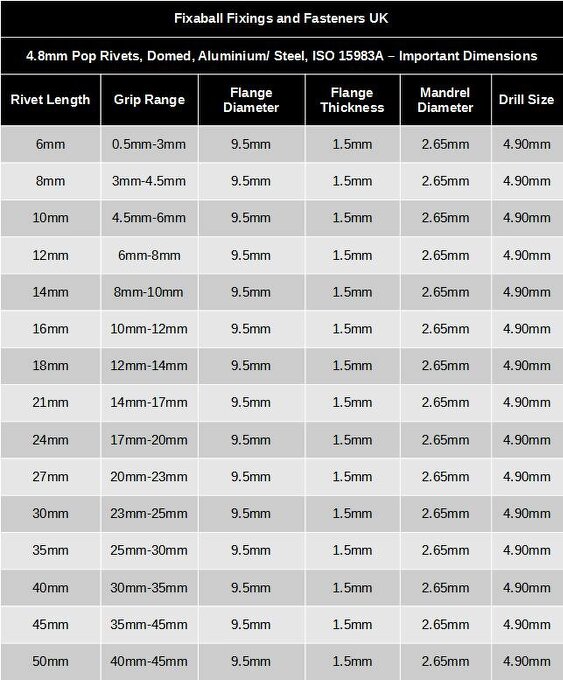

Specifications

General

• Flange diameter: 9.5mm
• Flange thickness: 1.5mm
• Mandrel diameter: 2.65mm
• Drill size: 4.90mm

Grip range by rivet length

• 6mm rivet length: 0.5mm-3mm
• 8mm rivet length: 3mm-4.5mm
• 10mm rivet length: 4.5mm-6mm
• 12mm rivet length: 6mm-8mm
• 14mm rivet length: 8mm-10mm
• 16mm rivet length: 10mm-12mm
• 18mm rivet length: 12mm-14mm
• 21mm rivet length: 14mm-17mm
• 24mm rivet length: 17mm-20mm
• 27mm rivet length: 20mm-23mm
• 30mm rivet length: 23mm-25mm
• 35mm rivet length: 25mm-30mm
• 40mm rivet length: 30mm-35mm
• 45mm rivet length: 35mm-45mm
• 50mm rivet length: 40mm-45mm

Safety information

Remove by drilling through the centre where the mandrel was removed.
