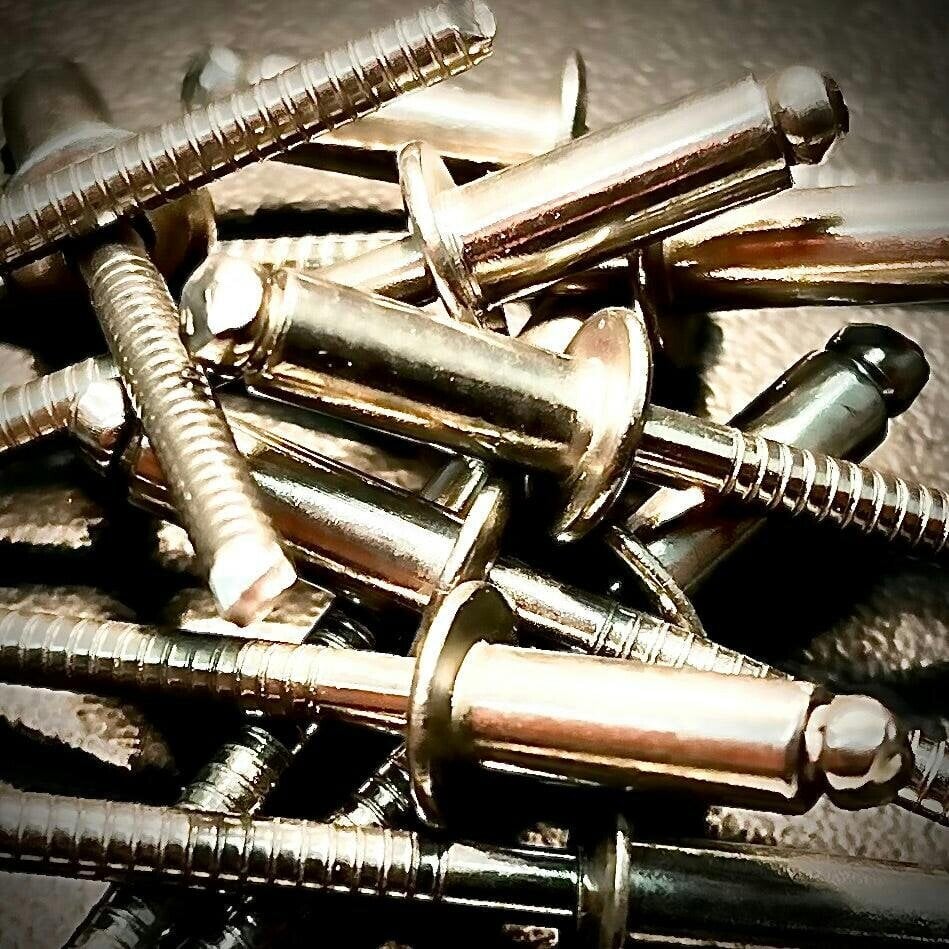

Fixaball 6.4mm Pop Rivets Domed A2/ 304 Stainless Steel ISO 15983A

For one-sided fastening, these Fixaball blind rivets combine a 6.4mm diameter with an A2/304 stainless steel body and a domed head. Manufactured to ISO 15983A, they are suited to applications where the joint can only be reached from one side.

Each rivet is installed into a pre-drilled hole and set by drawing the mandrel into the body to expand the blind end before the mandrel snaps at the break point. Multiple lengths are available to suit different grip ranges.

Key features

• Diameter: 6.4mm
• Material: A2/304 stainless steel
• Head type: domed
• Type: blind/pop rivets
• Standards compliance: ISO 15983A

Available options

• 6.4 x 10
• 6.4 x 12
• 6.4 x 15
• 6.4 x 18
• 6.4 x 20
• 6.4 x 25

Specifications

• Flange diameter: 13mm
• Flange thickness: 2.2mm
• Mandrel diameter: 3.6mm
• Drill size: 6.5mm

Sizing

• 12mm rivet length, 3mm-6mm grip range
• 15mm rivet length, 6mm-9mm grip range
• 16mm rivet length, 6mm-9mm grip range
• 18mm rivet length, 9mm-12mm grip range
• 20mm rivet length, 12mm-16mm grip range
• 22mm rivet length, 12mm-16mm grip range
• 26mm rivet length, 16mm-20mm grip range
• 30mm rivet length, 20mm-24mm grip range
• 35mm rivet length, 24mm-29mm grip range
• 50mm rivet length, 29mm-42mm grip range

Rackhams Reference : W8YQMSUY81
