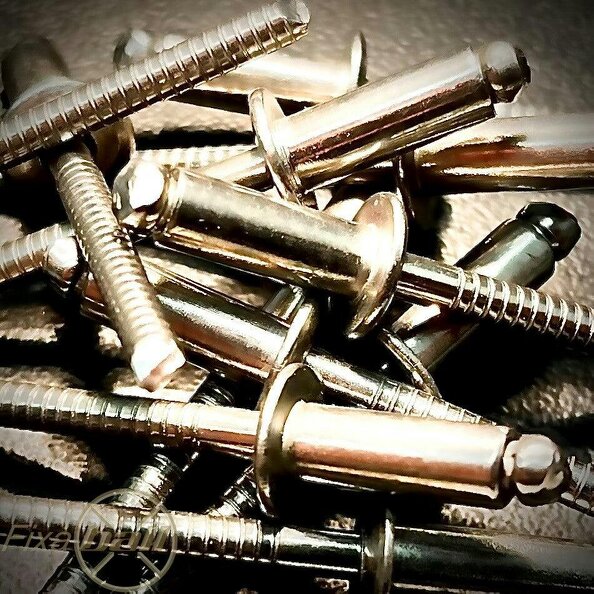

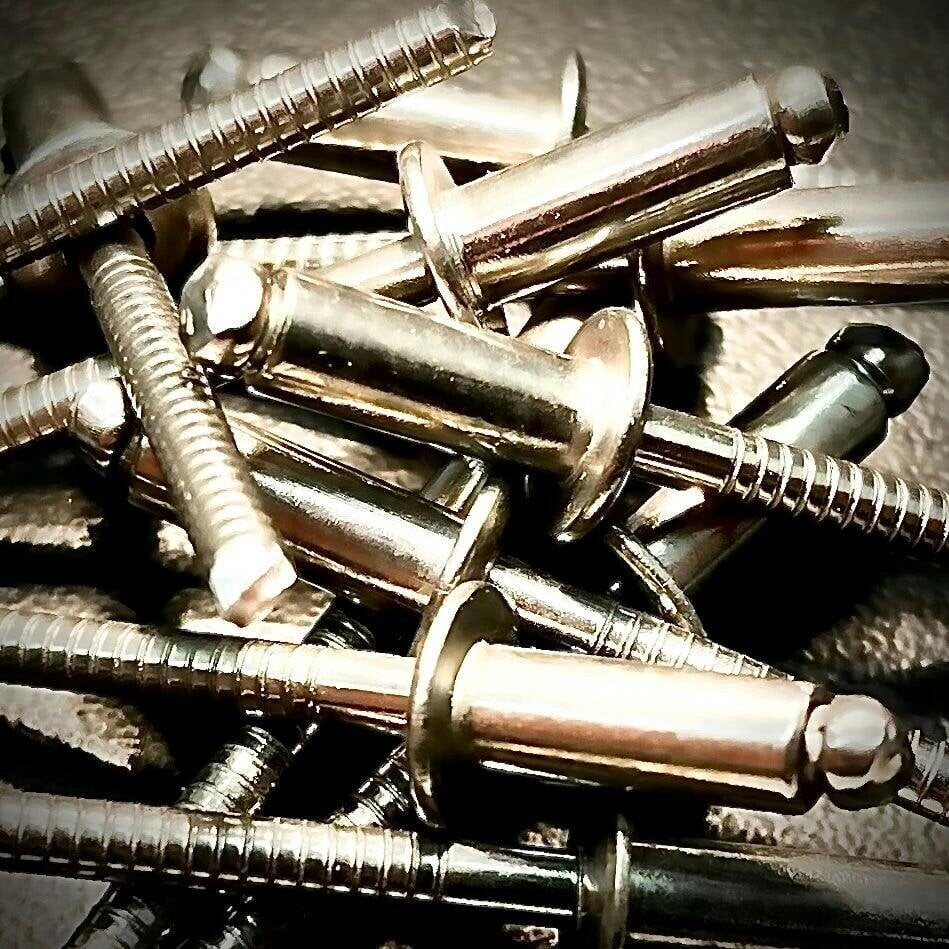

Fixaball 6.0mm Pop Rivets Domed A2/ 304 Stainless Steel ISO 15983A

For corrosion-resistant fastening where access is available from one side only, these Fixaball blind rivets combine a 6.0mm diameter with an A2/304 stainless steel body and domed head. They are supplied with a mandrel through the centre and install into a pre-drilled hole using a suitable rivet tool.

Once set, the rivet body expands on the reverse side before the mandrel snaps at the break point. This range is offered in multiple lengths to suit different grip ranges and joint thicknesses.

Available options

• 6.0 x 10
• 6.0 x 12
• 6.0 x 15
• 6.0 x 18
• 6.0 x 20
• 6.0 x 22
• 6.0 x 25

Key features

• Diameter: 6.0mm
• Material: A2/304 stainless steel
• Head type: Domed
• Type: Blind rivet
• Standard: ISO 15983A

Specifications

• Flange diameter: 12mm
• Flange thickness: 1.8mm
• Mandrel diameter: 3.2mm
• Drill size: 6.10mm

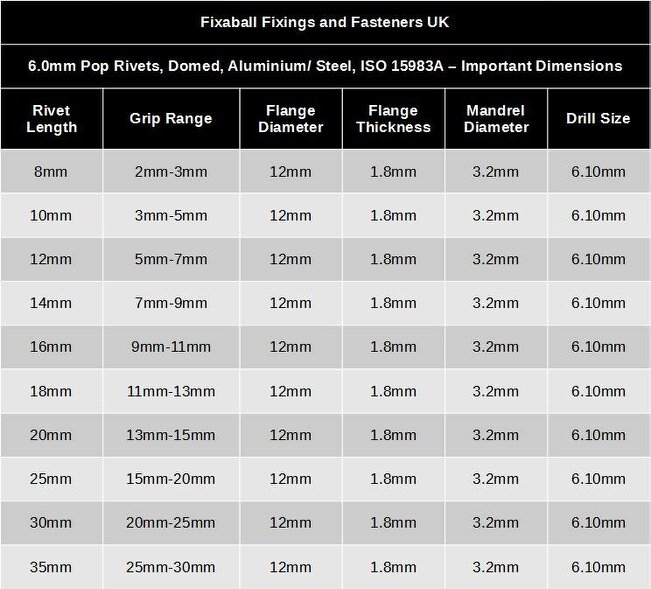

Sizing

• 8mm rivet length, grip range 2mm-3mm
• 10mm rivet length, grip range 3mm-5mm
• 12mm rivet length, grip range 5mm-7mm
• 14mm rivet length, grip range 7mm-9mm
• 16mm rivet length, grip range 9mm-11mm
• 18mm rivet length, grip range 11mm-13mm
• 20mm rivet length, grip range 13mm-15mm
• 25mm rivet length, grip range 15mm-20mm
• 30mm rivet length, grip range 20mm-25mm
• 35mm rivet length, grip range 25mm-30mm

Rackhams Reference : QHURN6AEL6
