Fixaball M10 Coach Cup Carriage Bolts Full Nuts BZP Zinc 4.8 Steel

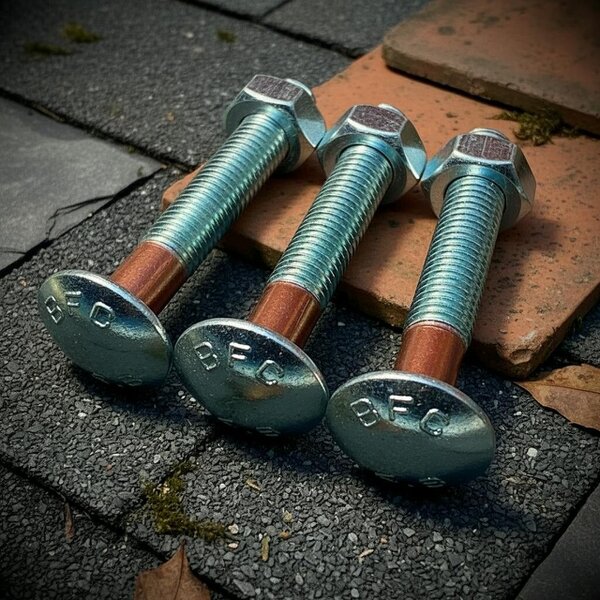

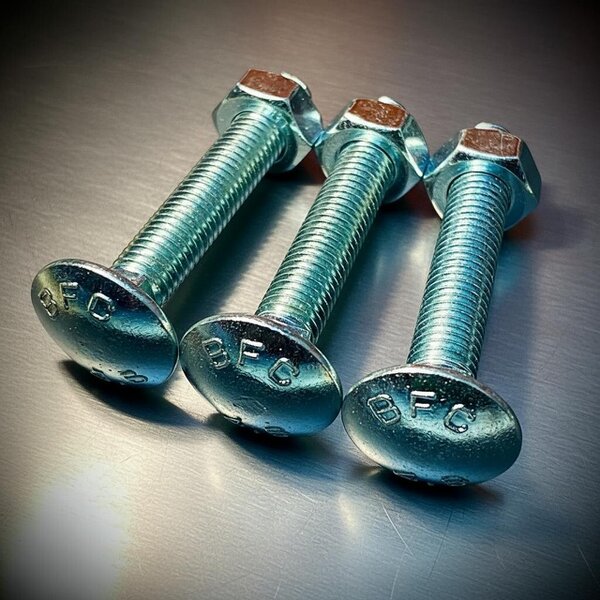

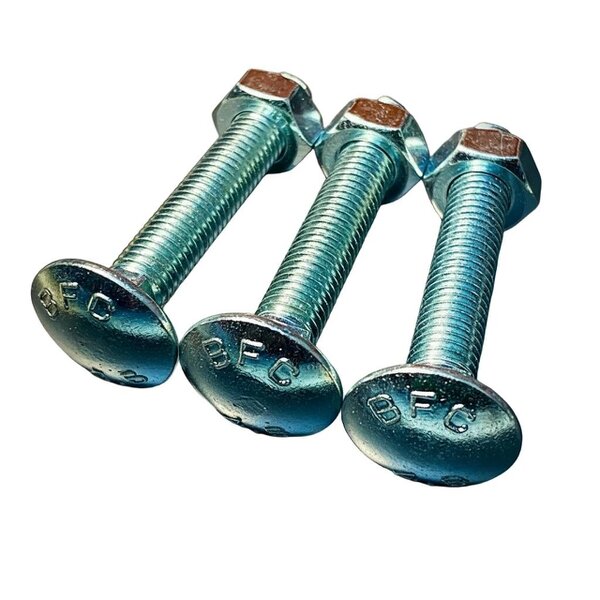

For timber fixing applications, these Fixaball M10 carriage bolts are supplied with full hex nuts and finished in zinc clear passivated/Cr3 plated steel. Grade 4.8 fasteners to DIN 603 with matching DIN 934 hexagon nuts, they are suited to joining timbers in garden and roofing work.

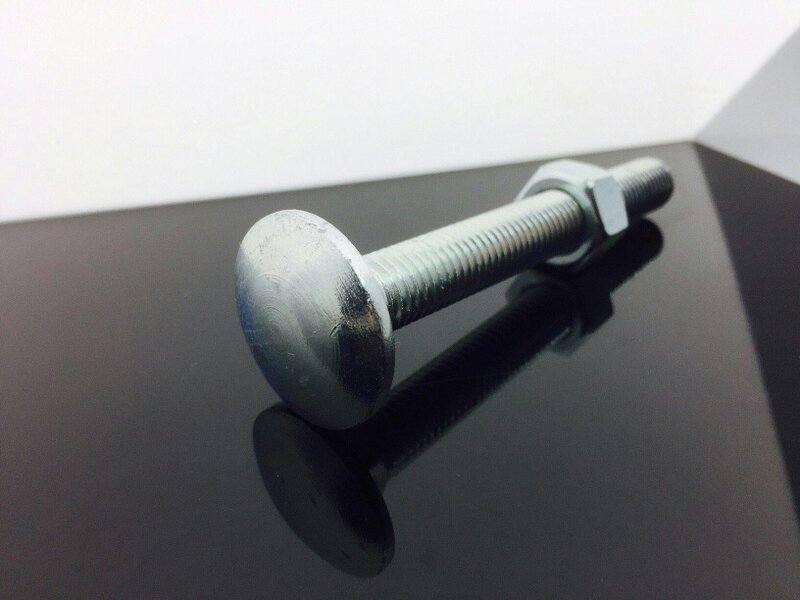

The domed head has a broad profile to spread weight across the timbers being joined, while the square section beneath the head grips into a pre-drilled hole to assist tightening. Lengths are measured from the underside of the head to the end.

Key features

• M10 shank diameter
• Grade 4.8 steel
• Zinc clear passivated/Cr3 plated finish
• Carriage bolt to DIN 603
• Full hexagon nut to DIN 934

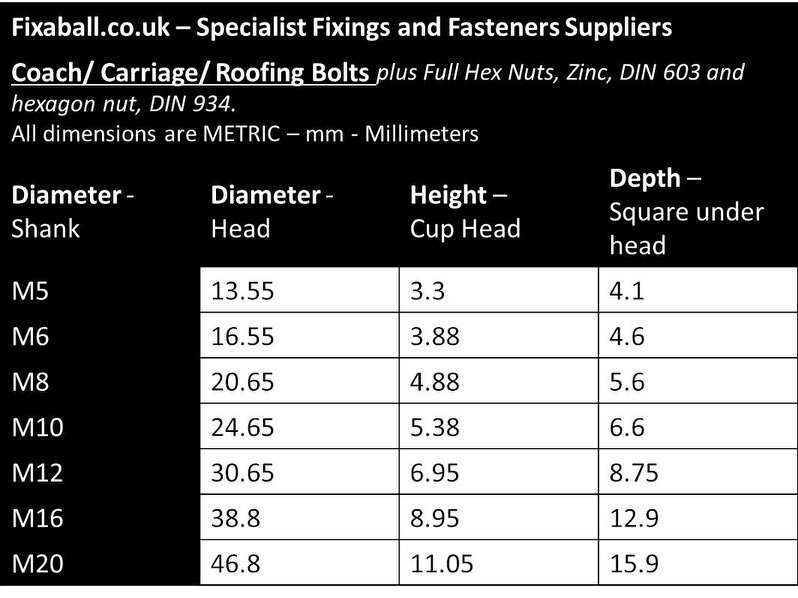

Specifications

• Head diameter (+/- 0.05): 24.65
• Cup head height: 5.38
• Square under head depth: 6.6

Available options

• M10 x 25
• M10 x 30
• M10 x 35
• M10 x 40
• M10 x 45
• M10 x 50
• M10 x 55
• M10 x 60
• M10 x 65
• M10 x 70
• M10 x 75
• M10 x 80
• M10 x 90
• M10 x 100
• M10 x 110
• M10 x 120
• M10 x 130
• M10 x 140
• M10 x 150
• M10 x 160
• M10 x 180
• M10 x 200
• M10 x 220
• M10 x 230
• M10 x 240
• M10 x 260
• M10 x 280
• M10 x 300

Sizing

All dimensions are metric mm.

Rackhams Reference : 4ZPVGQHUHT
