Celestron Labs CB2000C Compound Binocular Microscope

Built for detailed specimen study, the Celestron Labs CB2000C is a compound microscope with a 40x to 2000x magnification range, a binocular viewing head and a supplied trinocular adapter tube for camera attachment or secondary eyepiece viewing. Its optical set-up combines 10x and 20x eyepieces with four achromatic DIN objectives in 4x, 10x, 40x and 100x immersion, giving a broad range of working magnifications for more demanding classroom, laboratory and hobby use.

Control is equally considered. The fully mechanical stage uses dual-axis adjustment knobs for accurate slide positioning, while coaxial coarse and fine focus dials allow precise refinement. Lower halogen illumination is built in and adjustable, working with an NA 1. 25 Abbe condenser and iris diaphragm to regulate the light beam. An all-metal body adds a robust, professional feel, and the included prepared slides, colour filters and immersion oil make it ready for immediate use.

Key features

• 40x to 2000x magnification range
• Binocular compound microscope with supplied trinocular adapter tube
• 10x and 20x eyepieces, including a 10x eyepiece with pointer
• Four fully achromatic DIN objective lenses: 4x, 10x, 40x and 100x immersion
• Built-in adjustable halogen lower illumination
• NA 1. 25 Abbe condenser with iris diaphragm
• Fully mechanical stage with dual-axis control
• All-metal construction
• 2-year warranty
• Model number: 44132-CGL

Specifications

Optics

• Type of microscope: Compound
• Magnification range: 40x to 2000x
• Magnifications: 40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x
• Eyepieces magnification: (1) 10x and (1) 20x
• Eyepiece diameter: 23. 2mm (0. 91-inch)
• Objective type: Refractive
• Objective standard: DIN
• Objectives magnification: (4) 4x, 10x, 40x, 100x immersion, all achromatic
• Objective thread: 4/5" x 1/36"
• Nosepiece: Quadruple, rotational

Head and focus

• Head: Trinocular with 360 rotatable 45 incline and interpupillary distance adjustability

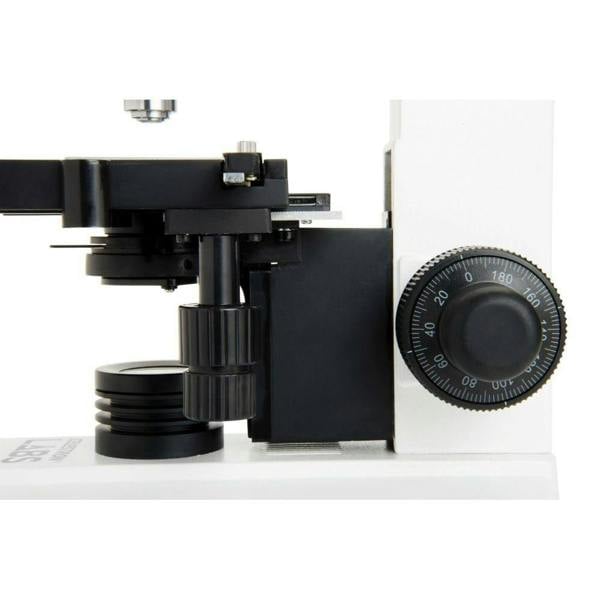

• Focus type: Coaxial coarse and fine focus (individual dials)
• Focus travel per rotation: 0. 2mm (0. 0078")

Illumination and build

• Illumination type: Halogen
• Stage: Fully mechanical
• Weight: 6. 50kg

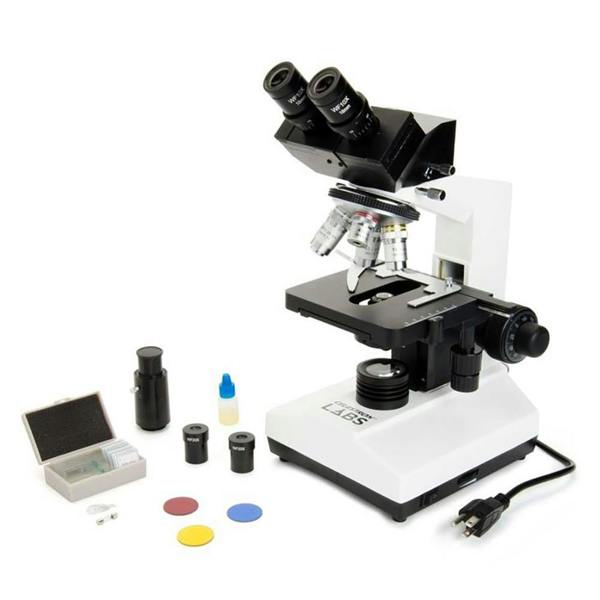

In the box

• Trinocular adapter tube
• 10 prepared slides
• 3 colour filters: blue, white opaque and green
• Immersion oil

Support & warranty

2-year warranty.

Rackhams Reference : JZ4AH9I9TQ
