Celestron PentaView LCD Digital Microscope

For shared viewing and straightforward image capture, the Celestron PentaView LCD Digital Microscope brings together a 40x to 600x magnification range, a 4. 3-inch TFT full-colour touchscreen and adjustable LED illumination in one professional-level microscope. Its 5MP CMOS sensor and included 4GB SD card allow photos and video to be recorded directly, while the 180 rotatable screen makes it easier to view specimens from different positions or present them to a group.

Built for slide work in schools, laboratories and scientific study, this LCD microscope uses five fully achromatic objective lenses and a fully mechanical stage for precise specimen handling. Coarse and fine focus controls, a filter wheel/diaphragm, and top and bottom LED illumination give clear control over setup and viewing. AV/TV output is also included for display on a television or projector, and the microscope supports optional battery operation as well as mains power via the supplied AC adapter.

Key features

• Magnification range: 40x to 600x, or up to 2400x with digital zoom

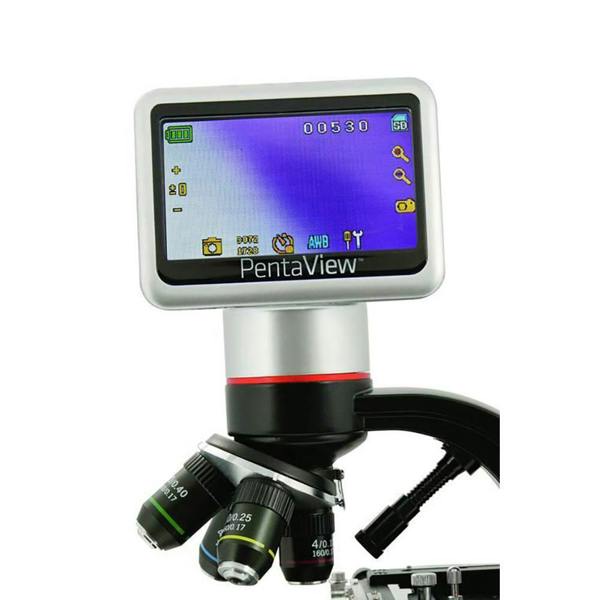

• 4. 3-inch TFT full-colour touchscreen LCD
• 5 fully achromatic objective lenses: 4x, 10x, 20x, 40x and 60x
• 5MP CMOS sensor for capturing photos and video
• Top and bottom adjustable LED illumination
• 180 rotatable LCD screen

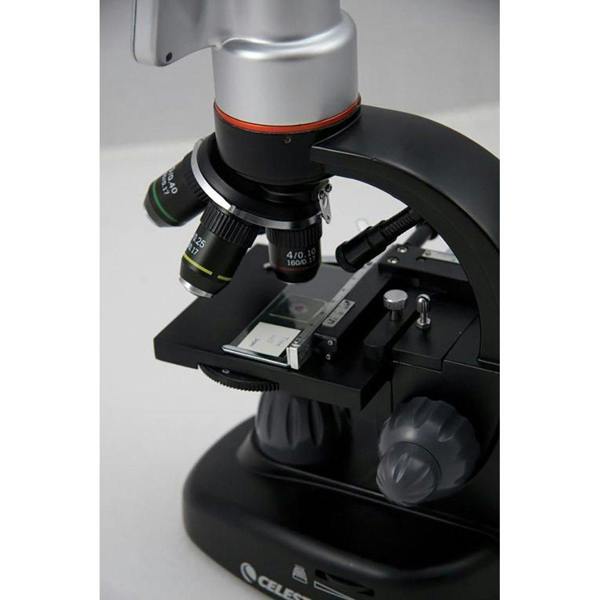

• Fully mechanical stage
• AV/TV output included
• Model number: 44348-CGL

Specifications

Optics

• Magnification: 40x to 600x
• Digital magnification: 2400x
• Objective lenses: 4x, 10x, 20x, 40x, 60x
• Illumination: top and bottom adjustable LED
• Stage type: fully mechanical stage
• Focus: coarse and fine focus knobs
• Filter wheel/diaphragm: yes

Imaging

• Screen: 4. 3-inch TFT full-colour touch screen
• Screen rotation: 180
• Sensor: 5MP CMOS
• Storage: SD card slot
• Included memory card: 4GB SD card
• Supported memory capacity: up to 32GB
• Outputs: AV/TV

Build

• Weight: 4. 54kg
• Power: optional battery mode or mains AC adapter

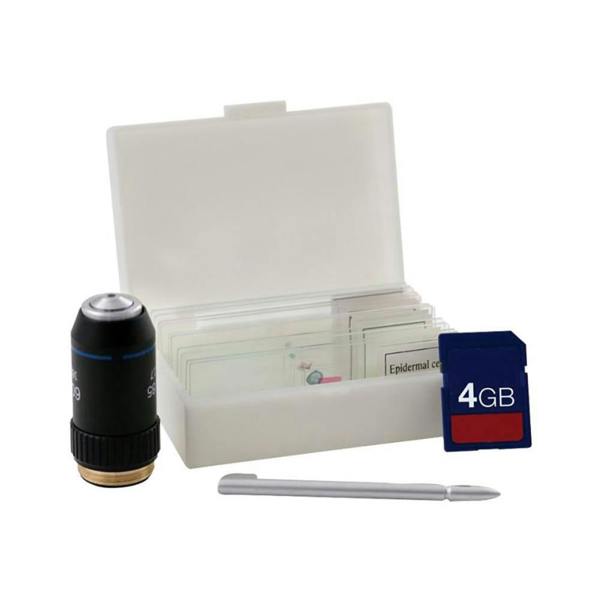

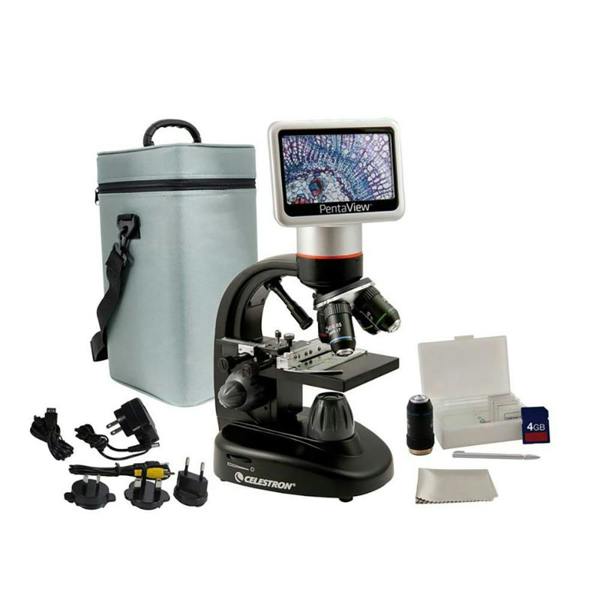

In the box

• 4GB SD card
• 10 prepared slides
• Hard carrying case
• Dust cover
• Touch pen
• USB cable
• AV cable
• AC adapter

Support & warranty

• 2-year warranty

Rackhams Reference : MRFIIUAKMN
